1.6.1.2.2.2. Adjust paper format in 2D view

Select the desired format in the list field under Paper formats (either A0 to A4 for DIN or A to E for ANSI)[64]

Select paper format

Select paper format

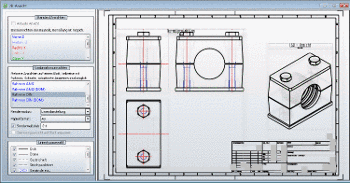

Paper format A3 -> Default scaling 2:1

Paper format A3 -> Default scaling 2:1

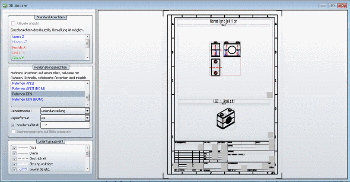

Paper format A4 -> Default scaling 1:2

Paper format A4 -> Default scaling 1:2

-> Scaling is adjusted automatically. As described under Section 1.6.1.2.2.1, “ Scale, position sketch elements in 2D view”, you may change it.



[64] Default values for the paper formats are specified in the configuration file. See Section 7.11, “Docking window "2D derivation " - Create your own combination views (*.dw) ” in eCATALOG 3Dfindit.
