3.1.9.4.4.2. Settings

In order to create the 3D PDF data sheet, a layout template must be defined. This contains information on how the data should be arranged on the PDF.

[Note]Note

You can use a standard template or your own template created your own template the company's your own template.

You can create your own template yourself using PARTtemplateDesigner or have it professionally created by CANVAS, the marketing agency of CADENAS.

The CADENAS standard template does not include a 2D derivation, for example. It is however possible at all times to create templates with 2D derivation.

The templates are provided with standard text [Standard text], standard number [Standard number], preview image, U3D image (interactive 3D view)[96] technical previews, 2D derivations, table values, etc. are filled in.

Adobe Acrobat Reader Version 8.x is recommended when using 3D functionality.

All displays correspond to the table row chosen during export.

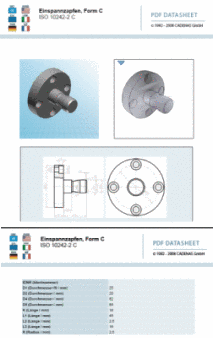

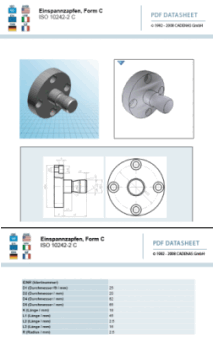

CADENAS standard template

CADENAS standard template

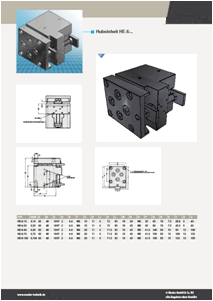

Company-specific template - Example 1

Company-specific template - Example 1

Company specific-template - Example 2

Company specific-template - Example 2

In the PDF data sheet, the Shaded display [Shaded view] setting can also be selected for the 2D derivation. The creation is much faster and since in most cases no real line representation is required, this is a good alternative.[97]

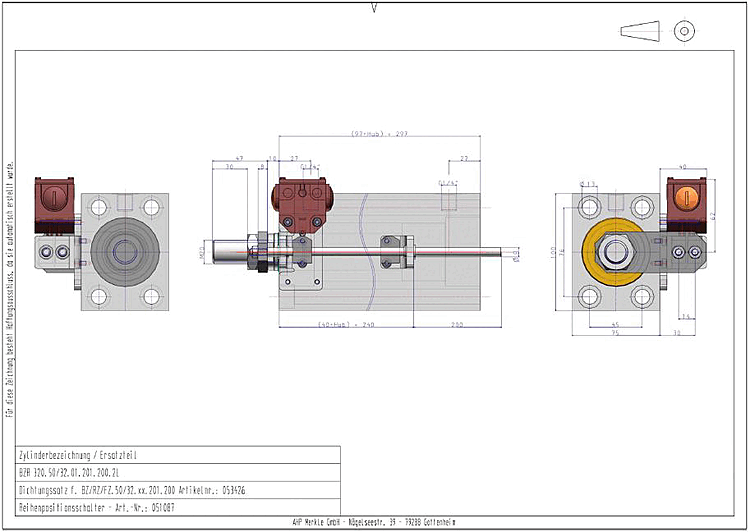

Template specific to the company - Shaded view

Template specific to the company - Shaded view

You can display the Windows user name and the mass of the part/assembly in the PDF data sheet. The mass declaration is important among others, in order to be able to calculate the carrying charge. The user name is interesting for company internal data sheets e.g. at incoming orders, when the data sheet is enclosed to the order.

  1. Call up the export format in PARTdataManager via the PDF Datasheet icon icon.

    -> The Export in PDF Datasheet format dialog box opens on the PDF export options tab page.

  2. Select template

    The default selection Use default template [Use default-template] is activated.

    [Note]Note

    Leave the activation alone. For all standard cases the setting is correct.

    If company standard templates are available for the currently selected catalog, you can select these in the Level [Plane] list box, otherwise select CADENAS.

    Derivation view Select

    [Note]Note

    This setting is only relevant if the template stipulates the display of a 2D derivation.

    • Overwrite derivation view from template:

      • If the option is set, the setting in the list field under Derivation view is used.

      • If the option is not set, the default from the template is used regardless of the setting under Derivation view [Derivation view]. However, if no default is set in the template, the setting in the list field under Derivation view [Derivation view] is also used.

    • Derivation view:

      • 2D derivation

      • 2D-Derivation

      • Shaded View

    • Display data sheet after export [Open generated datasheet] (optional)

  3. Use Browse ... to set the path to the target file [Destination file].

  4. Table tab page -> Remove columns from table [Remove column from table]:

    On the Table tab page, you can remove columns from the table for the data sheet view. Activate the checkbox for the columns not to be displayed.

    • Optionally, you can adjust the export accuracy [Export accuracy] on the Export options tab page.

      Select the desired accuracy from the list field:

      • Currently set [Current selection]

      • Low

      • Medium

      • High

      • Very high

      The component is recalculated to the set level of detail before export.

      The function is identical to the detailing option in PARTdataManager, but here only temporarily for the export.



    [96] Adobe Acrobat Reader version 8.x or higher is recommended to use the 3D functionality.

    [97] As of 9.03 SP2
