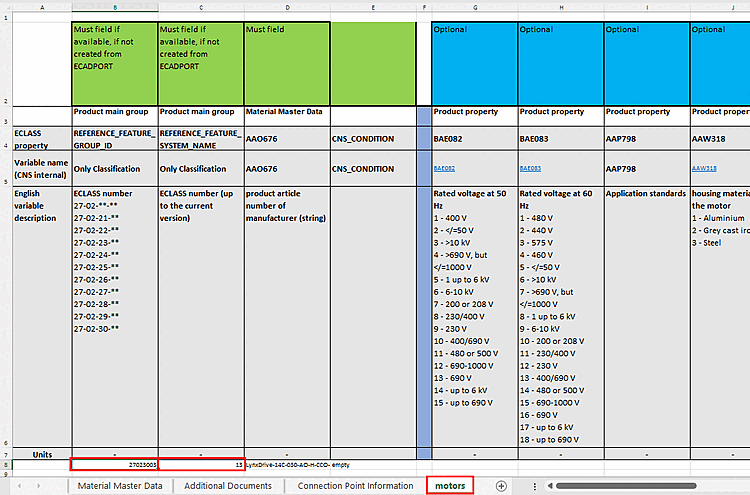

The corresponding version must be entered in the Excel file, in the corresponding product-specific data sheet (in the figure below "motors" as an example), under REFERENCE_FEATURE_SYSTEM_NAME (column C). The following figure shows "13".

Note Make sure that the corresponding ECLASS version is installed.

In the Excel file, in the corresponding product-specific data sheet (in the figure below "motors" as an example), under REFERENCE_FEATURE_GROUP_ID (column B), the corresponding class according to which the classification is to be made must be entered. The following figure shows "27023003".

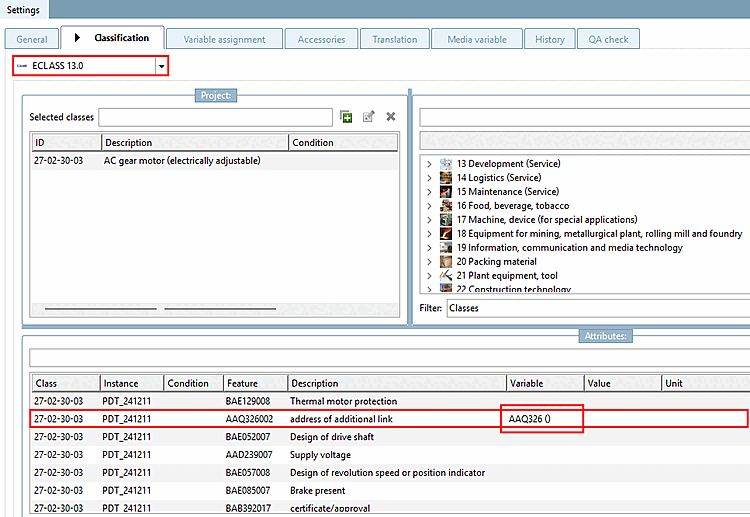

Class 27-02-30-03 contains various features such as BAE129008, AAQ326002, BAE052007, etc.

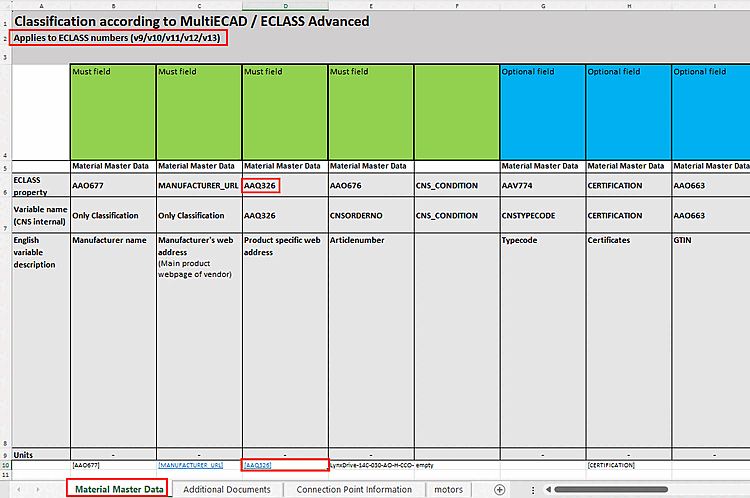

-> The Material Master Data is then searched for existing entries in the classification process. In this example, there is an entry for AAQ326.
