3.1.15.3.3.  Obsolete standard part/manufacturer part

If this option has been activated by administration[a], obsolete standard and supplier parts are marked in the index tree:

Obsolete standard without substitution

Obsolete standard replaced by minimum one other part family

Obsolete standard replaced by minimum one other part family and the obsolete standard is locked

Symbols - Index tree

Symbols - Index tree

[a] You can find information on configuration under Section 1.7.3.2, “ replace_std.cfg ” in ENTERPRISE 3Dfindit (Professional) - Administration.

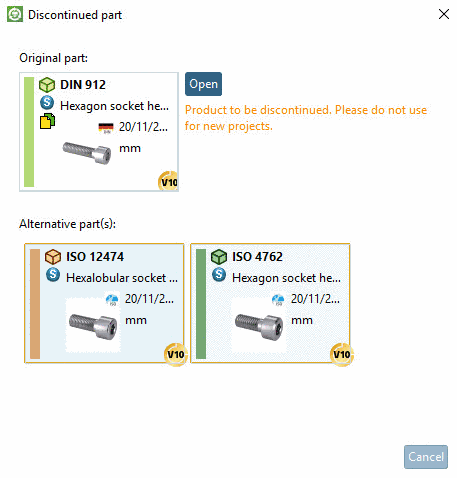

The Detached standard [Obsolete standard part/manufacturer part] /purchased part window then appears when you call it up.

The valid standard and purchased parts are listed here, which can be loaded instead of the original selection.
