5.5.2.2.  3D search from search result

Call up the 3D search from the context menu of any part (regardless of whether it is an in-house part or a manufacturer part).

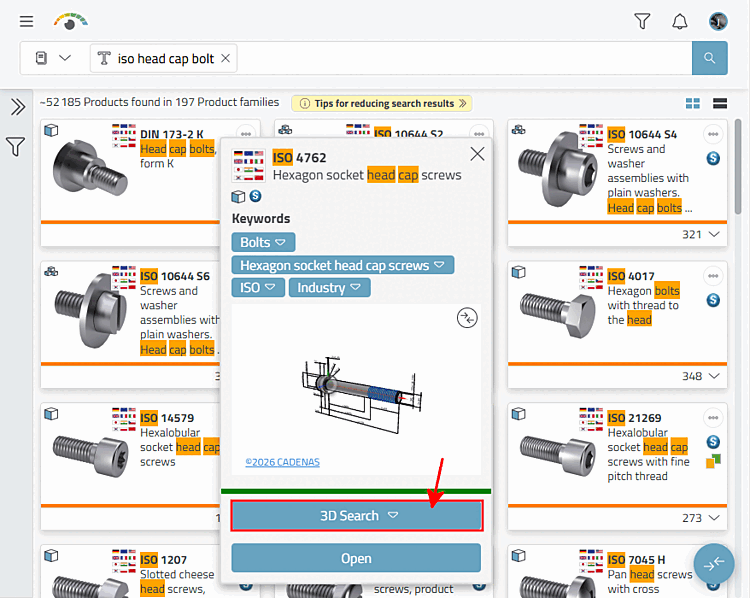

  1. Initial situation: A number of products are displayed that you have determined using any method. In the example below, a search was performed for "iso head cap bolt".

  2. Open click on the context menu.

  3. Click on the 3D search [3D Search] button.

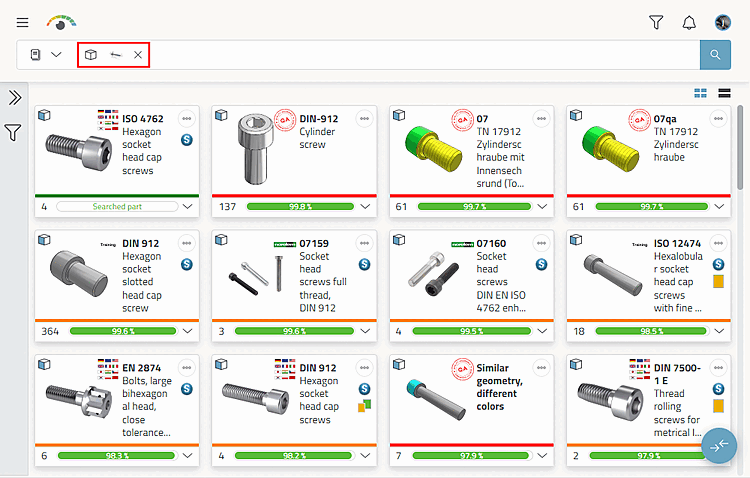

    -> The results are displayed.

    -> All previously selected search methods have been deleted. The executed 3D search [3D Search] is now displayed in the search input field.

  4. Optionally, you can now use the facet filter, for example, on the basis of the search results.
