Pool default location

CADENAS_POOL default for clean install is PRODUCT_DATA\POOL.

Important If the pool was below CADENAS_DATA in V11 this may not work in all cases in V12.[a]

[a] #146789

Installation notes: Details on the PARTsolutions Enterprise installation can be found under Section 4.5, “PARTsolutions Enterprise Installation ” in Installation Manual.

Version update within V12: Simply execute the MSI-Setup of the update version.

Note Exactly in the same way, also a downgrade could be performed.

Server-Client-Installation

The server already has to be set up and running.

Server, client and even CAD version have to be the same.^[78]

Not only the CAD interface has to be fully installed on the server, but the CAD itself, too.

Update V11 -> V12

An existing V11 installation and an installation with the V12 PARTsolutions Consulting Installer access the same environment variables and paths. In order to avoid mutual influence, best uninstall an existing V11-Installation first.

Note The existing V11 SITESETUP cannot be taken from V12 without adjustments. (For example, UI commands and the mechanism of showing or hiding buttons changed.)

If parallel operation is intended - nevertheless, please absolutely regard the notes under Section 8, “Parallel use of V11 and V12”.

Installation cadenas_threads.cip

Please install the current cadenas_threads.cip.

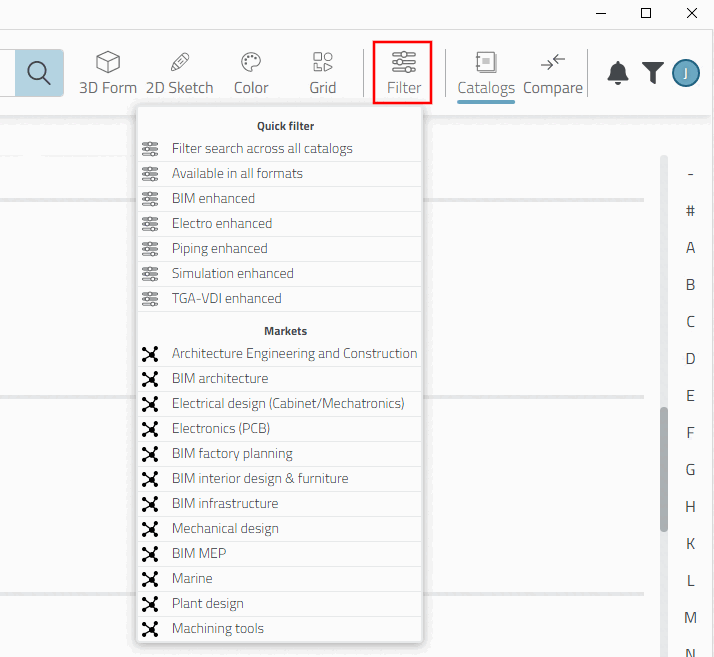

Under the Filter function different Markets are defined. Otherwise they will not be visible. Furthermore other Quick filters are available.

Always when a new cadenas_threads.cip file is available, it will be offered during a Catalog update Online. Otherwise the cadenas_threads.cip file can be explicitly installed via Catalog update Offline (accessible under \\store\cip_v9\catalogs\_CNS\Threads)
