12.2.2.5. Add dimensioning in PARTdataManager before the export

Before you export a 2D derivation into the CAD system, you can add a dimensioning.

Hereto proceed as follows:

  1. Select a standard view such as Front +Z.

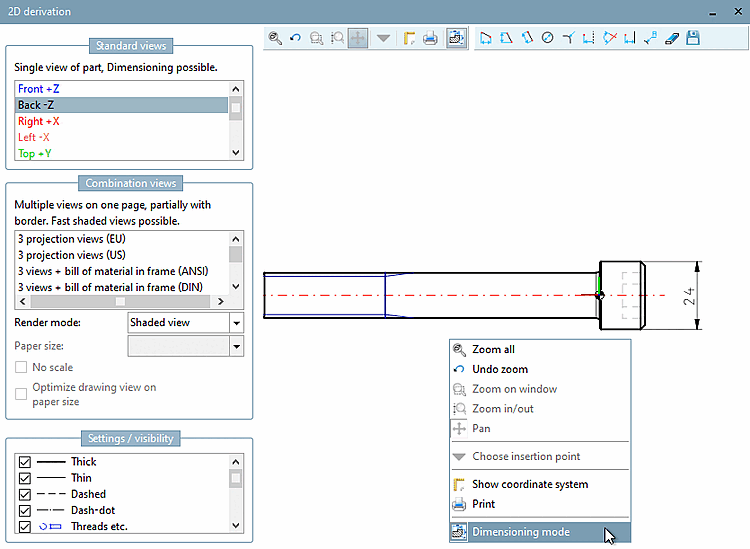

  2. Execute the Dimensioning mode command in the context menu of the view.

    [Note]Note

    A detailed description of the functions in dimensioning mode you can find under Section 12.2.2.5, “Add dimensioning in PARTdataManager before the export ”.

  3. Set the desired dimensioning:

  4. Click on Transfer to CAD [Export to CAD] .

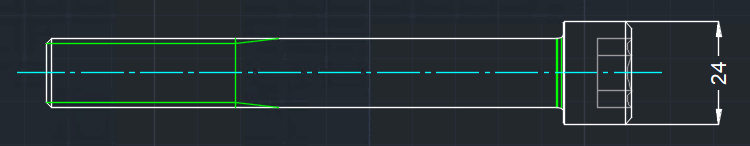

  5. The part is transferred to CAD with dimensioning.
