3.2.2.  Definition of the catalog company key (license key)

New catalogs must be created on the SVN server. The company key [Company key] (license key) is also defined in the CNS2009*CATALOGS*<CATALOGNAME> schema.

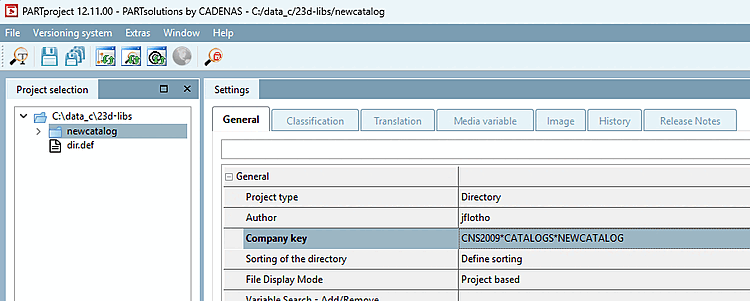

Company key

Company key

This is generally the responsibility of the respective project manager. The following rules must be observed:

  • The license key begins with CNS2009*CATALOGS*

    [Note]Note

    Older catalogs still may have "CNS2005" inserted in some places, which is not a problem.

  • The following catalog name is completely in capital letters. However, numbers must be selected here without separators ("-"/"_") and special characters.

[Tip]Tip

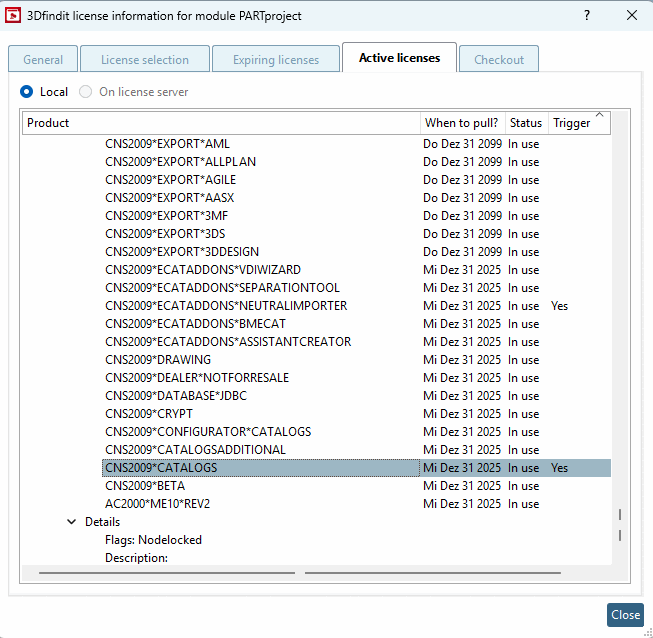

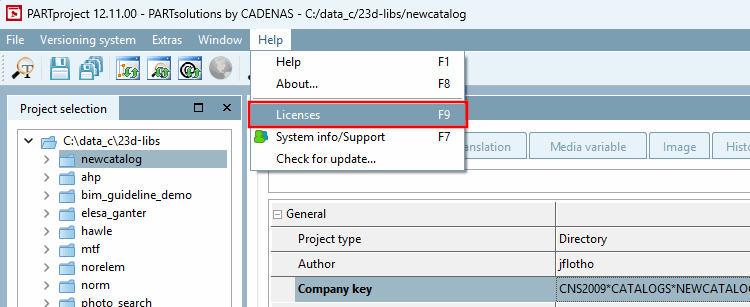

If you call up the Licenses command in the active module in the Help menu [Help], the 3Dfindit license information opens.

Here you can see which licenses are currently in use, e.g. entry CNS2009*CATALOGS or CNS2009*CATALOGSADDITIONAL.

Catalog name

The catalog name [Catalog name] is also associated with the license key [License key]. This can be used for name extensions. Spaces and upper and lower case letters can also be used.

The catalog designation [Catalog name] is also displayed in the part information [Part information].

The catalog name [Catalog name] can be translated if necessary. See Section 5.8.2.1.14, “ Translation ”.

The catalog name [Catalog name] can also be used for attribute mapping [Attribute mapping]. See Section 2.2.8.5.1, “Transfer of the catalog name ” in ENTERPRISE 3Dfindit (Professional) - Administration
