6.3.5.1.  Add data record to link database

/ To the link database add [Add to link database]

Prerequisite

  • In order for the button in 3Dfindit , must be displayed in erpcustom.cfg, block WEB_ACTIONS, the key with the Value ADD2DB_ACTION enabled be.

Function

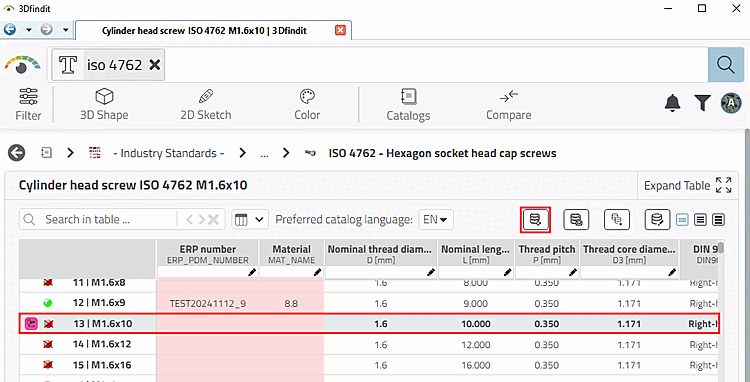

  1. Select a line (empty line or one with an existing ERP number to create another line with a different material).

  2. Click on the button.

    -> The New Ident Number [new ident-no.] dialog box opens.

    The input fields can be extended as required, so they do not necessarily look like the example here.[82]

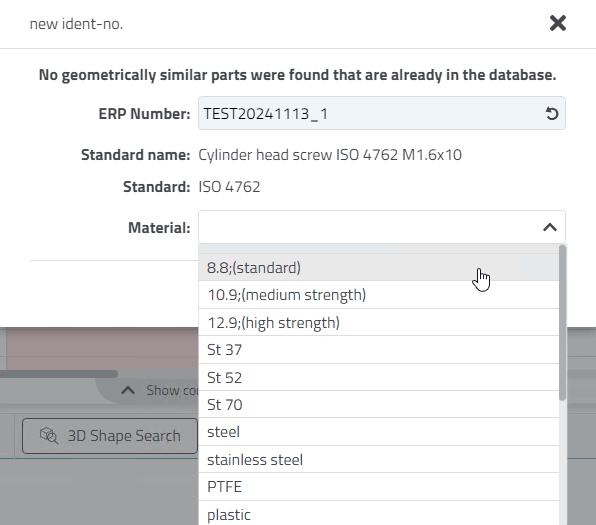

    Simple example of the dialog

    Simple example of the dialog

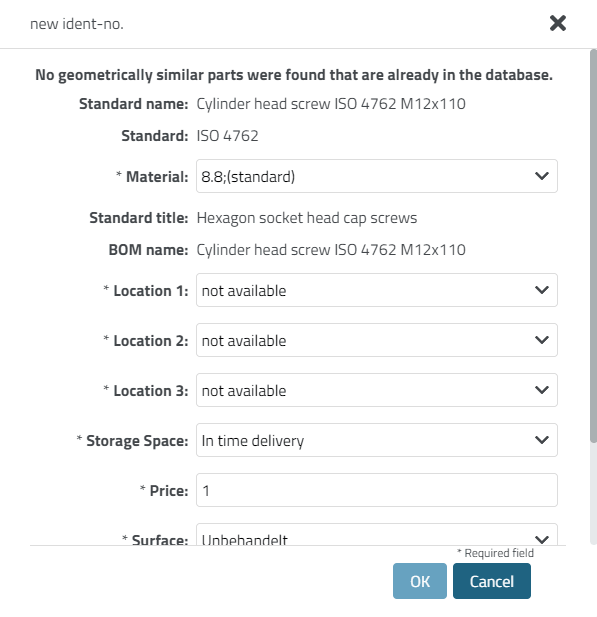

    More complex example of dialog

    More complex example of dialog

  3. Make the desired entries and confirm with OK.

    -> ERP number and material have been entered.

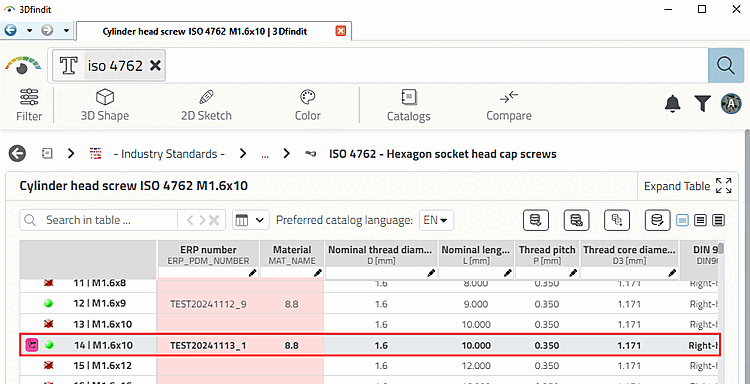

    ERP number and material entered

    ERP number and material entered



[82] Administrative information on this can be found in the Section 4.11, “ Design "New ident number " dialog box - erpcustom.cfg -> Block [USERDIALOG] ”.
