9.2. Download 2D/3D CAD-Formate

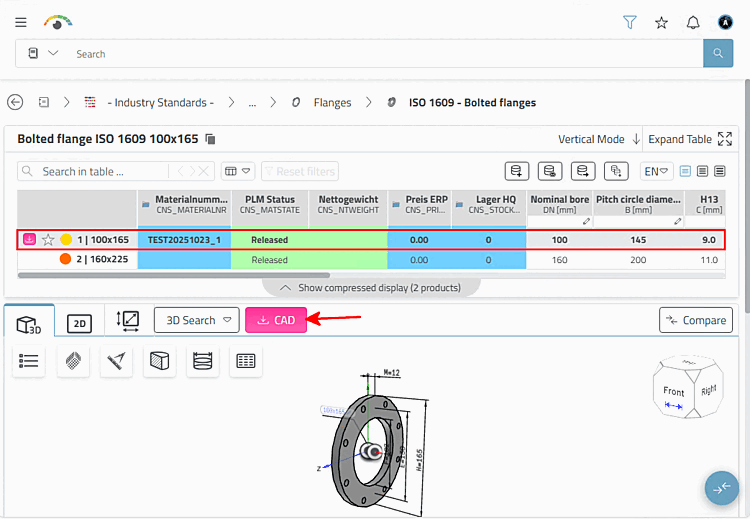

  1. Click on CAD.

    -> The CAD format selection dialog box opens.

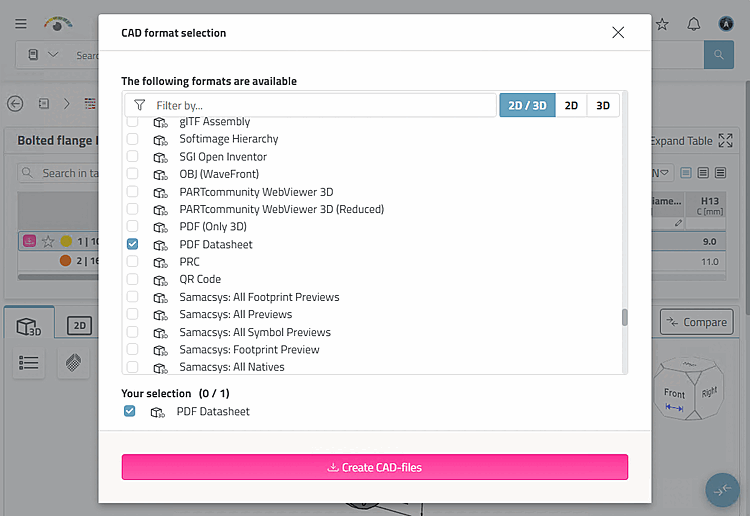

    CAD format selection

    CAD format selection

  2. Select the desired format from the list.

    (The selection corresponds to the administrative preselection. Only one selection is possible (plus optional PDF datasheet).[36]

  3. Click on Create CAD files [Create CAD-files].

    -> The Activities dialog box opens and the generated part is offered for download.

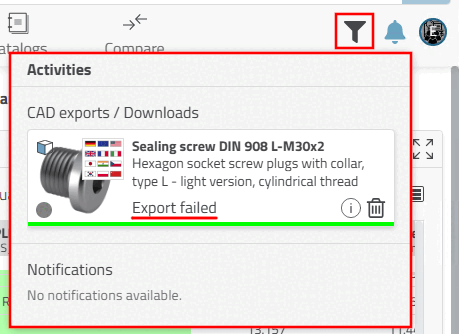

    If the configuration settings are incorrect, Fetch failed appears.

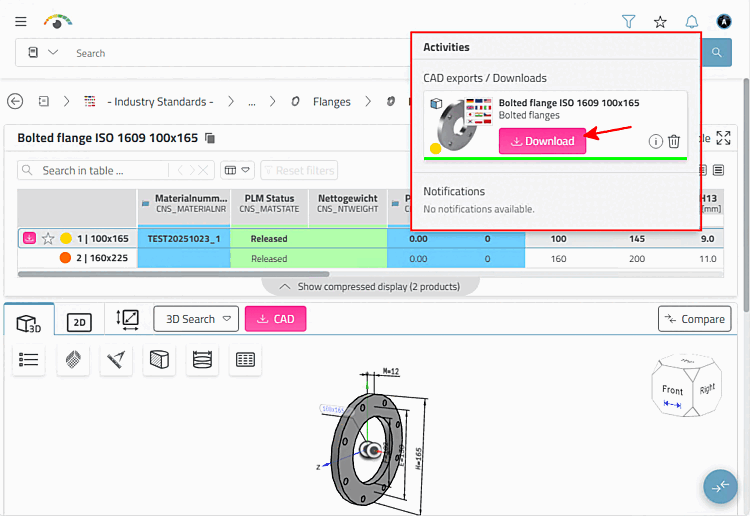

  4. In the Activities dialog box, click on the Download.

    -> The downloaded part is displayed in an Explorer window. Click Open file to jump to the download directory.



[36] You can find details on administrative presettings under Section 4.21.5, “Set CAD format download (pappserver.cfg) ” in ENTERPRISE 3Dfindit (Professional) - Administration.
