7.13.3.4. Create template

  1. Initial situation: The configuration must be completely set up.

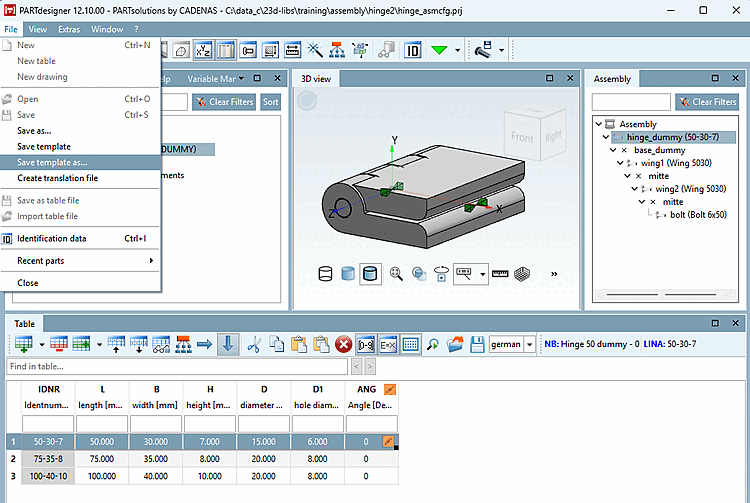

    Configuration set up

    Configuration set up

  2. In the File menu, click on Save template as.... [Save template as...]

    -> The corresponding Explorer window opens.

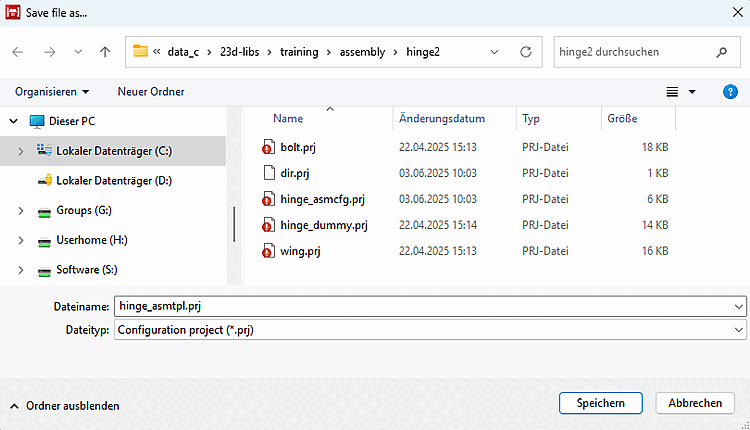

    Save file as...

    Save file as...

  3. Save the template and ideally add a standardized file name extension to the file name (as shown here in the example "hinge_asmtpl.prj").

    -> The Save template project [Save Template project] dialog box opens.

    -> The template file (.sbl) [Template file (.sbl)] field is already filled in.

  4. Fill in the standard title [Standard title] and standard number [Standard number] fields and confirm with OK.

    Save template project [Save Template project]

    Save template project [Save Template project]
