1.4.6. Docking window "3D view"
1.4.6.6. Component designation (standard designation [NB ] / parts list designation [LINA ])
Prev  Next

1.4.6.6. Component designation (standard designation [NB ] / parts list designation [LINA ])

The component designation can be found as (standard designation [Standard name] [NB ] and parts list designation [BOM name] [LINA ]):

  • The standard designation [Standard name] [NB] is displayed in the 3D window.[57]

  • The parts list designation [BOM name] [LINA ] is displayed above the table and in the parts list [Bill of material] docking window.[58]In contrast to the standard designation [Standard name], a functional feature [Function attribute] (such as the lift position/extend position) is not part of the designation for LINA.

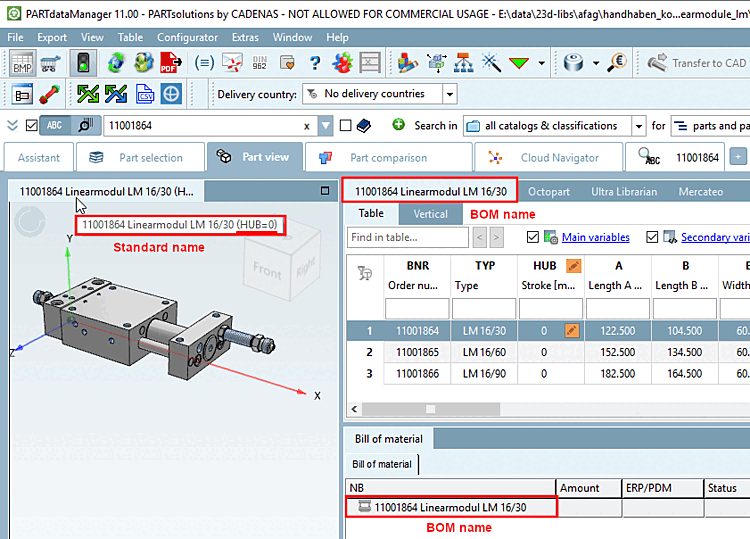

Component designation: 3D view -> Standard designation [Standard name] [NB] | Table -> Parts list designation [BOM name] [LINA ] | Docking window "Parts list [Bill of material] " -> "Parts list designation [BOM name] " [LINA ]

Component designation: 3D view -> Standard designation [Standard name] [NB] | Table -> Parts list designation [BOM name] [LINA ] | Docking window "Parts list [Bill of material] " -> "Parts list designation [BOM name] " [LINA ]



[57] It is displayed in accordance with the catalog manufacturer's specifications.

[58] It is displayed in accordance with the catalog manufacturer's specifications.
