5.12.3.1. Classification (CNS)

5.12.3.1.3. Class "CNSERPBASE" -> Characteristic "CNS_RAWMATERIAL "

Semi-finished products can be classified as such.^[42]

Example of semi finished product

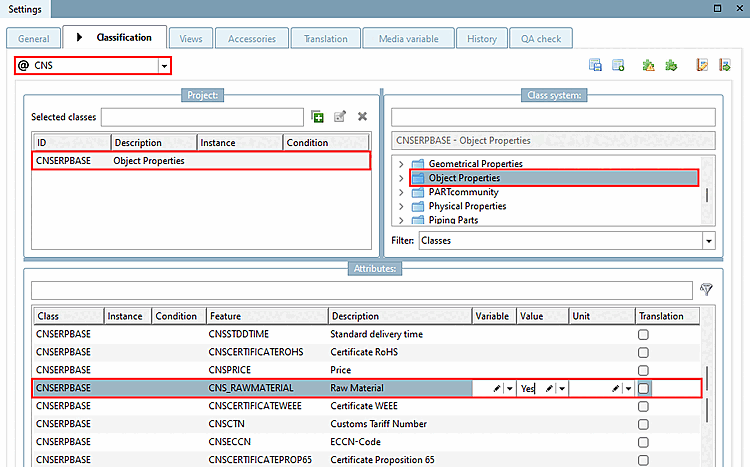

Under Settings -> Tabbed page Classification > List field selection @CNS > Class Object Properties, the feature CNS_RAWMATERIAL can be set to Yes.

	Note
	Within workflows with PDM systems, semi-finished products are differently handled, e.g. not checked in into PDM systems. Furthermore semi-finished products are no standard parts, which affects the write protection, meaning changeability. The assignment of the correct type identification [Identification type] is also important in connection with semi-finished products. See Section 7.8.14, “ Identification type ”. Semi-finished part - Dimension attribute pinned For PARTsolutions with ERP integration, the behavior of fields with dimension features can be controlled administratively. See Section 4.16.2, “ Pin dimension feature on/off / plinkcommon.cfg -> Block [PARTdataManager] -> Key "LockDimRange" ” in ENTERPRISE 3Dfindit (Professional) - Administration.

^[42]From V11 the declaration in ifacecommon.cfg is omitted. See Section 2.2.12.7, “ Block [RAWMATERIALS] ” in ENTERPRISE 3Dfindit (Professional) - Administration
