2.4. Opening the interface

Executing a command in the ENTERPRISE 3Dfindit menu in the CAD system starts the desired application.

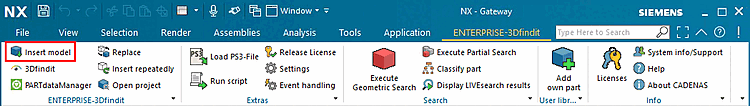

Insert model (the illustration shows NX as an example)

Insert model (the illustration shows NX as an example)

-> The corresponding button is now active in 3Dfindit.

[Note]Note

The button remains active regardless of whether it is subsequently called up from the CAD menu or you switch directly to 3Dfindit / PARTdataManager.[2]



[2] If a "valid" model is open in the CAD system, the button is automatically active in the application.
