Zoom all

The display is adjusted in the center of the window.

Magnifying glass

The magnifying glass enables viewing parts in detail.

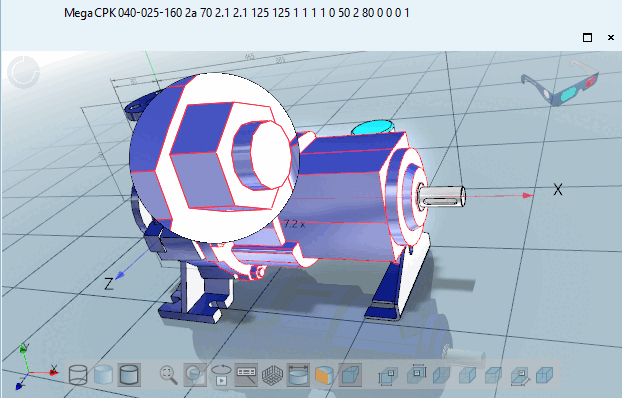

Magnifying glass switched on

	Note
	The rules for the mouse function in the 3D window apply to the magnifying glass function as well. For example when holding down the left and right mouse buttons you can move the magnifying glass over the part. The mouse wheel zooms inside the magnifying glass.

Animation

The animation (rotate part) can be turned on/off.

	Note
	By clicking anywhere outside of the toolbar, the animation is also turned off.

Show texts and classes

The submenu has the following items:

Text visible

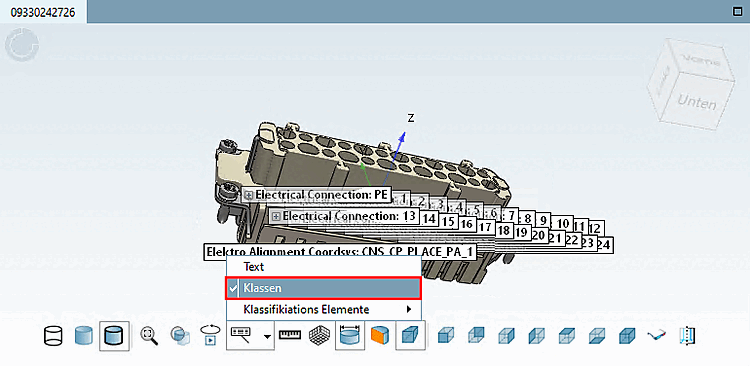

Classes visible

Classes and auxiliary geometries are not displayed together. If necessary, the other function is switched off.

Show measuring grid

See Section 1.4.6.3, “ Measuring grid ”.

Show dimensions [Show Dimensionings]

See Section 1.4.6.4, “ Show Dimensionings ”.

Define section cut...

See ???.

Perspective projection, Front view (Z), Rear view (-Z), Left view (-X), Right view (X), Top view (Y), Bottom view (-Y), Isometric view

If dimensions have been created for a view by the manufacturer and Show dimensions [Show Dimensionings] is activated, an icon with dimension lines is displayed. See Section 1.4.6.4, “ Show Dimensionings ” for more information.

Red/cyan

Part depiction in plastic 3D preview. The three-dimensional effect only takes place when using red-cyan glasses!

The selected part is displayed in alignment to enhance the three-dimensional effect. The background is automatically darkened. The red/cyan effect option can be used regardless of the display mode (Lines [Lines], Hidden edges [Hidden lines], Shaded, etc.).

Show auxiliary geometry

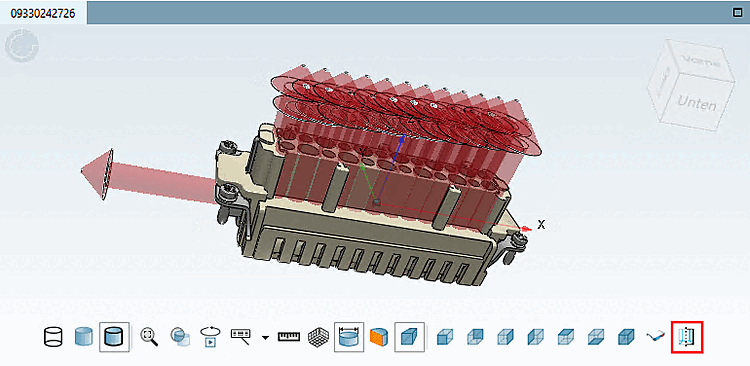

Auxiliary geometry visible

Classes and auxiliary geometries are not displayed together. If necessary, the other function is switched off.
