Dimensioning views can be provided in 3 different file formats:
With PARTdesigner you can create dimensioning views [Dimensioning views] from the standard views, generate the dimensioning text according to various specifications and make various additional versions available for the PARTdataManager available.
Details on this can be found under Section 5.11.1, “ Create dimensioning views with PARTdesigner ”.
Dimensioning views are usually provided by the customer as DWG/DXF files. In PARTproject these can be imported and converted to .pra.
Details on this can be found under Section 5.11.2, “ Create and import/convert dimensioning views externally ”.

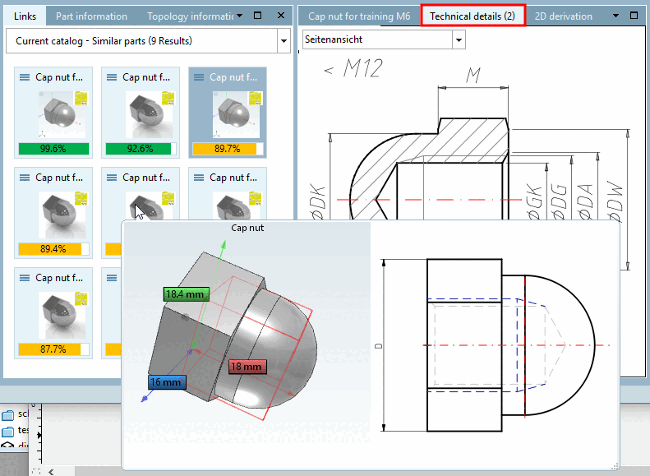

The corresponding views appear in the PARTdataManager in the Technical specifications [Technical details] docking window.
