4.14. Teamcenter-NX: "Component is Reference-Only"

With V12.8, the components of an assembly that were created with PARTsolutions can be marked as Component is Reference-Only.[39]

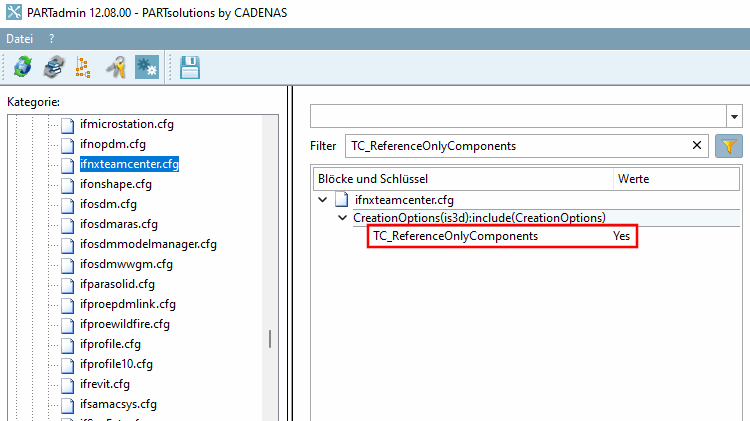

You can find the new key TC_ReferenceOnlyComponents (only works in the context of Teamcenter) at ifnxteamcenter.cfg.

Value range: 0/1, 0 is default

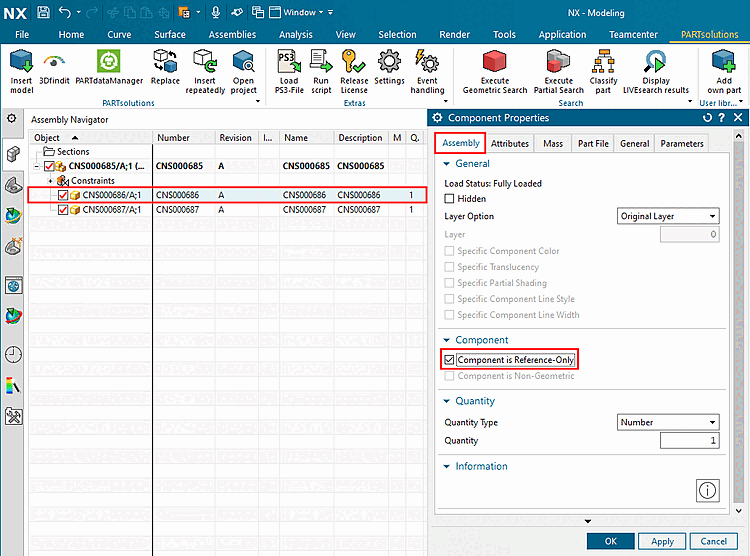

If 1 is set, the Component is Reference-Only option is activated in NX > Assembly Navigator > Selected Component > Properties context menu command > Component Properties > Component dialog.

Component is Reference-Only

Component is Reference-Only




[39] #158159
