To generate CAD models, please click on the CAD or Generate CAD MODEL button.

By default, the button is located above the preview.

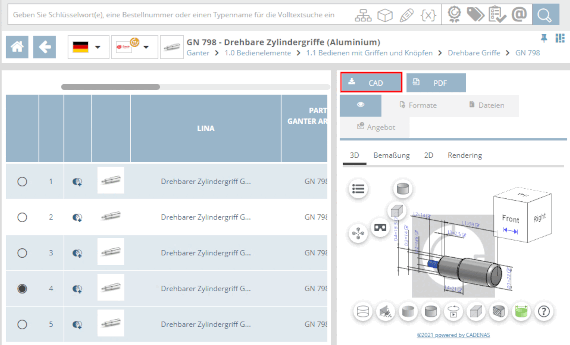

"CAD" button (example OEM portal)

Depending on the portal, it can also be located above the table.

"Generate CAD MODEL" button (example supplier portal)

	Note
	Before generation, the CAD formats and provision methods to be generated must have been determined. To do this, click on Formats. You can find more information on this at ???. If no formats have been defined yet, the format selection opens automatically.

After clicking on the button, generation starts immediately. Finished generated formats are displayed in the right-hand panel. You can find more information on this at ???.

Display of the generated parts in the download area for different methods of provision (example OEM portal)
