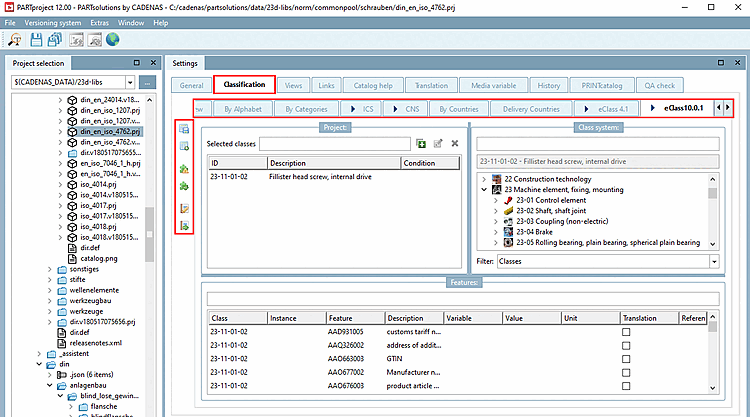

As classification is becoming increasingly important, all related functions have been combined under a separate Classification tab page.
All installed classifications such as By Alphabet, By Categories, By Countries, Delivery Countries, eClass, Standards, CNS, etc. can be found on their own tab pages below the Classification tab page.

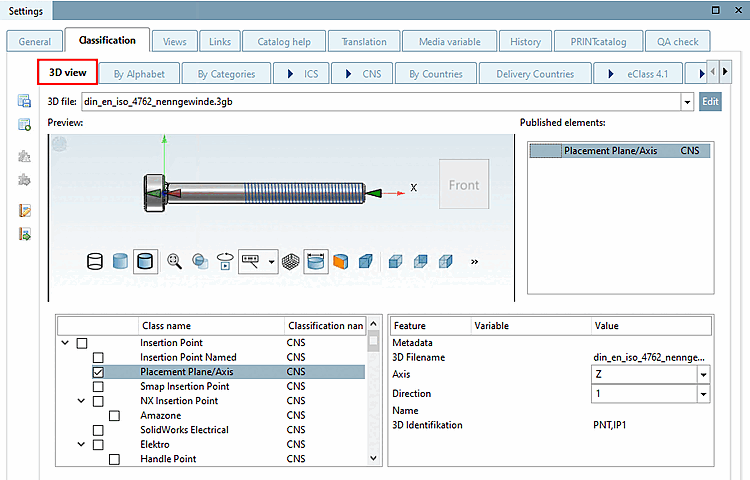

As the classification of connection points using published elements [Published elements] plays an important role, this area is given a central position on the 3D view tab page. Attachment points are displayed in the preview [Preview] and can be clicked and edited directly.

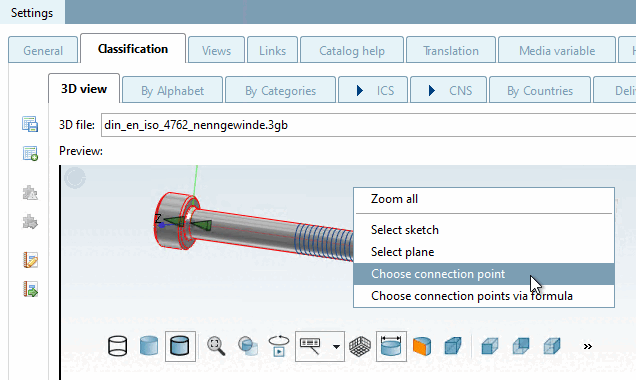

They can also be selected in the preview [Preview] using the context menu command Select connection point [Choose connection point].
On the left side, you can find the following additional functions:
Check classification with plugins (see Section 1.10.1.3.1.19, “Classifying: Use
of templates and plugins”)
Edit classification with plugin (see Section 1.10.1.3.1.19, “Classifying: Use
of templates and plugins”)
Manage templates (see Section 1.10.1.3.1.19, “Classifying: Use
of templates and plugins”)
Execute template (see Section 1.10.1.3.1.19, “Classifying: Use
of templates and plugins”)
