Set bitmap with condition (PDataMgr only)

Select the desired column (here in the example PRICE4).

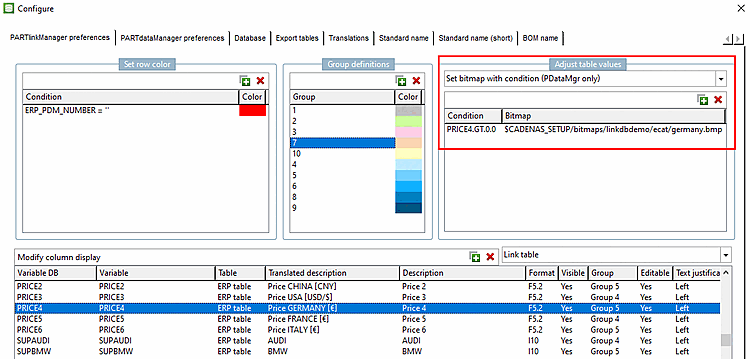

Under Customize table values [Adjust table values], select the Set bitmap with condition [Set bitmap with condition (PDataMgr only)] option in the list box (PDataMgr only) [Set bitmap with condition (PDataMgr only)].

Enter the condition [Condition] and then double-click under Bitmap to select the desired image.

Selection "PRICE4"

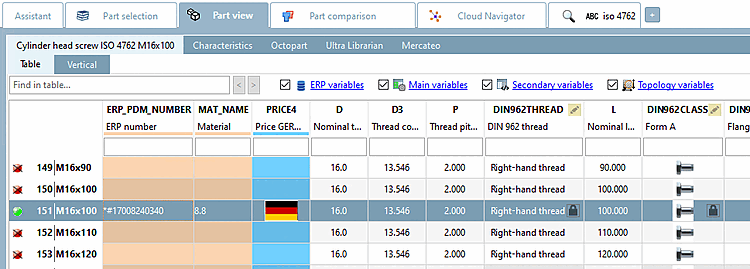

User: ecat, Role: Prices Germany

Set bitmap (PDataMgr only)

Select the desired column (in this example LOC1).

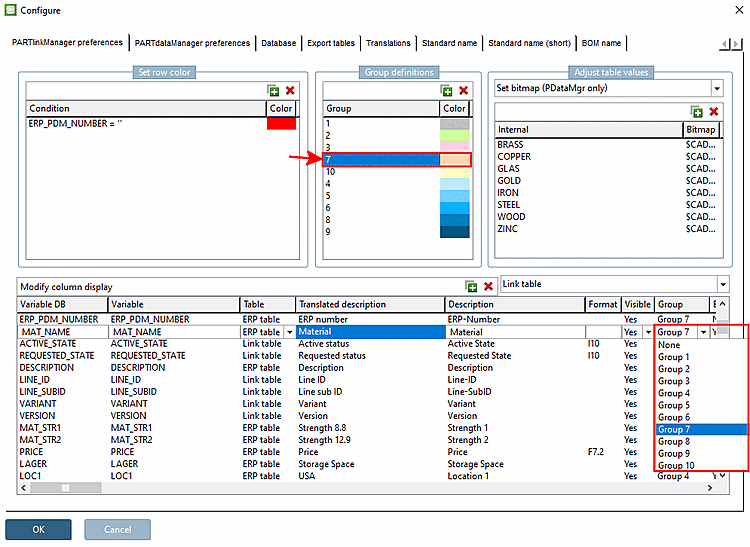

Select Customize table values [Adjust table values] -> Set bitmap (PDataMgr only)

Under Internal, enter the value at which the bitmap is to be displayed (here 'x' as an example) and double-click under Bitmap to select the desired image.

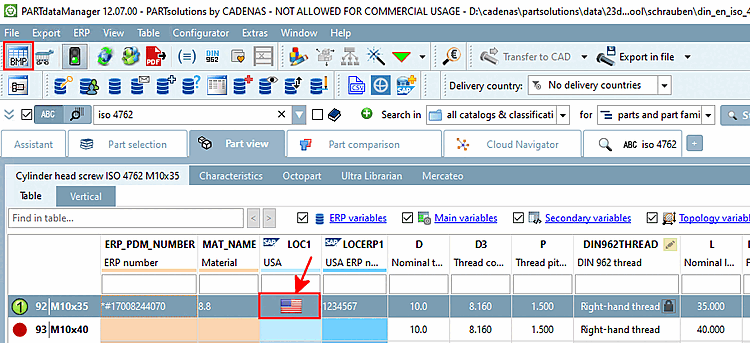

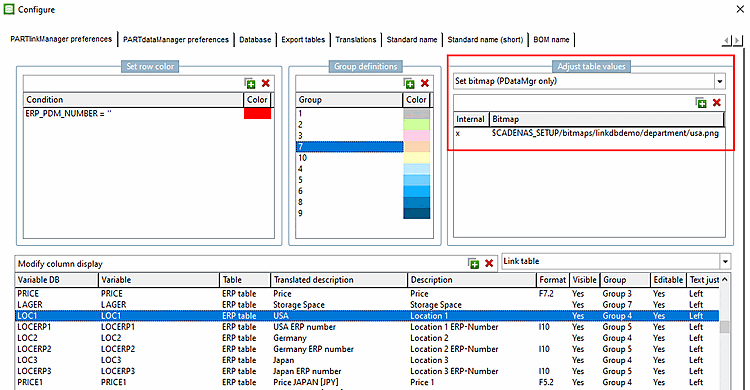

Selection "LOC1"

	Note

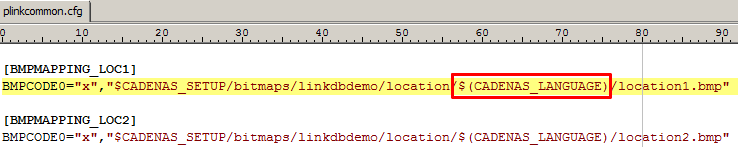

	If you want to $CADENAS_LANGUAGE then change the fixed language entry in the configuration file under %CADENAS%/setup_pldbdemo/plinkcommen.cfg -> BMPMAPPING_LOCx change the fixed language entry (e.g. german) to $(CADENAS_LANGUAGE). $CADENAS_LANGUAGE

User: location, Role: LOCRED1 - Independently of the chosen display language, always the appropriate graphic is shown.

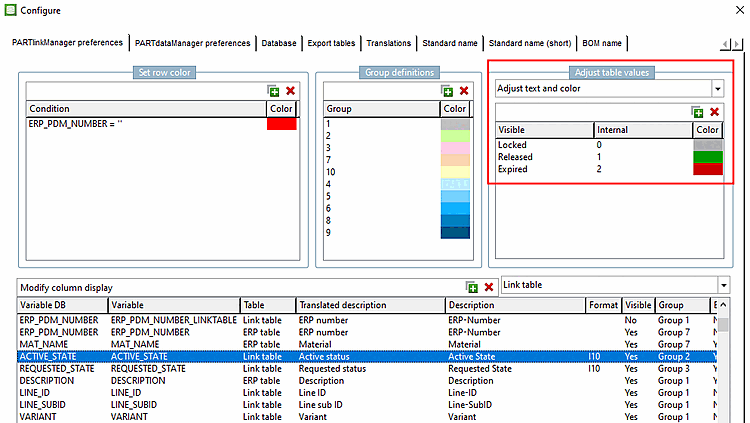

Adjust text and color

In the column "ACTIVE_STATE" different colors for entries can be found.

Selection "ACTIVE_STATE"

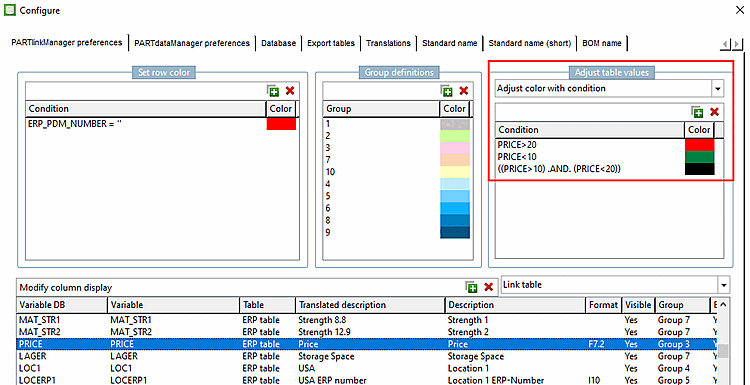

Adjust color with condition

In the "PRICE" column, the text color is displayed depending on conditions.

PRICE>20
PRICE<10
((PRICE>10) .AND. (PRICE<20))

Selection "PRICE"

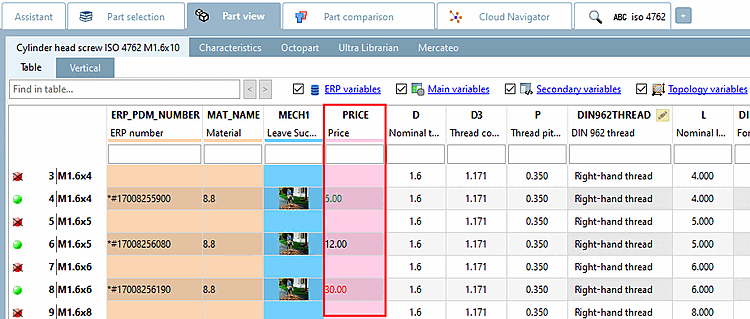

User: Mechanical; role: e.g. Leave Sucker BOOST 2010
