7.9.3.7.4.  Create circle tangent to 2 elements (circle/line/arc)

circle tangentially to 2 elements (Circle/Line/Arc): [Create circle tangent to 2 elements (circle/line/arc)] Tangential circle of lines, arcs and Create circles.

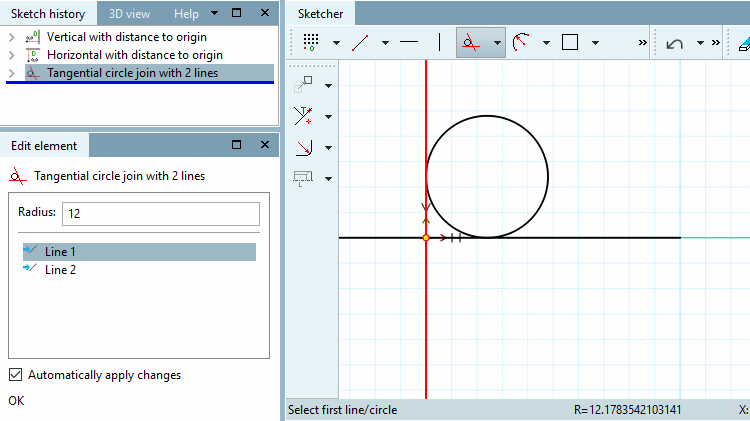

Example: Circle between coordinate axes

  1. Click first element being tangent to.

  2. Click second element being tangent to.

  3. Drag the circle with the cursor to the desired radius and fixate it by mouse click.

  4. If necessary, adjust the radius in the Edit element docking window.

Create circle tangent to 2 elements (circle/line/arc) [Create circle tangent to 2 elements (circle/line/arc)]

Create circle tangent to 2 elements (circle/line/arc) [Create circle tangent to 2 elements (circle/line/arc)]
