3.2.28. Creative Commons license for export formats

Depending on the manufacturer's specifications, the Creative Commons license is included in the project table.

In this way the license is present in all formats, which transfer parameters and thus is transferred to target systems like CAD, for example.

Procedure:

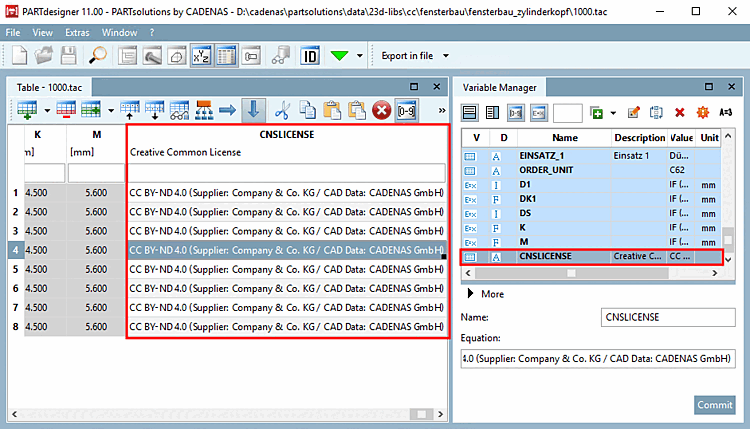

  1. Create a variable CNSLICENSE.

  2. In each table row, set an entry according to the following scheme:

    CC BY-ND 4.0 (Supplier: %supplier% / CAD Data: CADENAS GmbH)

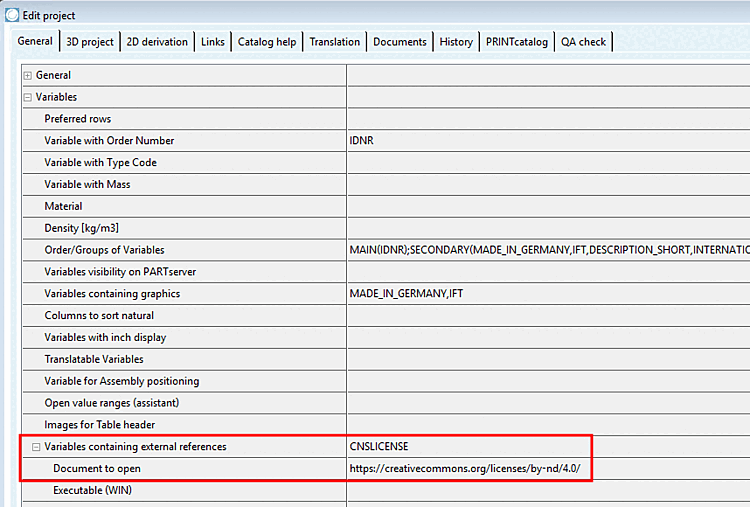

  3. Enter the variable name CNSLICENSE under Display project [Show project] -> General tab -> Variables -> Variables with executable program [Variables containing external references].

  4. Enter the following link under Document to open:

    https://creativecommons.org/licenses/by-nd/4.0/

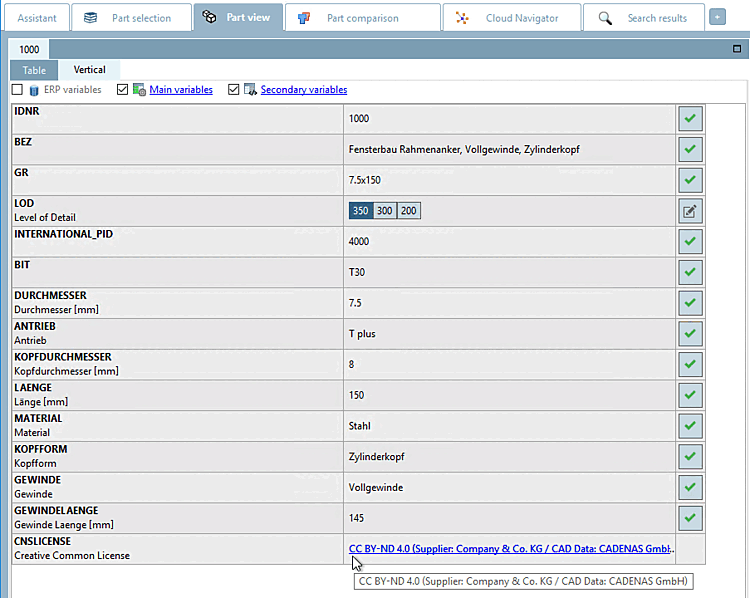

  5. Result in PARTdataManager:

[Note]Note

Always all projects of the whole catalog have to be set under CC. It is not possible to set only single projects under CC.

[Tip]Tip

Simply set the CNSLICENSE variable with the desired value using Edit projects in batch run [Batch process all tables in project].

See Section 5.8.2.1.16.1.1, “ Add variable / change variable value ”.

[Note]Note

Via configuration file of the CAD systems, you have the possibility to exclude attributes in the productive environment or PDM.
