1.10.1.3.2.6.  3D history: Blend feature: Live selection of surfaces and edges

The Blend feature is now a docking window and accessing the 3D view is possible while it's active.

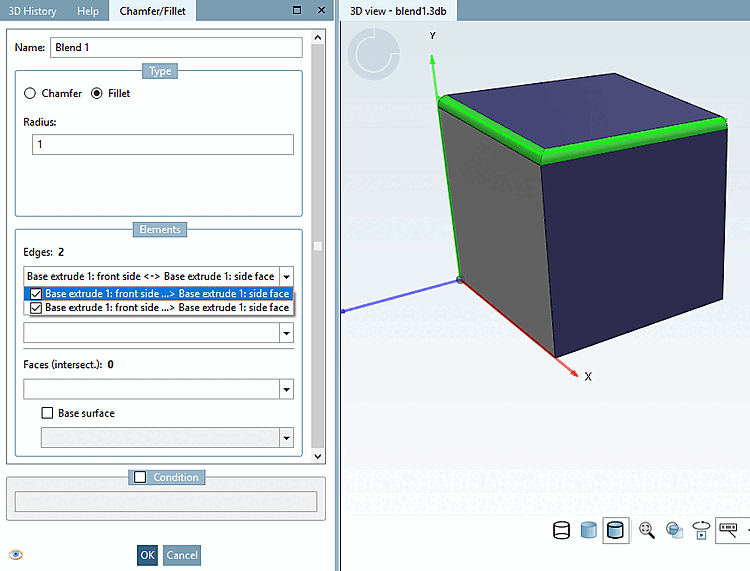

Example: Initial situation is a cube with 2 filleted edges.

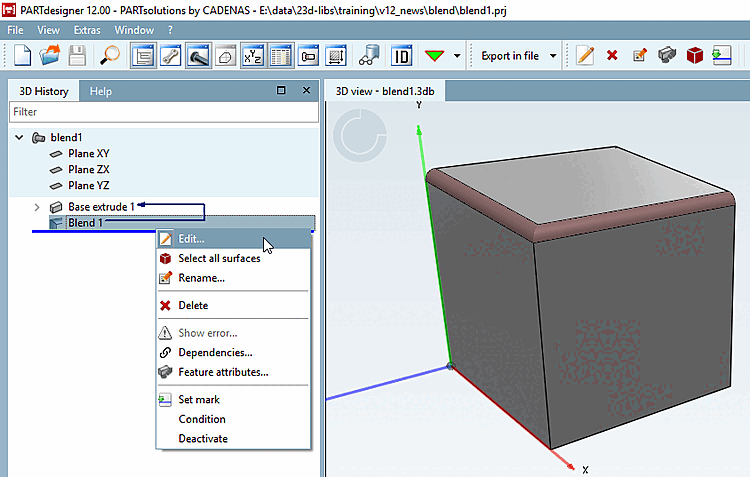

  1. Open the blend again by clicking on Edit.... [Edit...]

    -> The chamfer/rounding [Chamfer/Fillet] docking window opens.

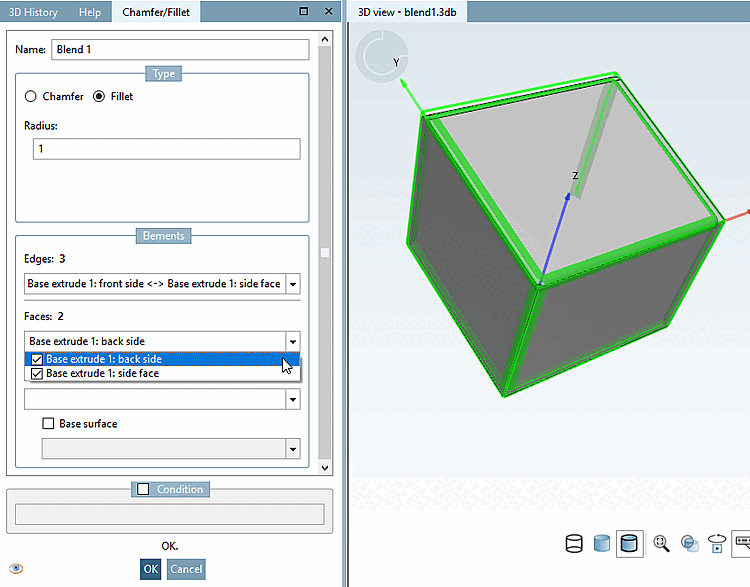

  2. Now you can select other edges and faces while the docking window is active. Selected edges and faces are directly added to the blend feature.

    Deselection is made by deactivating the corresponding checkbox in the Edges and Surfaces [Faces] list boxes.

Detailed information on the blend feature can be found under Section 7.6.2.12, “ Blend ( add chamfer/rounding...) ” in eCATALOGsolutions - Manual blend feature.
