1.10.1.3.2.21.  Sketcher: Contour offset supported in sketches

The contour offset [Contour offset] tool creates a duplicate of the contour with a scaling factor. Simply enter the desired distance [Distance] to the original contour in the Edit element docking window. (Feature for demo purposes only, not released.)

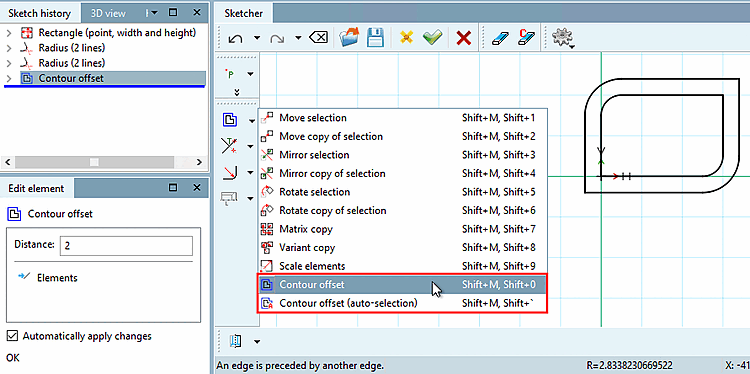

Contour offset result

Contour offset result

Restrictions

  • Currently on the basis of a contour, only ONE more can be created,

  • Contour offset does not support ellipses and elliptical arcs.
