1.3.4.12.3.15.  Linear Rectangular Slot Pattern

With this function you can search for linear rectangular slot patterns.

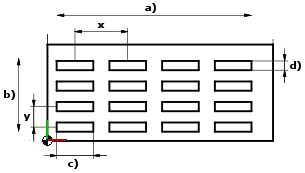

a) Number of widths [Amount Width] (here 4 elements as an example), b) Number of heights [Amount Height] (here 4 elements as an example), c) Hole length [Hole Length], d) Hole width [Hole Width]

a) Number of widths [Amount Width] (here 4 elements as an example), b) Number of heights [Amount Height] (here 4 elements as an example), c) Hole length [Hole Length], d) Hole width [Hole Width]

  • Number: Number of patterns in the searched part

  • Number of width [Amount Width] / number of height [Amount Height]: Number of individual pattern elements in width and height

    [Note]Note

    In staggered arrangements, the elements of the staggered row are also counted.

    Example: Width = 6 elements, height = 3 elements

    Example: Width = 6 elements, height = 3 elements

    X-distance [Distance X] / Y-distance [Distance Y]:

    Distance between two pattern elements in the direction of the X and Y axes

  • Arrangement

    • Straight

      Arrangement: Straight

      Arrangement: Straight

    • Staggered

      Arrangement: Offset [Staggered]

      Arrangement: Offset [Staggered]

      [Note]Note

      For staggered patterns not the absolute distance from hole center to hole center is decisive, but the distance in direction of X and Y axis.

Rectangular Slot Attributes

  • Number: Number of patterns in the searched part

  • Length / width [Width]: Length and width of a single slot (see above)

  • Depth:

    Hole depth

    Hole depth

  • Rounding diameter [Rounding Diameter]:
