Close all open programs before running the setup.

Now execute the msi file.

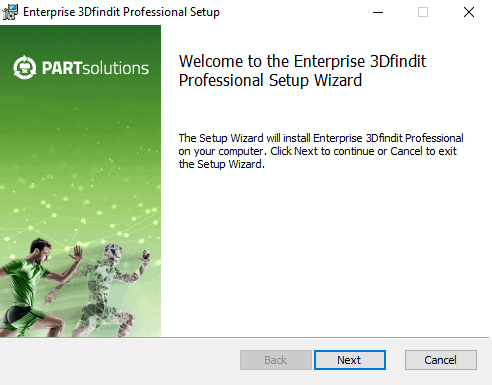

Welcome

Click Next.

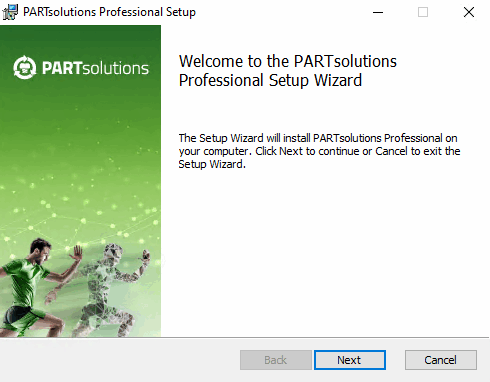

Welcome to the setup wizard of PARTsolutions Professional

End-User License Agreement

Accept the terms of the license agreement and click Next.

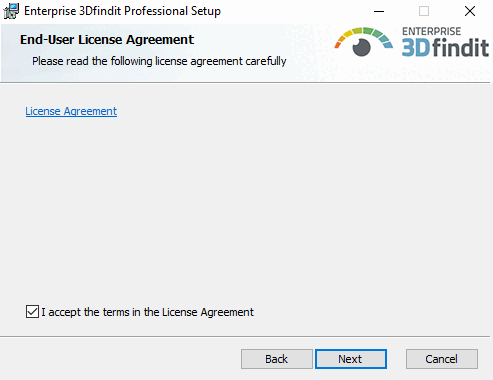

End-User License Agreement

Destination Folder

Specify the folders in which the software is to be installed.

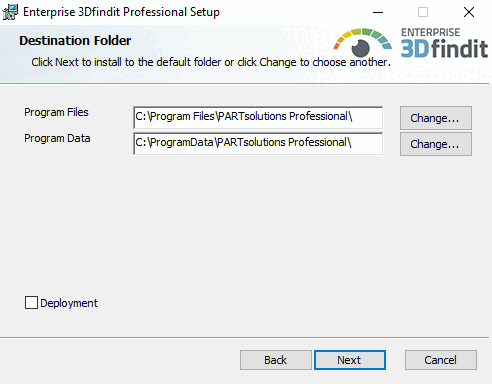

Destination Folder (1st dialog)

The Change... button allows you to select a folder on the hard disk other than the default one (if necessary).

Note As a rule, no change is necessary. Do not change the default paths without consultation.

Important 1st rule Program Files and Program Data must be independent of each other! Program Files: Folder for the software installation (CADENAS) When uninstalling and updating, the Program Files folder is COMPLETELY removed! Program Data is root for the following folders: CADENAS_SETUP When uninstalling and updating, the CADENAS_SETUP folder is COMPLETELY removed! CADENAS_SITESETUP CADENAS_POOL 2nd rule The 1st rule must not be circumvented in the second dialog of Destination Folder. CADENAS_DATA, CADENAS_POOL, CADENAS_SITESETUP, CADENAS_USER must not be in or under the folder "Program Files" (software installation)! Reason: The software directory is completely provided by MSI and additional files must be removed beforehand to avoid conflicts with old or obsolete files. Example of correct directory structure: Program Files=c:\cad\software CADENAS=c:\cad\software CAENAS_DATA=c:\cad\data <-- ok .. CADENAS_POOL=c:\cad\pool <-- ok .. Example of incorrect directory structure: Program Files=c:\cad\ CADENAS=c:\cad CAENAS_DATA=c:\cad\data <-- error CADENAS_POOL=c:\cad\pool <-- error If the directory structure is incorrect, a corresponding error message appears. 3rd rule POOL must never be below DATA! 4th rule Caution! When using Deployment, you are completely free to set the directory structures. However, this overrides all checks by the software! Deployment can/should also be used for client distributions. An image created by an admin/consultant can then be distributed to the clients via copy or share. Only the files are copied without system entries. Any number of copies can be created. (Make sure to select a different target directory each time).

Click Next when you have made your selection.

-> The second Destination Folder settings page opens.

Adjust the paths of CADENAS DATA, CADENAS SITESETUP, CADENAS Pool and CADENAS User if necessary.

Note It is essential that you observe the above rules or consult the Consulting Team.

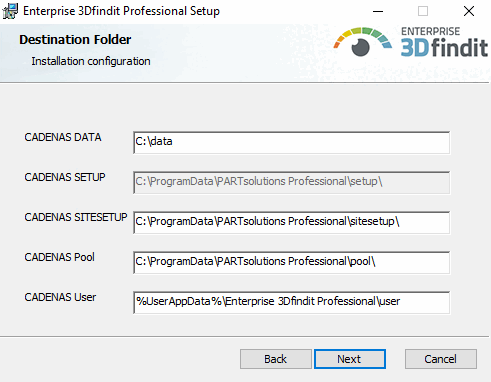

Destination Folder (2nd dialog)

Note The paths from the first and second dialogue are filed in the start.env . Never change paths there, but always via the installation routine, either during an update or via "Add and remove programs" for the current Installation.

Example of the start.env: The path under CADENAS_DATA has been modified.

[ENVIRONS]
CADENAS=%DirOfThisFile%
CADENAS_SETUP=C:\ProgramData\PARTsolutions Professional\setup
CADENAS_DEFAULTUSER=$CADENAS_SETUP\user\default_user
CADENAS_SITESETUP=C:\ProgramData\PARTsolutions Professional\sitesetup
CADENAS_USER=%UserAppData%\PARTsolutions Professional\user
CADENAS_LICENSE=$CADENAS_SITESETUP\lic
CADENAS_POOL=C:\ProgramData\PARTsolutions Professional\pool
CADENAS_DATA=C:\data_minimal\

Product Features

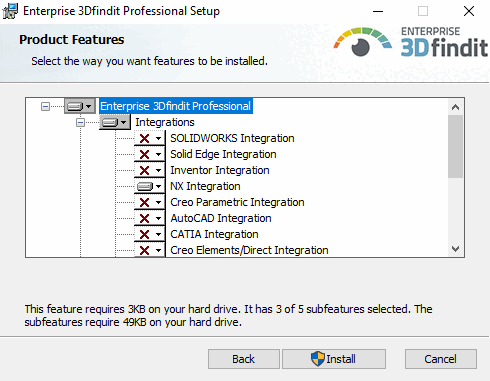

Product Features (Section 1)

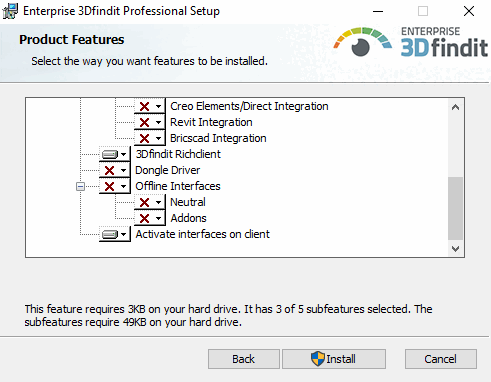

Product Features (Section 2)

Note You can add or remove CAD systems at any time via Windows Start menu -> "Add or remove programs".

Start the installation by clicking on Install.

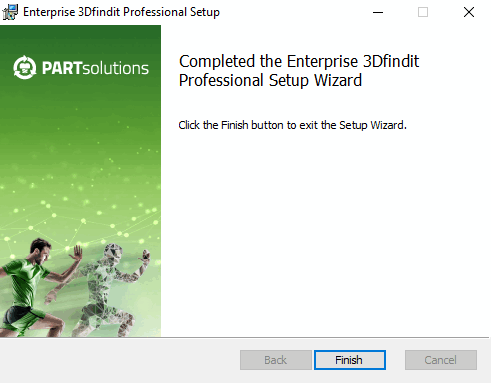

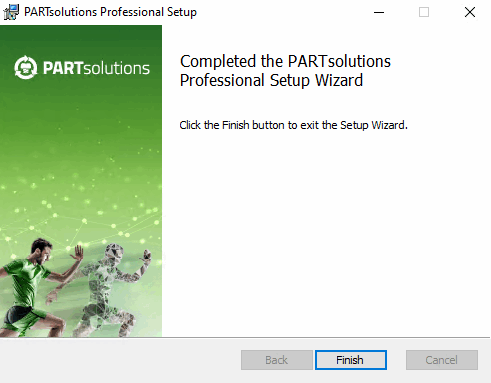

-> Once the installation is completed, the following dialog will appear.

Click Finish.

-> The installed programs can now be called up from the Windows menu.

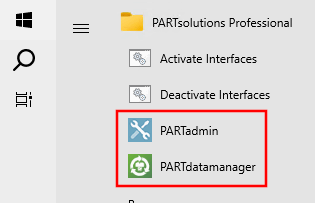

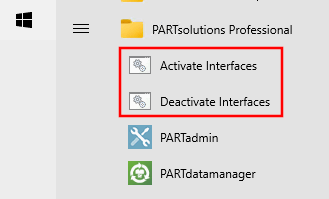

Start menu entries

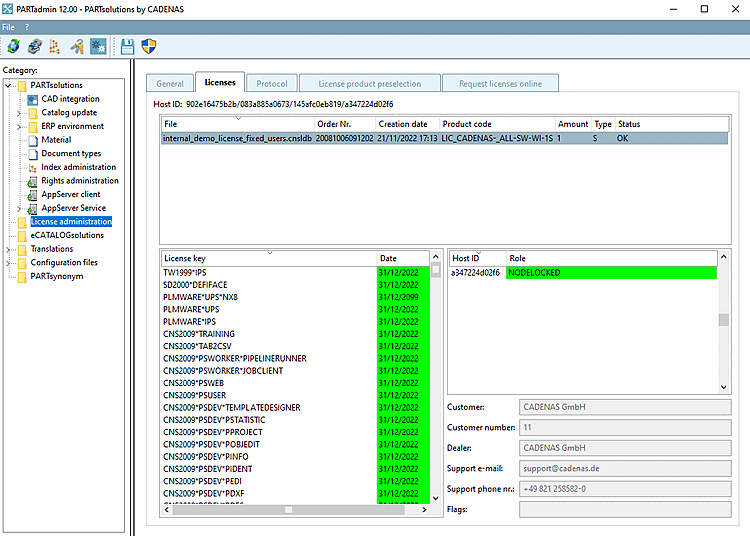

Import an already received license via PARTadmin under tab page Licenses -> Add file [Add file...]... :

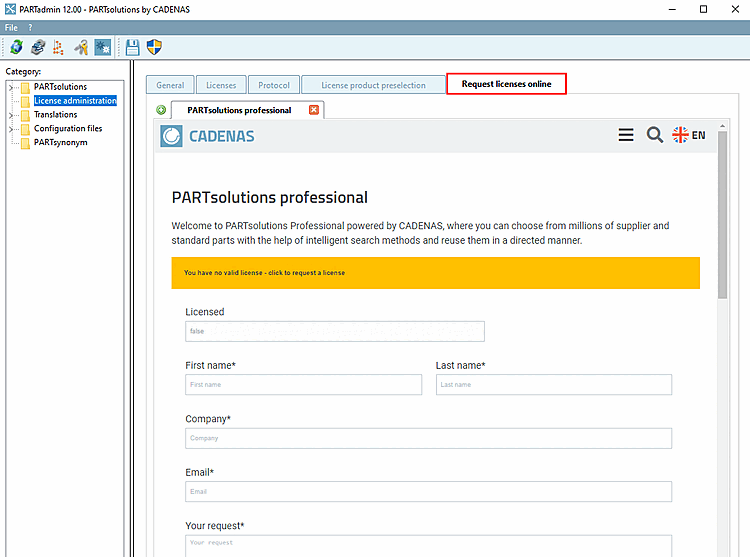

Otherwise, you can apply for a license on the Apply for licenses online [Request licenses online] tab.

Details on licensing can be found under Section 1.4, “ License administration ” in PARTsolutions Administration - Manual .

Install the required catalogs and classifications via PARTadmin.

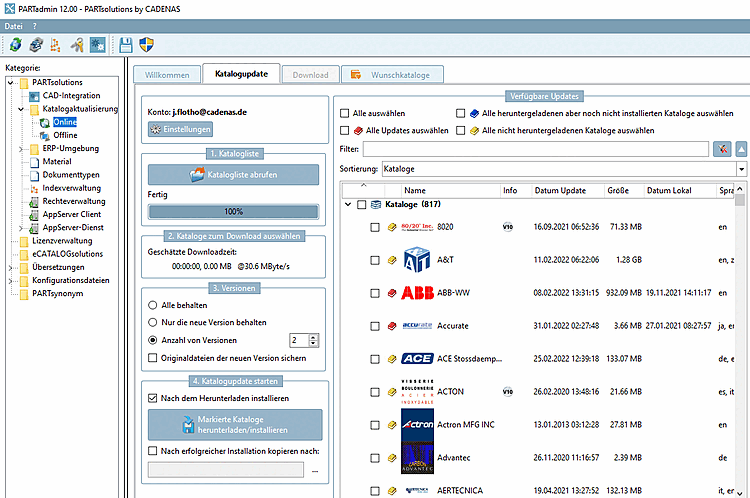

PARTadmin -> Catalog update -> Online

Details can be found under Section 1.3.3.1, “ Catalog update Online ” in PARTsolutions Administration - Manual .
