6.10.2.3.2.  Map resolved value ranges

With the function Assign resolved value ranges [Map resolved value ranges] function to create a list of all value combinations.

If you click on the button, an empty Edit value range assignments [Edit value range mappings] dialog box opens.

In order for the assignments to be displayed in the dialog box, you must first call up the context menu command on a desired row or the button above the table in order to create the assignments for all rows.

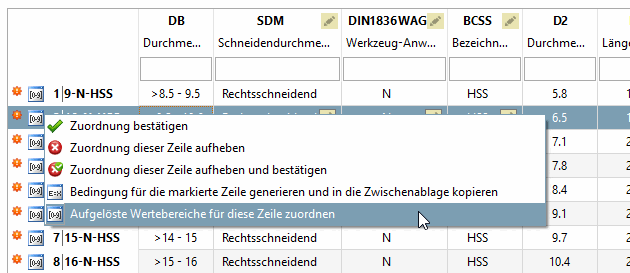

Context menu command "Assign resolved value ranges for this row [Map resolved value ranges of this line] "Assign resolved value ranges for this row

Context menu command "Assign resolved value ranges for this row [Map resolved value ranges of this line] "

"Edit value range assignments [Edit value range mappings] " dialog

"Edit value range assignments [Edit value range mappings] " dialog

You can find an example on how to work with this function under Section 6.10.2.4.11, “Resolved value range”.
