4.2.1.7.  PARTdataManager: Project selection with scalable, animated 3D Tooltip

Now with V9.08 SP1, for the Project selection, scalable, animated 3D tooltips are available in addition to the 3D preview. When drawing the mouse over a 3D preview the 3D tooltip shows up.

The extensions in X, Y and Z axes are automatically displayed.

In the down right corner of the tooltip you can find an icon to draw up the size.

3D tooltips are found...

Examples:

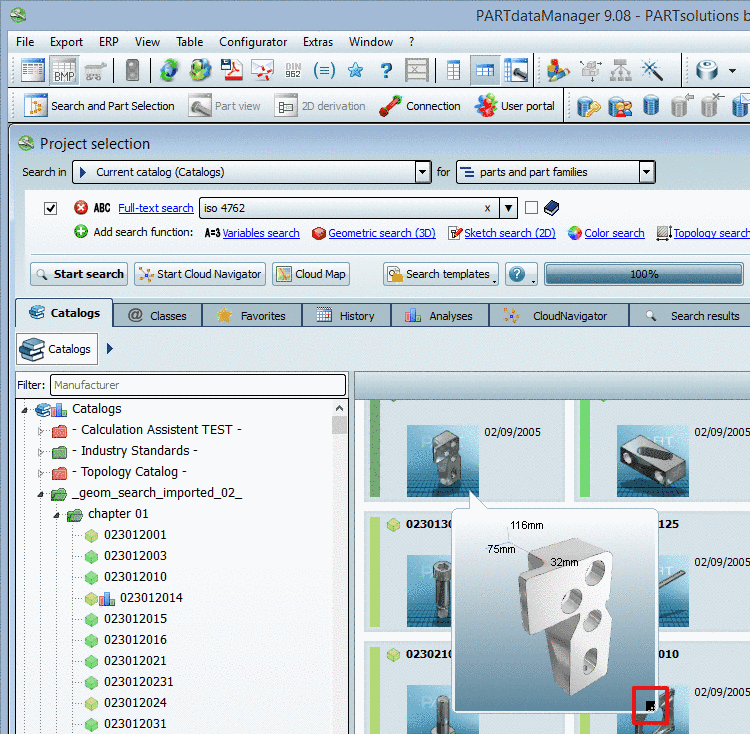

3D Tooltip on the tabbed page "Catalogs"

3D Tooltip on the tabbed page "Catalogs"

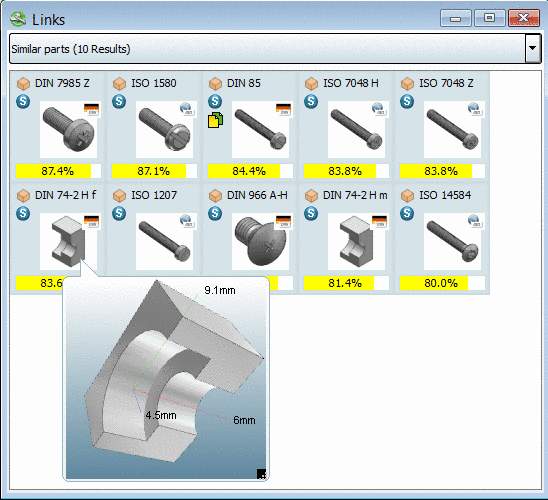

3D Tooltip in the dialog box "Links"

3D Tooltip in the dialog box "Links"

3D Tooltip on the tabbed page "Search results"

3D Tooltip on the tabbed page "Search results"

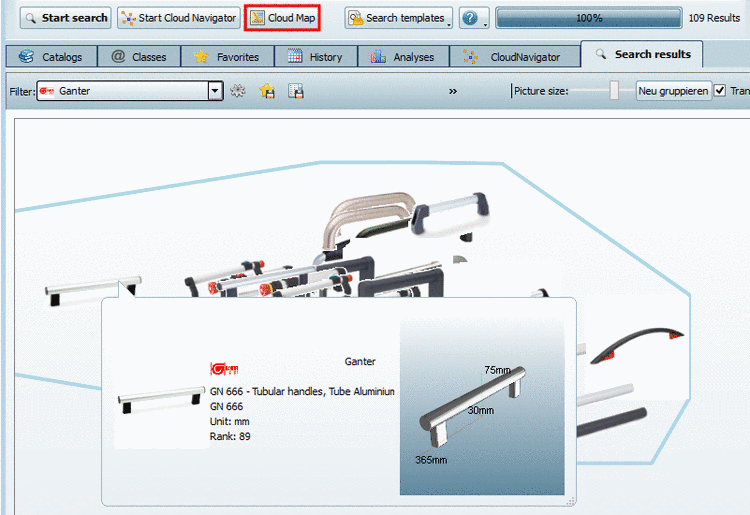

3D Tooltip in the Cloud Map

3D Tooltip in the Cloud Map

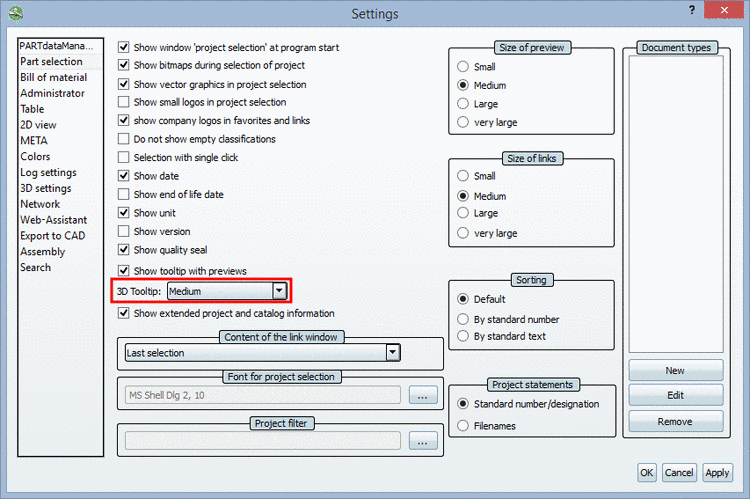

Whether a 3D tooltip (small, medium, large) shall be used or better preview images, can be set in the Extras menu under Preferences... -> Part selection -> 3D Tooltip:

  • No 3D Tooltip (Display of a preview image)

  • Small

  • Medium

  • Large
