Simple review of project changes

View the information on the Release Notes and Change Details [Modification Details] Tabbed pages.

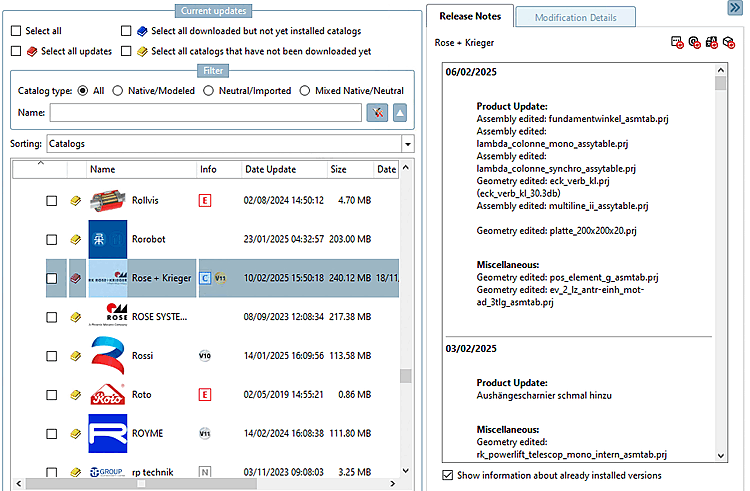

Tabbed page "Release notes [Release Notes]"

Please also note the information icons:

	Other updates have been carried out [A miscellaneous update has been made]
	Wizards have been updated [Assistants have been updated]
	Classifications have been updated
	The catalog has been updated for technical reasons [Due to technical reasons, the catalog was updated]
	A new language has been added or existing translations have been revised [A new language was added or existing translations were reworked]
	New series / products have been added or changed [New series/products were added or modified]

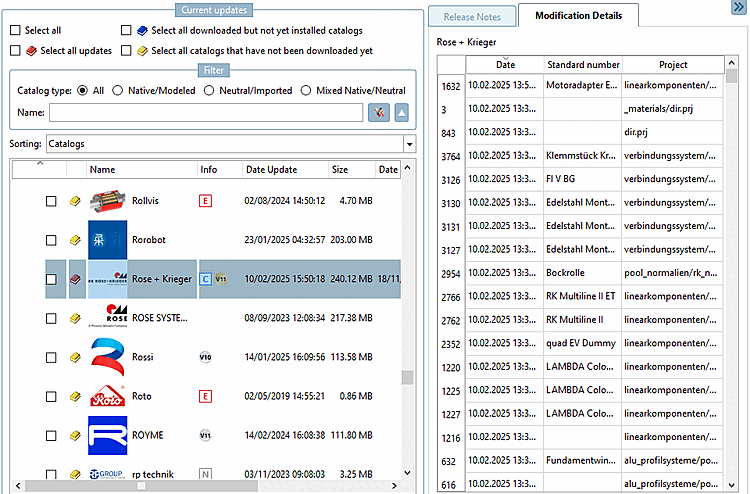

Tabbed page "Change details [Modification Details]": Changed projects are listed.

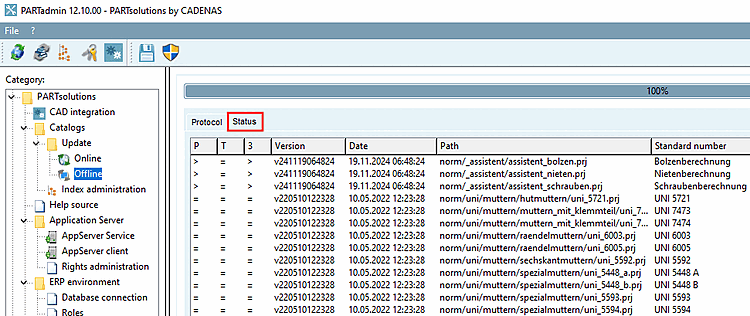

If you have the catalog cip file available, you can work with the offline version under PARTadmin -> Category Catalog update -> Offline and also display a tabular list of all projects BEFORE the installation.

Note If you want to use this function, please make sure that the Install after download option is deactivated! Deactivate "Install after download [Install after download]" Detailed information on this can be found under Section 1.3.3.4, “ "Check" and "Compare " before installing the catalog ” in PARTsolutions Administration - Manual .

The list shows for each project whether a change has been made and if so, where exactly, whether in the project, table or 3D.

Legend:

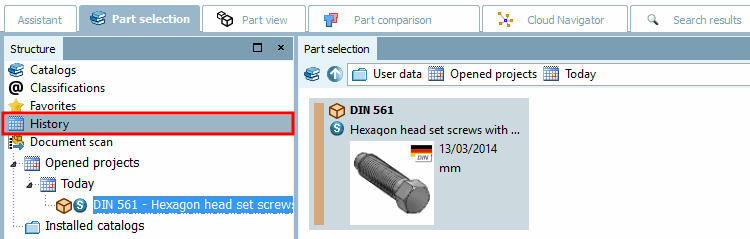

AFTER the installation you will find the same information in the PARTdataManager under Part selection -> History -> Installed catalogs.

Here you can see which catalogs have been added and when, and which files have changed compared to the previously installed version.

The following icons indicate the respective directory or project status:

	Change / New in the directory [Changes / New files in the directory]
	At directory level: All projects in the directory are unchanged. Project level: No change: Identical project
	The file has changed / change in the project
	The file is new / New project
	Project deleted

The following figure shows an example.

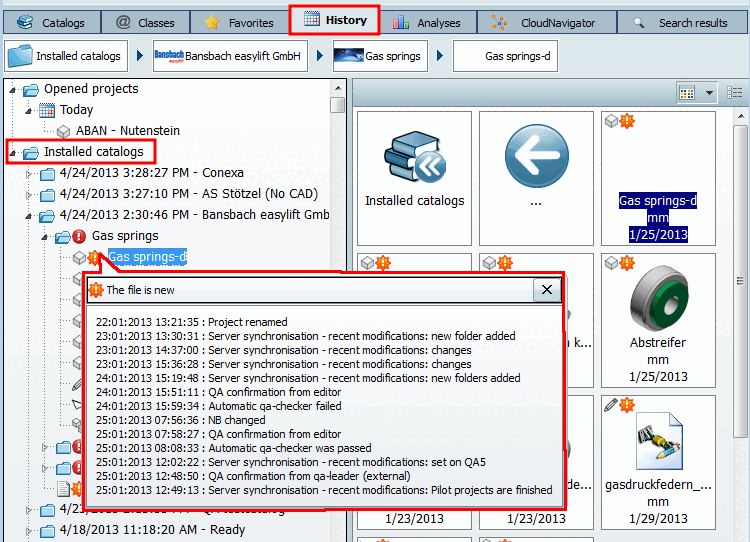

Call up history with mouseover^[8]

If you move the mouse over the icon, the tooltip with the change history of the catalog becomes visible.

Before an update, you can also compare the table [Table] and the corresponding 3D view of the current and the catalog version to be installed for any construction parts.

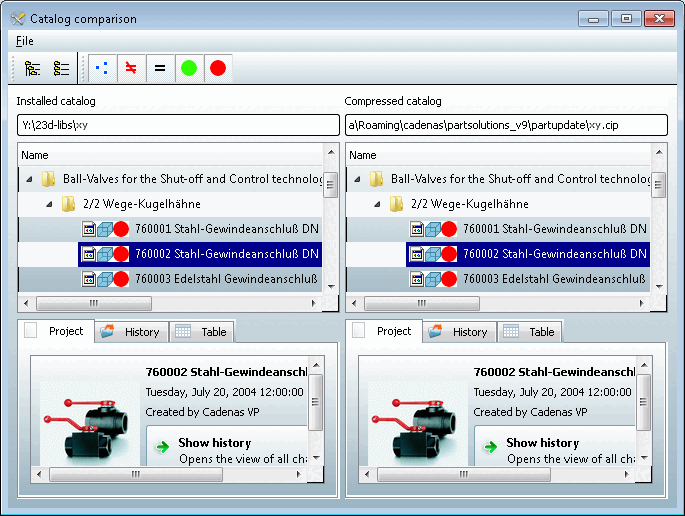

You can compare the table [Table] and 3D view in the "Catalog comparison [Catalog comparison]" dialog box.

Note If you would like to use this function, please note that the Install after download option is deactivated! Deactivate "Install after download [Install after download]" Detailed information on this can be found under Section 1.3.3.4, “ "Check" and "Compare " before installing the catalog ” in PARTsolutions Administration - Manual .
