1.3.5.8.3.4. SSL encryption
1.3.5.8.3.4.1. Provide certificate via Windows certificate store
1.3.5.8.3.4.2. Import certificate on client with Windows standard tools

You can also use SSL encryption for all requests to the PARTapplicationServer [13] use.

If the HTTPS port [HTTPS-Port] and/or SSL service port [SSL-Service-Port] checkboxes are activated, the SSL dialog area is also activated.

  1. HTTPS port [HTTPS-Port]: File system service

  2. SSL service port [SSL-Service-Port]: Mzcom service calls (index, DB, search)

The standard Microsoft certificate management is completely supported and the regular management interface is displayed.

You can select certificates that have already been created in the list field under Hostname [Host name].

Detailed information on this can be found under Section 1.3.5.8.3.4.1, “Provide certificate via Windows certificate store ”.

1.3.5.8.3.4.1. Provide certificate via Windows certificate store

You can select administratively stored certificates in the list field under Hostname [Host name].

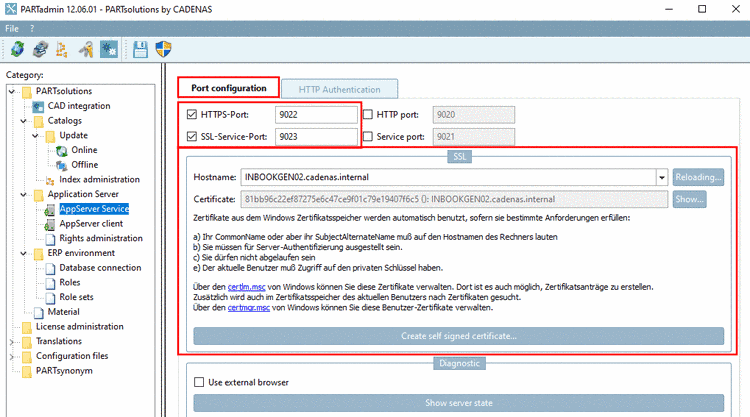

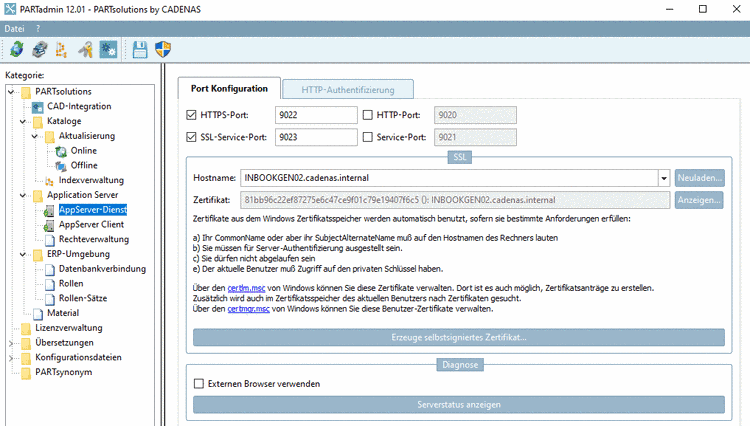

Tabbed page "Port configuration [Port configuration]"

Tabbed page "Port configuration [Port configuration]"

Check on client side

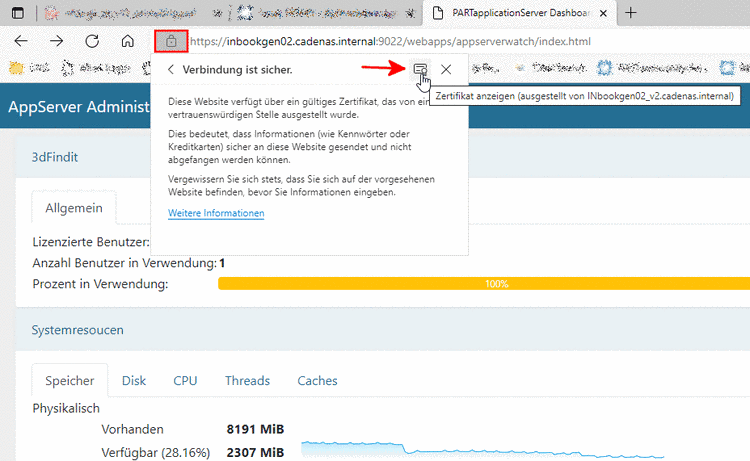

  1. Click on the lock icon.

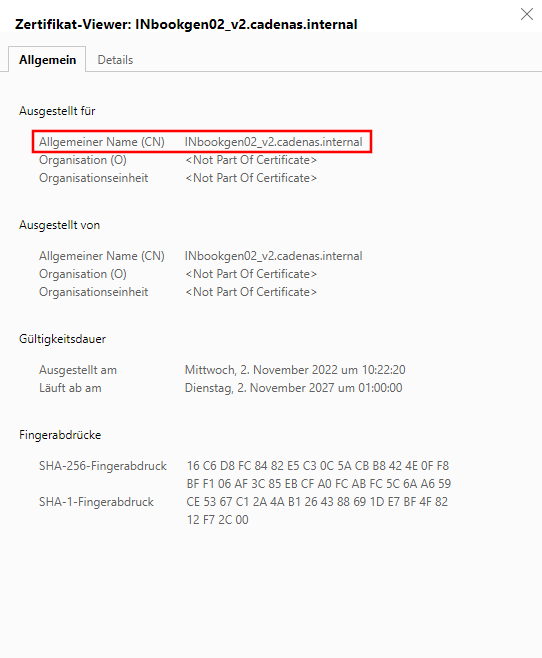

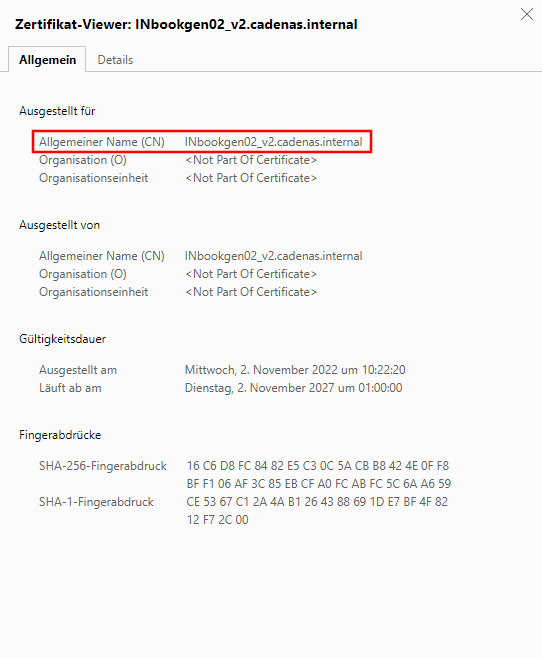

  2. Click on the Show certificate icon.

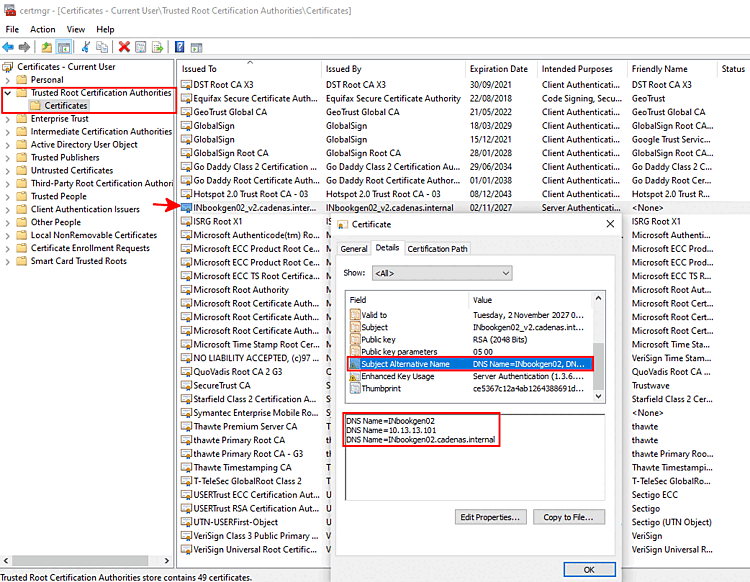

  3. Use the Windows key + R and certmgr.msc to open the Windows Certificate Manager.

Requesting new certificates

However, you can also request new certificates, which are then also displayed in the list field under Hostname [Host name].

For this proceed as follows:

  1. Click on the link "certlm.msc".

    -> The local management page is opened on the client.

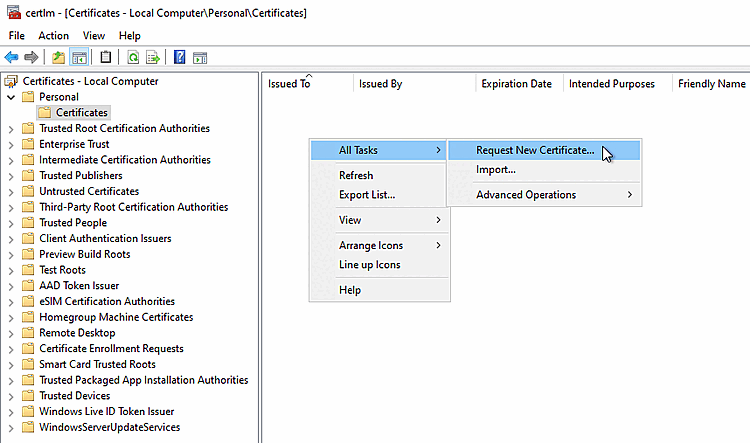

  2. Under "Personal", select the menu item "Certificates".

  3. On the right, open the context menu and there, under "All Tasks" click on the command "Request New Certificate...".

    -> The "Certificate Enrollment" Wizard is opened.

  4. Then on the page "Active Directory Enrollment Policy" select a certificate and pay attention that under "Details" -> "Application Policies" the entry "Server Authentication" is available.

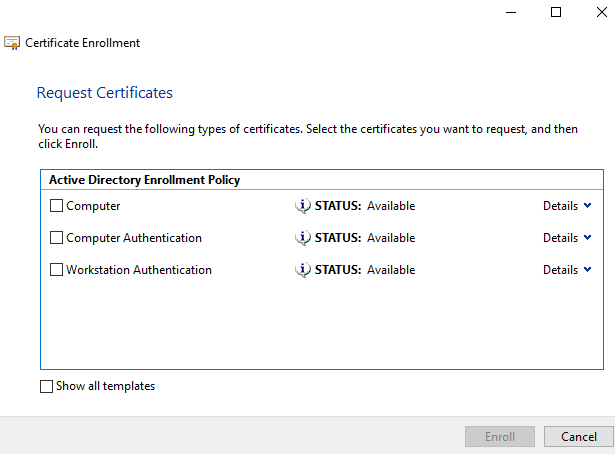

    Certificate selection

    Certificate selection

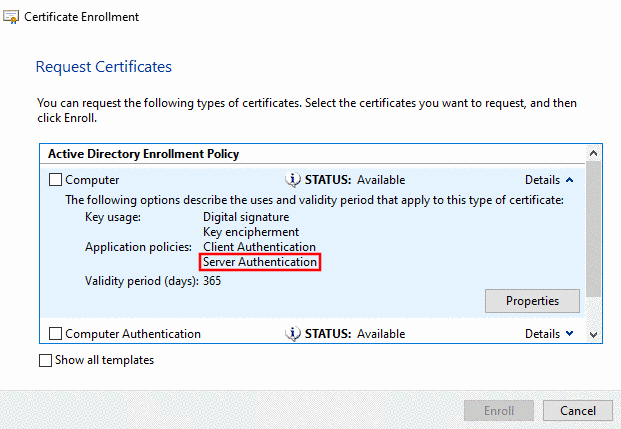

    Application Policies -> Server Authentication

    Application Policies -> Server Authentication

1.3.5.8.3.4.2. Import certificate on client with Windows standard tools

How to import the certificate sent back from CA on the client?

Avoid duplicates!

See chapter"Authentication" .

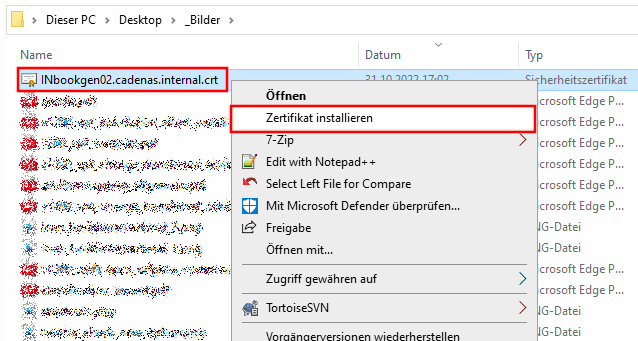

Zertifikat installieren

Zertifikat installieren

-> Der Zertifikatimport-Assistent wird geöffnet.

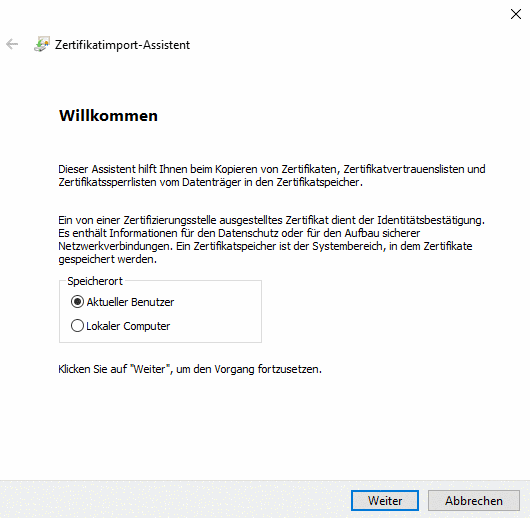

Zertifikatimport-Assistent

Zertifikatimport-Assistent



[13] SSL (Secure Sockets Layer) is a hybrid encryption protocol for secure data transmission on the Internet.
