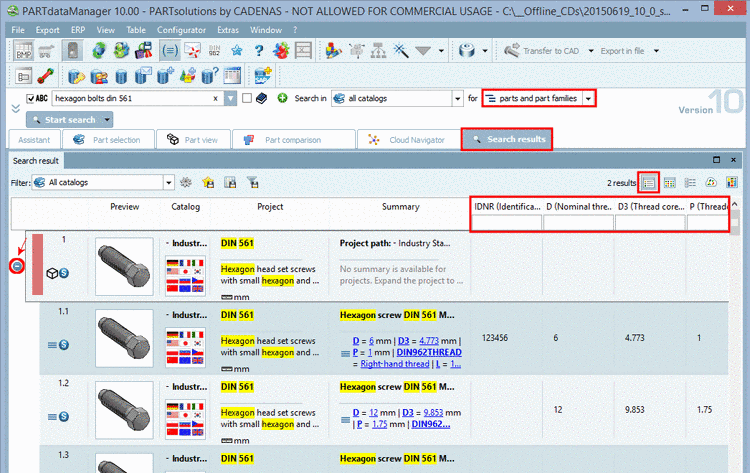

In Details mode [Details] (default setting), the following are displayed by default^[71] the variables of all results are displayed, which may lead to wide tables (if the search covers many catalogs or returns different parts). This means that fields can also remain empty if the part in question does not contain certain variables.

Variable filter in column header

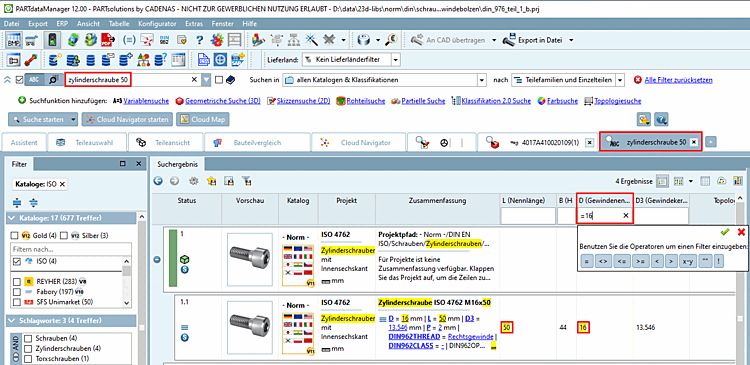

Above each column you will find an input field for filtering. Even if not all hits are displayed in the search results, the filter still affects all hits and dynamically adjusts the display of the table variables. You can filter several variables in succession; values that have already been entered are retained.

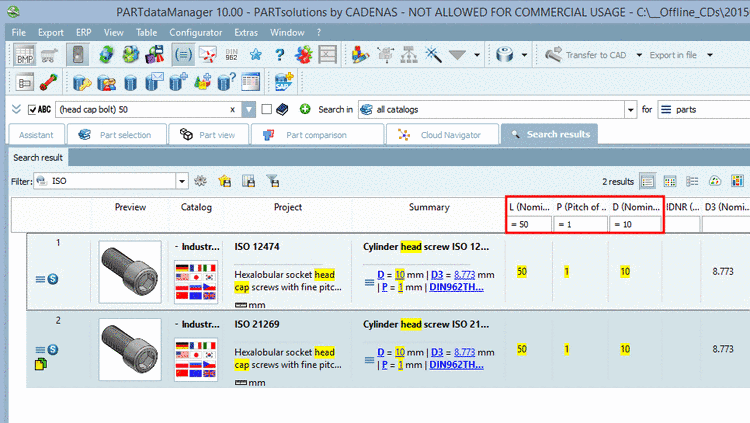

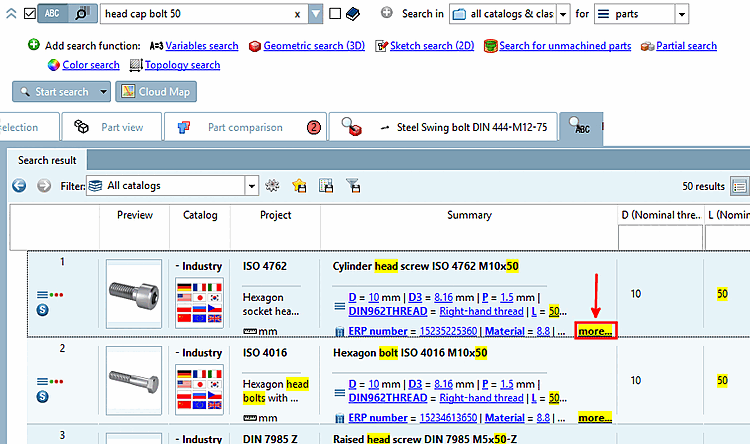

In the following example a search for "head cap bolt" and the numerical value "50" has been performed. Search terms are marked with yellow color.

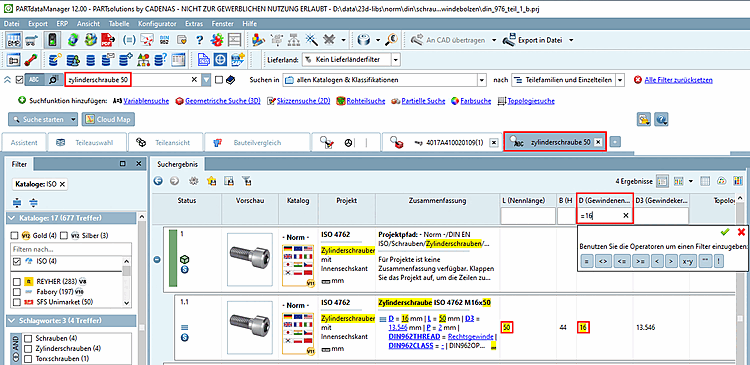

You can position interesting variables further forward by drag & drop with pressed mouse button in order to view them at a glance.

Note

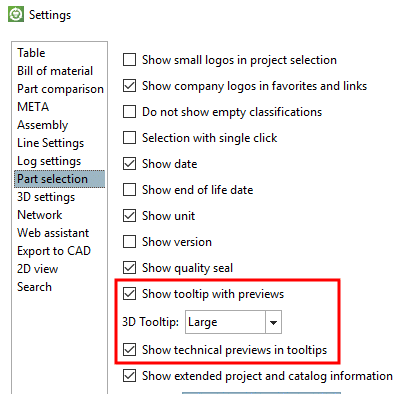

call up 3D tooltip [3D Tooltip] Especially if the preview image is set small, it is helpful to display the 3D tooltip [3D Tooltip] + technical information [Technical details] (if available). To do this, move the mouse over the preview image. The 3D tooltip is scalable and animated. In the bottom right-hand corner you will find an icon for dragging the size. The expansions in the X, Y and Z axes are automatically displayed. You can specify whether and how the tooltip should be displayed in PARTdataManager under Extras menu -> Settings [Preferences...]... -> Part selection. Settings... [Preferences...] -> Parts selection [Part selection] Show tooltip with preview images [Show tooltip with previews] 3D tooltip [3D Tooltip]: No 3D tooltip [No 3D Tooltip] | Large | Medium | Small Show technical view in tooltip [Show technical previews in tooltips]

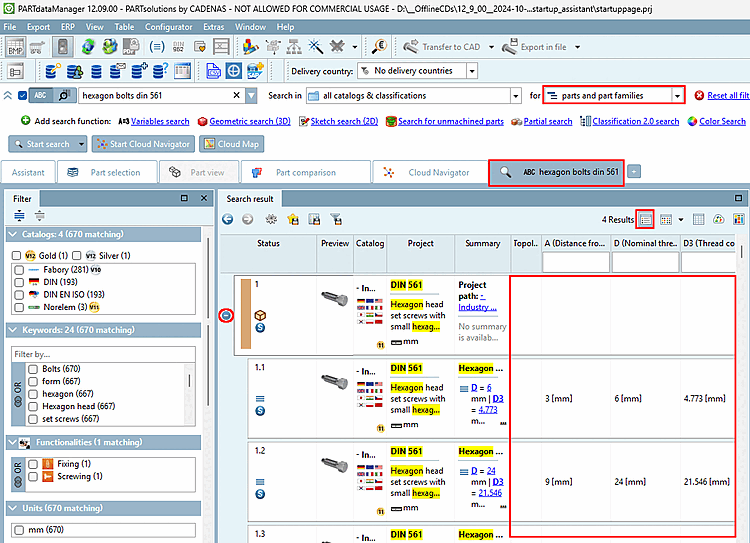

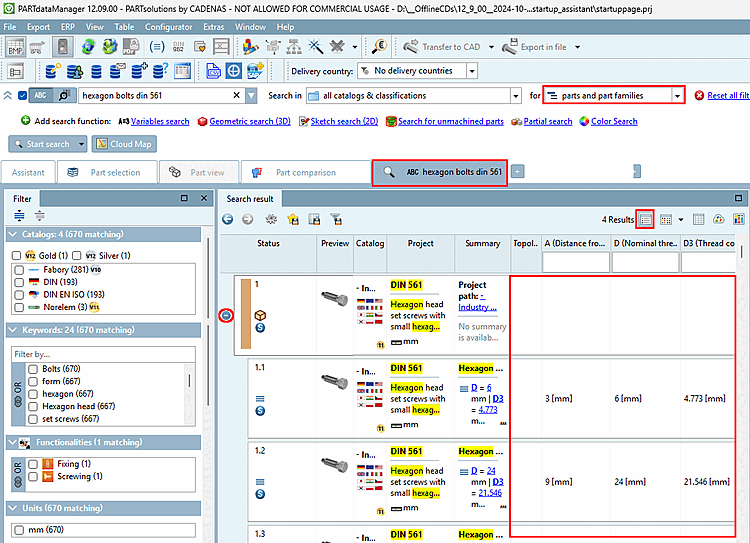

Note If you have searched for Part families and individual parts [parts and part families], click on the plus sign next to the desired search result to see the individual parts. Initially, the characteristics table with the individual variables is only displayed now. Whether the superordinated project (part or assembly) or a certain characteristic is displayed you can recognize at the respective icon: | Part or assembly Certain characteristic

3.1.6.7.1.1.1. Popup window shows all available information

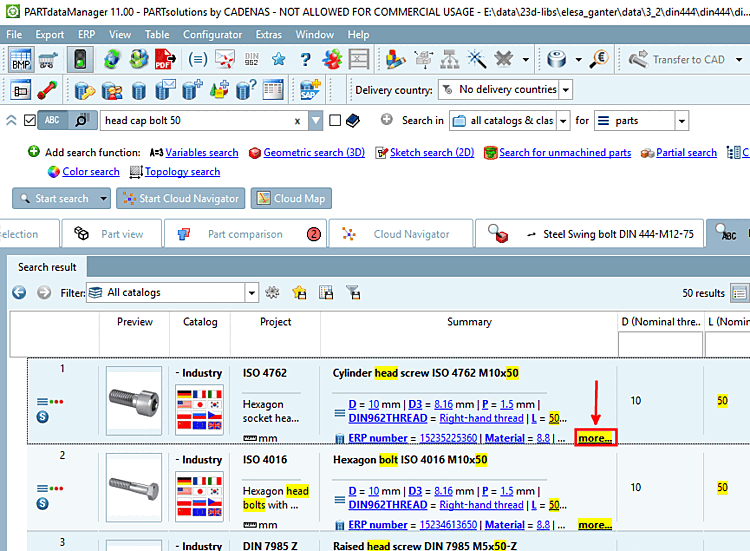

If there is not enough space to display all the information, this is indicated by the display of " more. [more...]..". This is particularly the case in the Summary and Topology columns.

More examples:

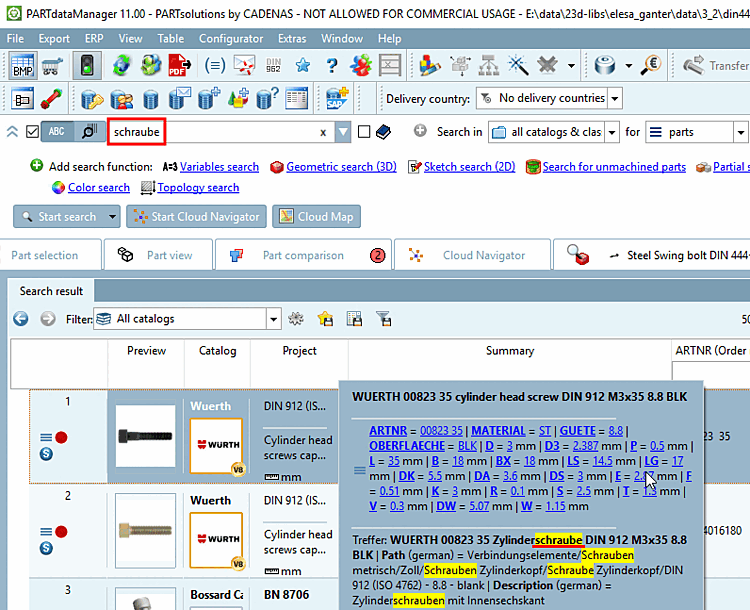

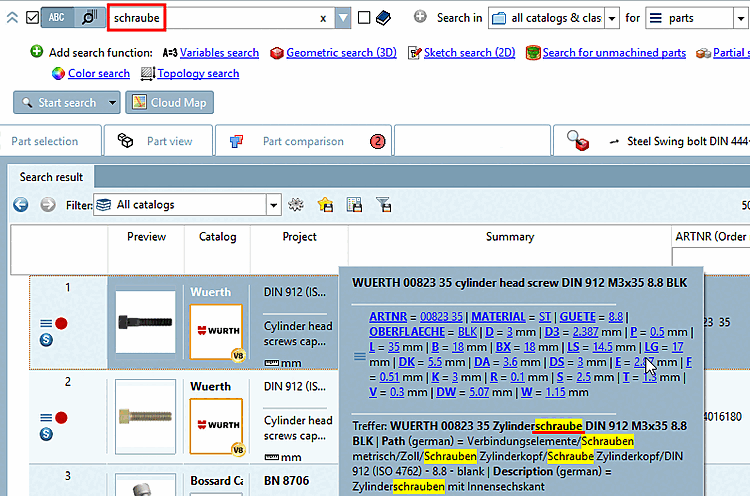

When searching for "schraube" in an English user interface, in the expanded view, you can see where the hit occurred.

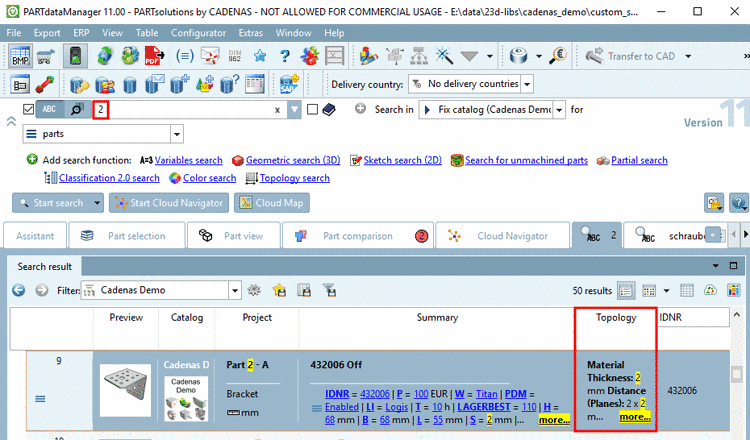

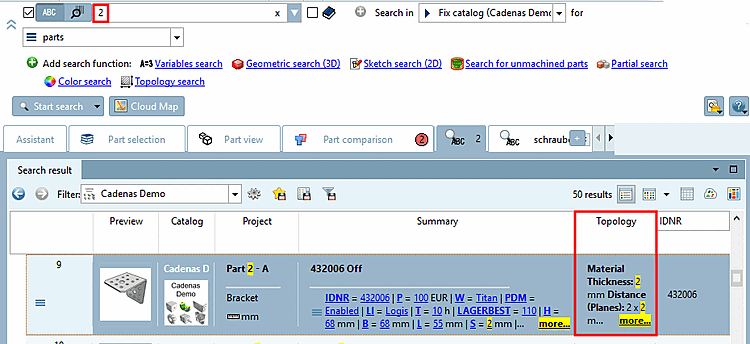

Searching for topological values using a full text search may return many values. To see all values, please click on " more. [more...]..".
