1.1.1.3.1.7. Assembly properties of the rule: Filter for positioning

You can now usefilter input fields in PARTdesigner > Configurator tab > Rule properties dialog box > Positioning > for positioning assembly parts under Connection part and Connection point to quickly find what you need.

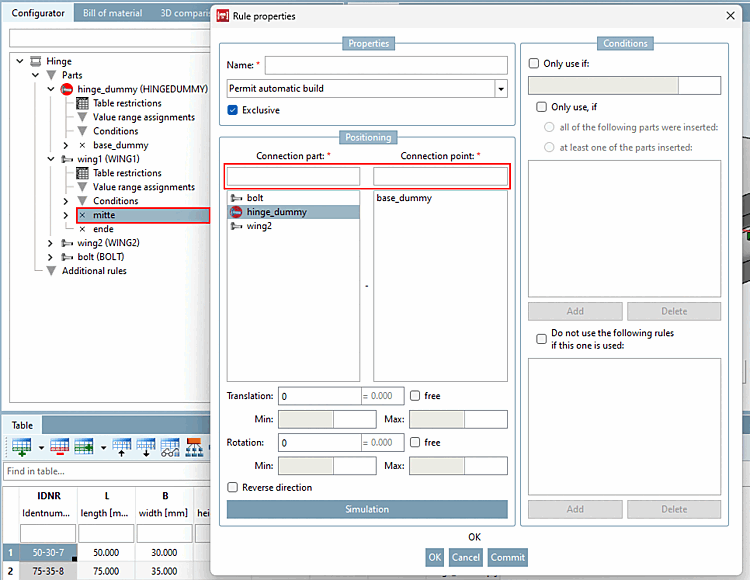

Properties of the rule [Rule properties] > Filter

Properties of the rule [Rule properties] > Filter

Further information on the properties and creation of rules can be found in the chapter Section 7.13.3.2.2, “Rules for connection points ” in eCATALOG 3Dfindit.
