2.6.1.1. Standard placement

[Note]Note

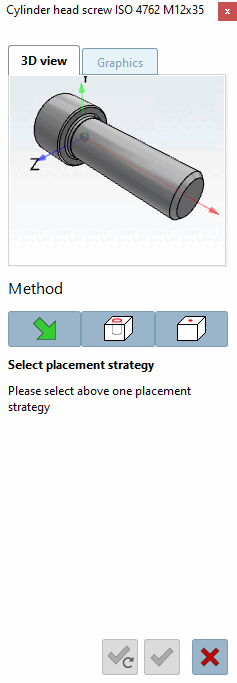

The CAD standard placement is always available. The buttons of unavailable placement methods are hidden.

Click on in order to use the standard placement method of your CAD system.
