1.1.2. User interface and processes at a glance

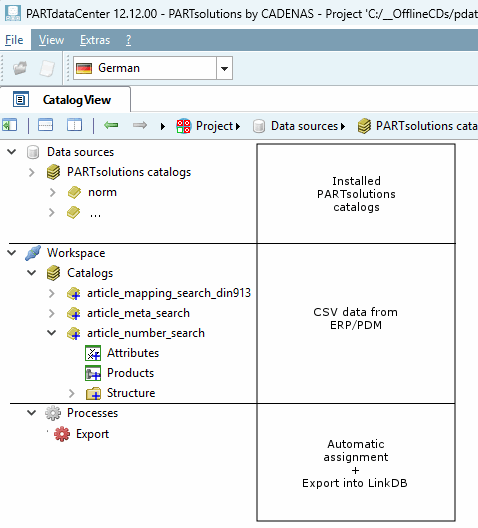

The following figure shows how the article assignment between CSV data and PARTsolutions data is displayed in the user interface of PARTdataCenter.

  • Import of CSV files from ERP/PDM system

    Under Catalogs you will find the context menu command Import catalog -> Import CSV [Import from CSV].

  • Customizable templates for article assignment and export to the LinkDB can be selected under Processes.

    The data structure determines the template to be used: (only one "default" template is currently available for the wizard)

    • Dimension search (see Section 1.1.5, “ Dimension search (with "Article Assignment Wizard" for standard parts)”):

      Standard number and dimensions as identification parameters

      Standard number and dimensions as identification parameters

      ID;NORM;SHAPE;DIMENSION;VARIANT;HERSTELLER_IDENT
1;DIN 913;;M4x10;NO;DIN913-M4x10
2;DIN 913;;M5x8;NO;DIN913-M5x8
3;DIN 913;;M4x4;NO;DIN913-M4x4
4;DIN 913;;M3x4;NO;DIN913-M3x4
5;DIN 913;;M5x25;NO;DIN913-M5x25
6;DIN 913;;M6x35;NO;DIN913-M6x35
7;DIN 914;;M4x6;NO;DIN914-M4x6
8;DIN 913;;M4x6;NO;DIN913-M4x6
9;DIN 913;;M6x16;NO;DIN913-M6x16
10;DIN 913;;M8x1x20;NO;DIN913-M8x1x20
11;DIN 913;;M4x8;NO;DIN913-M4x8
12;DIN 913;;M5x20;NO;DIN913-M5x20
13;DIN 913;;M3x16;NO;DIN913-M3x16
14;DIN 913;;M5x16;NO;DIN913-M5x16
15;DIN 913;;M6x20;NO;DIN913-M6x20
16;DIN 913;;M3x4-A2;NO;DIN913-M3x4-A2
17;DIN 913;;M3x10;NO;DIN913-M3x10
18;DIN 913;;M3x3;NO;DIN913-M3x3
19;DIN 913;;M3x6;NO;DIN913-M3x6
20;DIN 179 A;A;6x10;NO;DIN 179 A 6x10
21;DIN 179 A;A;6x20;NO;DIN 179 A 6x20
22;DIN 179 B;B;4,5 x 8,0;NO;DIN 179 B 4,5 x 8,0
23;DIN 179 B;B;12x20;NO;DIN 179 B 12x20
24;DIN 913;;M4x3;YES;DIN913-M4x3
25;DIN 913;;M5x30;YES;DIN913-M5x30

    • Article number search [Article Number Search] (see Section 1.1.7, “ Article number search - Automatic assignment based on manufacturer article number ”):

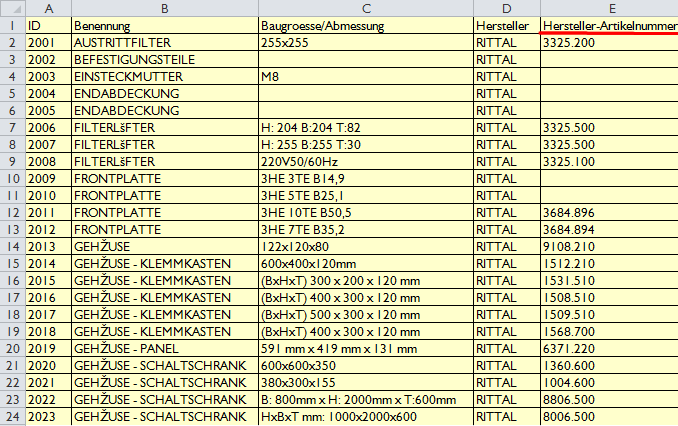

      Article number of manufacturer as identifying parameters

      Article number of manufacturer as identifying parameters

      ID;Benennung;Baugroesse/Abmessung;Hersteller;Hersteller-Artikelnummer
2001;AUSTRITTFILTER;255x255;RITTAL;3325.200
2002;BEFESTIGUNGSTEILE;;RITTAL;
2003;EINSTECKMUTTER;M8;RITTAL;
2004;ENDABDECKUNG;;RITTAL;
2005;ENDABDECKUNG;;RITTAL;
2006;FILTERLÜFTER;H: 204 B:204 T:82;RITTAL;3325.500
2007;FILTERLÜFTER;H: 255 B:255 T:30;RITTAL;3325.500
2008;FILTERLÜFTER;220V50/60Hz;RITTAL;3325.100
2009;FRONTPLATTE;3HE 3TE B14,9;RITTAL;
2010;FRONTPLATTE;3HE 5TE B25,1;RITTAL;
2011;FRONTPLATTE;3HE 10TE B50,5;RITTAL;3684.896
2012;FRONTPLATTE;3HE 7TE B35,2;RITTAL;3684.894
2013;GEHÄUSE;122x120x80;RITTAL;9108.210
2014;GEHÄUSE - KLEMMKASTEN;600x400x120mm;RITTAL;1512.210
2015;GEHÄUSE - KLEMMKASTEN;(BxHxT) 300 x 200 x 120 mm;RITTAL;1531.510
2016;GEHÄUSE - KLEMMKASTEN;(BxHxT) 400 x 300 x 120 mm;RITTAL;1508.510
2017;GEHÄUSE - KLEMMKASTEN;(BxHxT) 500 x 300 x 120 mm;RITTAL;1509.510
2018;GEHÄUSE - KLEMMKASTEN;(BxHxT) 400 x 300 x 120 mm;RITTAL;1568.700
2019;GEHÄUSE - PANEL;591 mm x 419 mm x 131 mm;RITTAL;6371.220
2020;GEHÄUSE - SCHALTSCHRANK;600x600x350;RITTAL;1360.600
2021;GEHÄUSE - SCHALTSCHRANK;380x300x155;RITTAL;1004.600
2022;GEHÄUSE - SCHALTSCHRANK;B: 800mm x H: 2000mm x T:600mm;RITTAL;8806.500 (
2023;GEHÄUSE - SCHALTSCHRANK;HxBxT mm: 1000x2000x600;RITTAL;8006.500
2024;GEHÄUSE - SCHALTSCHRANK;HxBxT mm: 2000x1200x600;RITTAL;8206.500
2025;GEHÄUSE - SEITENWÄNDE;0 mm x 2.000 mm x 600 mm;RITTAL;8106.235
2026;GEHÄUSE - SOCKEL;Fr Schränke/Pulte:800x100x400;RITTAL;2901.200
2027;GEHÄUSE - STANDPULT;800 mm x 960 mm x 400 mm;RITTAL;2668.500
2028;GEHÄUSE - ZUBEHÖR;706,5 - 1006,6 mm;RITTAL;7063.890
2029;GEHÄUSE - ZUBEHÖR;;RITTAL;6053.300
2030;GEHÄUSE - ZUBEHÖR;600 mm x 800 mm;RITTAL;7828.680
2031;GEHÄUSE - ZUBEHÖR;;RITTAL;2468.000
2032;GEHÄUSE - ZUBEHÖR;;RITTAL;8611.070
2033;GEHÄUSE - ZUBEHÖR;B 25mm;RITTAL;1590.000
2034;GERÄTEADAPTER;"63A; 54mm breit";RITTAL;
2035;GERÄTEADAPTER;72x230;RITTAL;
2036;GERÄTEADAPTER;100A/Baub.90mm;RITTAL;
2037;GEWINDELEISTE;M2,5;RITTAL;
2038;GRIFF FÜR GERÄTEBODEN;;RITTAL;
2039;HALTERABDECKUNG;f.SV3418/27/33;RITTAL;
2040;AUSTRITTFILTER;255x256;RITTAL;3325.200
2041;BEFESTIGUNGSTEILE;;RITTAL;
2042;EINSTECKMUTTER;M9;RITTAL;
2043;ENDABDECKUNG;;RITTAL;
2044;ENDABDECKUNG;;RITTAL;
2045;FILTERLÜFTER;H: 204 B:204 T:83;RITTAL;3325.500
2046;FILTERLÜFTER;H: 255 B:255 T:31;RITTAL;3325.500
2047;FILTERLÜFTER;220V50/60Hz;RITTAL;3325.100
2048;FRONTPLATTE;3HE 3TE B14,10;RITTAL;
2049;FRONTPLATTE;3HE 5TE B25,2;RITTAL;
2050;FRONTPLATTE;3HE 10TE B50,6;RITTAL;3684.892
2051;FRONTPLATTE;3HE 7TE B35,3;RITTAL;3684.890
2052;GEHÄUSE;122x120x81;RITTAL;9108.211
2053;GEHÄUSE - KLEMMKASTEN;600x400x120mm;RITTAL;1512.211
2054;GEHÄUSE - KLEMMKASTEN;(BxHxT) 300 x 200 x 120 mm;RITTAL;1531.511
2055;GEHÄUSE - KLEMMKASTEN;(BxHxT) 400 x 300 x 120 mm;RITTAL;1508.511
2056;GEHÄUSE - KLEMMKASTEN;(BxHxT) 500 x 300 x 120 mm;RITTAL;1509.511
2057;GEHÄUSE - KLEMMKASTEN;(BxHxT) 400 x 300 x 120 mm;RITTAL;1568.701
2058;GEHÄUSE - PANEL;592 mm x 419 mm x 131 mm;RITTAL;6371.221
2059;GEHÄUSE - SCHALTSCHRANK;600x600x351;RITTAL;1360.601
2060;GEHÄUSE - SCHALTSCHRANK;380x300x156;RITTAL;1004.601

    • Article mapping search [Article Mapping Search] (see Section 1.1.8, “ Attribute mapping ”):

      Single variables as identifying parameters

      Single variables as identifying parameters

      Identnummer;Beschreibung;Norm;Material;Durchmesser;Laenge;Gewindesteigung
15;Zylinderschraube DIN 912;DIN 912;Stahl;20;30;
16;Zylinderschraube DIN 912;DIN 912;Stahl;20;30;1.5
17;Zylinderschraube DIN 912;DIN 912;Stahl;20;35;
18;Zylinderschraube DIN 912;DIN 912;Stahl;20;35;1.5
19;Zylinderschraube DIN 912;DIN 912;Stahl;100;315;
20;Zylinderschraube DIN 912;DIN 912;Stahl;100;300;

  • Under Data sources -> PARTsolutions catalogs you can see all the already installed PARTsolutions catalogs.

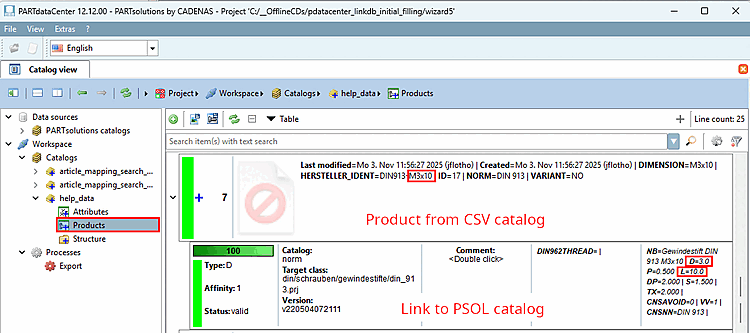

Once the item assignment has been completed, you will see the individual links between the CSV data record and PARTsolutions table row under Products.

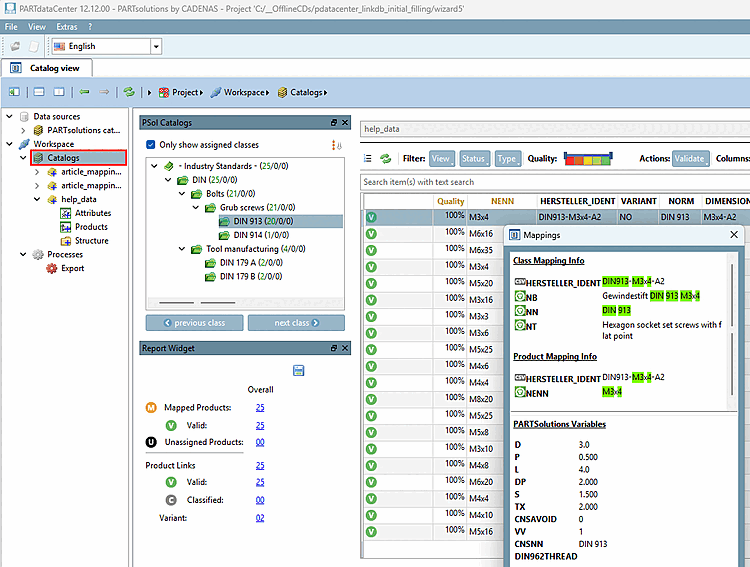

The new interface with V12.12 is more convenient. After selecting catalogs, you can see the individual links / mappings in the Mappings docking window.

If the links are approved, execute the export into the LinkDB.

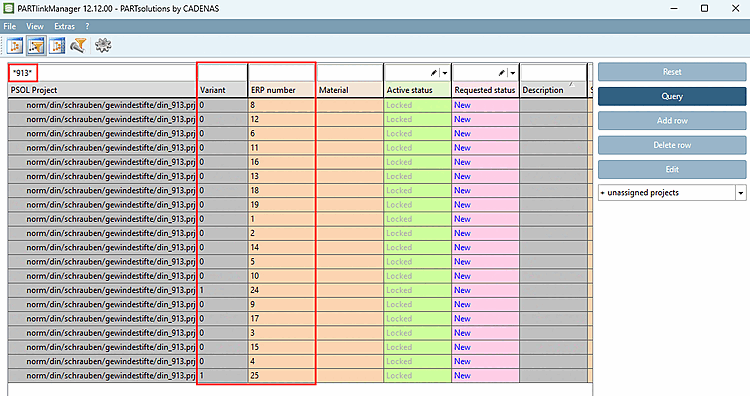

Exemplary result for DIN 913

Exemplary result for DIN 913

According to the set rules[1] the display takes place in PARTdataManager or 3Dfindit.

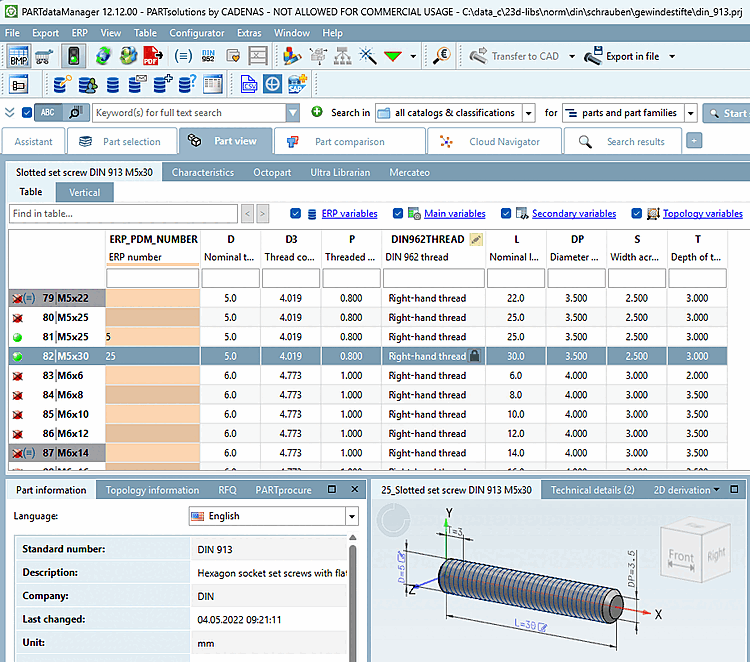

Result in PARTdataManager. The example only shows the column of the ERP number. After setting up the LinkDB accordingly, any other information (description, material, price, stock, etc.) from third-party systems can be mapped just as well.

Result in PARTdataManager. The example only shows the column of the ERP number. After setting up the LinkDB accordingly, any other information (description, material, price, stock, etc.) from third-party systems can be mapped just as well.

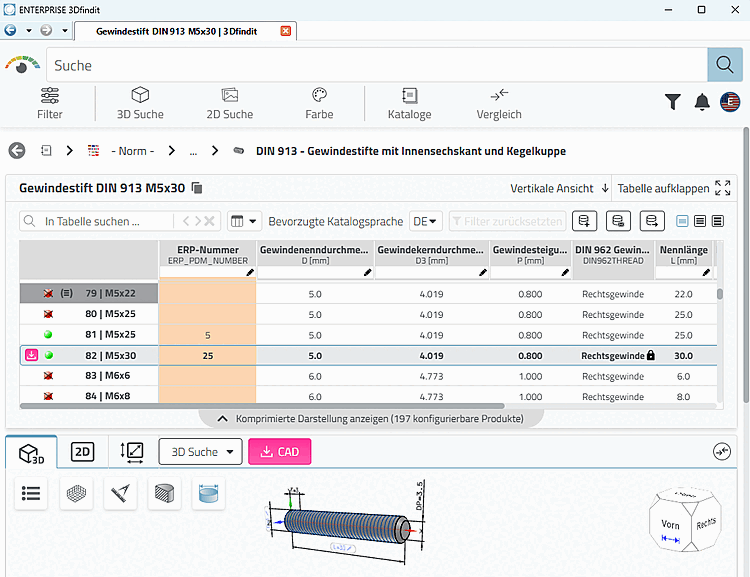

The equivalent in 3Dfindit

The equivalent in 3Dfindit



[1] See Section 5.7, “ Set up ERP environment ” in ENTERPRISE 3Dfindit (Professional) - Administration.
