5.4.2.  "Filter" dialog area with specific categories

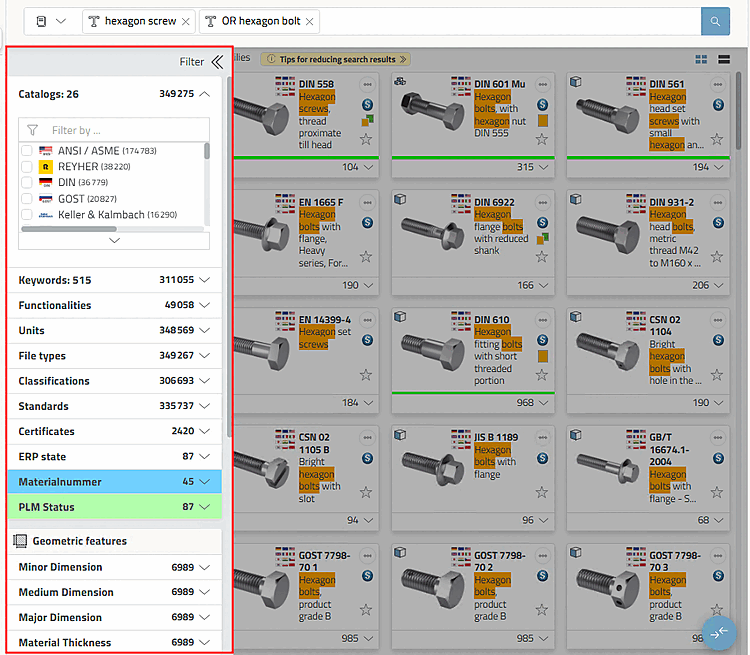

The following filters are available in the main Filter area on the left:

  • Catalogs:

  • Keywords:

  • Functionalities:

  • Units: mm, cm, inches, feet, etc.

  • File types (small selection):

    • 3D native (All formats)

    • 3D imported (All formats)

    • Documents

    • 3D crawled (manufacturer link) [3D crawled (Vendor link)]: Automatically crawled catalog with backlink to the manufacturer.

    • Individual formats...

  • Classifications: Terms from classifications

  • Standards: DIN, EN, ISO, etc.

  • Certificates:

    • RoHS certificate (restriction of hazardous substances in electrical and electronic equipment)

    • REACH certificate (Registration, Evaluation, Authorization and Restriction of Chemicals)

    • EMAS certificate (Environmental Management and Audit Schemes)

    • ISO 14001 certificate (environmental management)

    • WEEE (Waste of Electrical and Electronic Equipment) certificate

  • ERP variables:

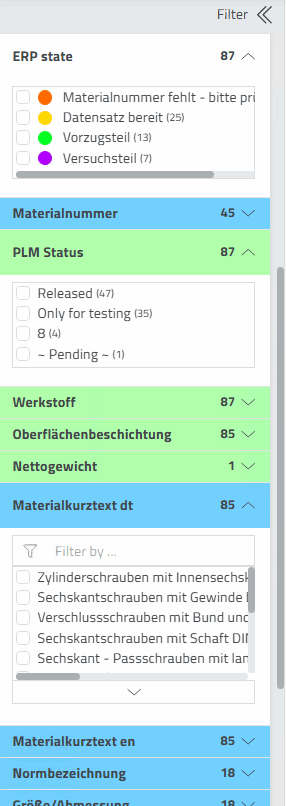

    The illustration is only an example. The display depends on the administrative settings.

    The illustration is only an example. The display depends on the administrative settings.

    • ERP status [ERP state]: As a rule, parts with ERP status "green" can be exported.

    • Material: Values from the ERP column "Material"

    • Others such as Surface, State, Custom tariff number, Storage, Price, etc.

  • Geometric features:

    • Smallest dimension [Minor Dimension]

    • Medium dimension [Medium Dimension]

    • Largest dimension [Major Dimension]

    • Material thickness [Material Thickness]

An example can be found under Section 5.4.6, “Example "Filter search across all catalogs" from A to Z ”.
