For connection elements such as bolts, nuts, rings, pins, etc. cutting in the 2D view can be prevented.

In image 1 below you can see that with activation of the respective classification attribute only the plate is cut and not the screw itself.

Image 1: Screw not cut

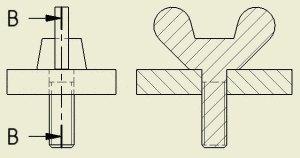

Image 2: Screw cut

Furthermore semi finished products can be classified as such.

As of V11 the respective projects are classified via CNS classification. The declaration via configuration file (ifacecommon.cfg) is cancelled.

Benefit:

Function:

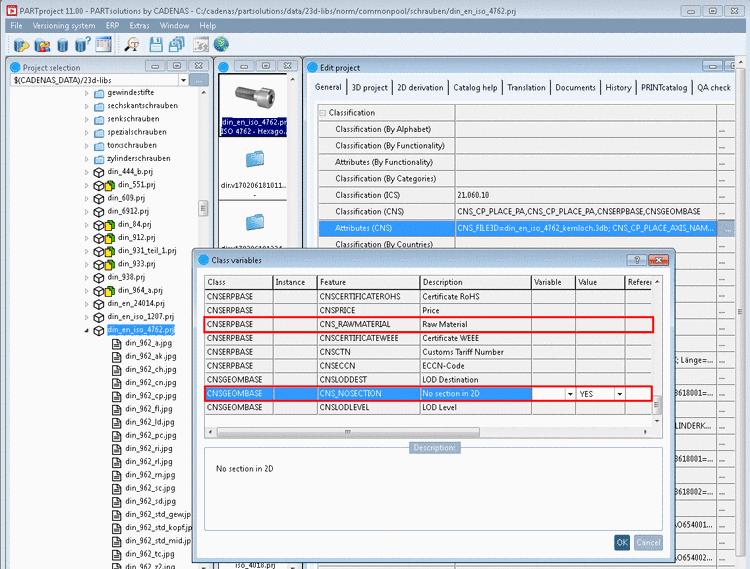

The desired attributes are set in PARTproject under Edit project -> General -> Classification > Attributes (CNS) -> feature CNS_NOSECTION or CNS_RAWMATERIAL.

	Important
	When updating to V11, please regard that in ifacecommon.cfg, the blocks [NoSection] and [RAWMATERIALS] are no more available, because respective information is now in the project. To have fully functionality, an update of CNS classification and affected catalogs is mandatory.
