The starting interface is the catalog selection. Click

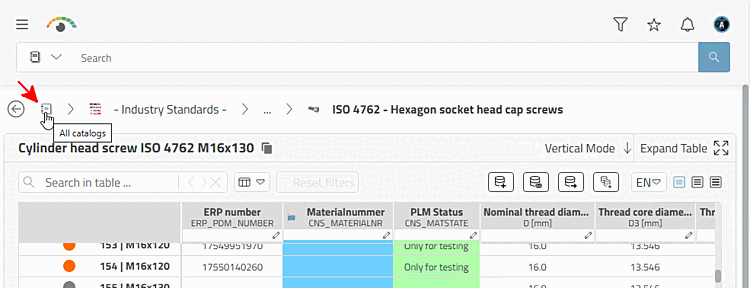

You can access
catalogues [Catalogs] → All Catalogs (Alphabetical)
come here at any time.

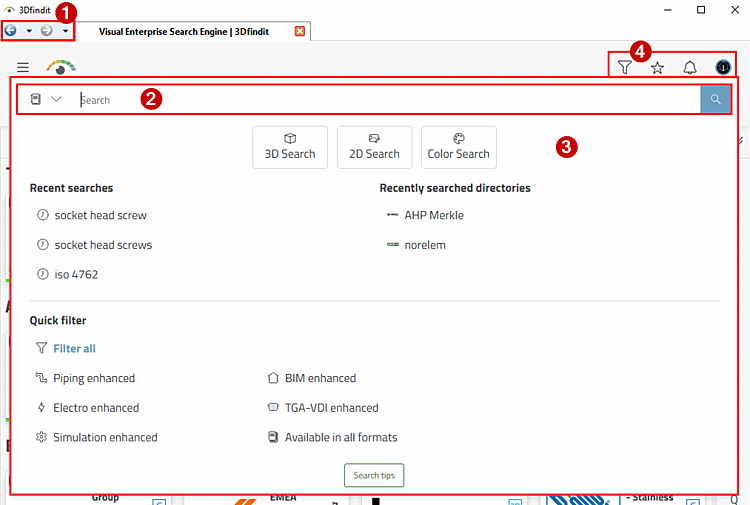

There are elements that are identical in every view.
1. forward and back navigation
2.
The search bar: Input field for full-text search and
Display area for selected search methods and filters
3. filters, search methods and comparison:
Filter: Limit the component search with
with the help of filters.
[Filter]
After clicking on the Filter icon in the pop-up window that opens, make a preselection and then apply specific category filters in the Filter dialog area.
3D search [3D Search]: The geometric search also includes the partial search and the search for geometric features.
2D search: Create a simple sketch yourself or upload a photo.
Color search [Color Search]: Select one or more colors.
Catalogs: Select a catalog in the first step.
Comparison [Compare]: Load several parts into a 3D comparison view.
4.
preferred rows
on/off,
notifications and login menu.
The login menu contains the following sub-items:
Log out [Log off]: The "Log in" dialog opens.

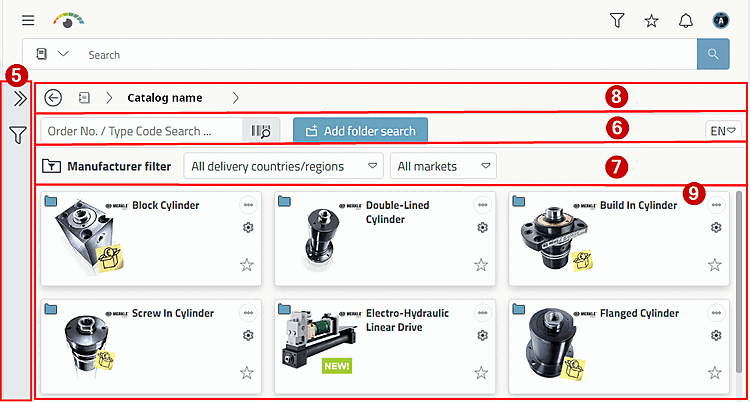

As soon as you have entered a search term, used the filter or opened a catalog, the Filter dialog area is also displayed on the left.
6. further search options and catalog language:
7. catalog filter [Catalog filter]: filter by supplier countries and markets
9. directories within the displayed catalog (part)

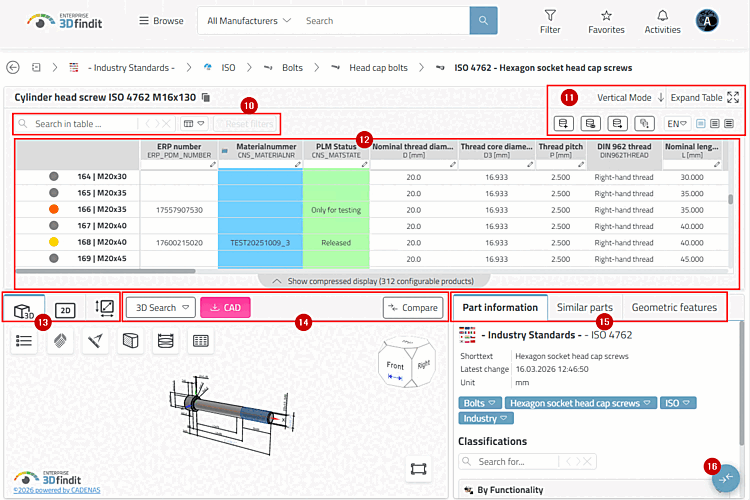

As soon as you have specified a product, you will be taken to the table and 3D view of the component.
10. tables Search field, Displayed columns (ERP variables, main variables, secondary variables), Preferred catalog language
11. ERP / database functions | table auxiliary functions
12. table data for the individual product
13. 3D view, 2D derivations and technical views [Technical views]
14. 3D search, CAD formats
download, export,
product for sale
Add to Compare
15. similar parts [Similar parts] | part information [Part information] | geometric features [Geometric features]
