4.24.4.3.2. Configure ERP environment

4.24.4.3.2.1. Tabbed page "PARTlinkManager preferences"

4.24.4.3.2.1.1. Set row color
4.24.4.3.2.1.2. Group definitions / Set column color
4.24.4.3.2.1.3. Adjust table values
4.24.4.3.2.1.4. Modify column display
4.24.4.3.2.1.5. Column position in PARTlinkManager

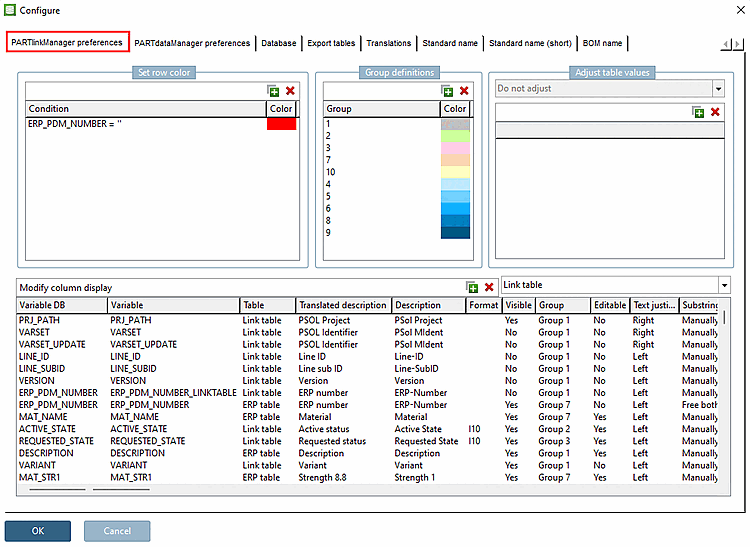

"Configure [Configure] " dialog window with the "PARTlinkManager settings" [PARTlinkManager preferences] tab page open

The dialog window is divided into the following areas:

Set row color
Group definitions
Adjust table values
Modify column display

In the Variable DB column, you can see the columns with their database names.

By default, newly created columns are given the same name as the internal variable name ( Variable column) under which they are created in the database.

	Note
This name can be changed freely, although this is not recommended. However, it must be ensured that exactly this name is used for all operations within PARTlinkManager and PARTadmin.

Note

This name can be changed freely, although this is not recommended.

However, it must be ensured that exactly this name is used for all operations within PARTlinkManager and PARTadmin.

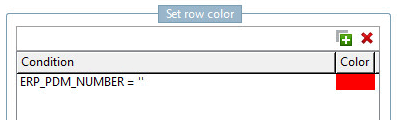

4.24.4.3.2.1.1. Set row color

Define condition [Condition]: e.g. ERP_PDM_NUMBER='' (standard setting)

Those datasets, which have no entry in the „ERP_PDM_NUMBER“ field, are displayed in red in the PARTlinkManager.

Define color [Color]: Click on the color to change it in the selection window.

Set row color

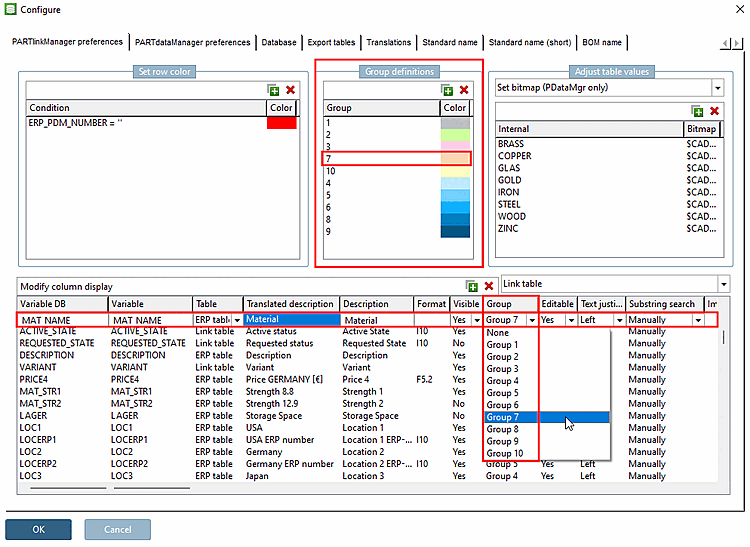

4.24.4.3.2.1.2. Group definitions / Set column color

For details see Section 4.9.7, “ Background color for ERP/PDM columns / plinkcommon.cfg -> Block [GROUP_COLORS] -> Key GROUP<number> ”.

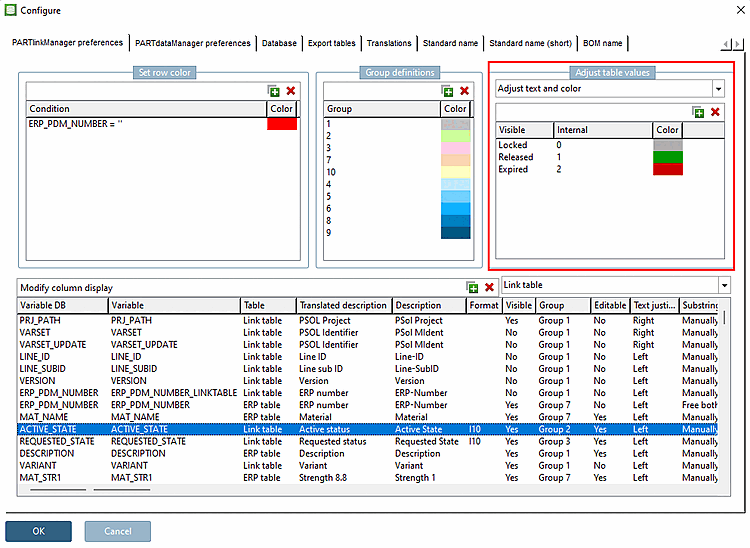

4.24.4.3.2.1.3. Adjust table values

Adjust text
Detailed information on this can be found under Section 4.9.1, “ Customize table values -> Customize text / plinkcommon.cfg -> Block [MAPPING_<COLUMN_NAME>] - Key for visible text ”.
Adjust color
Detailed information on this can be found under Section 4.9.2, “ Adjust table values -> Adjust color / plinkcommon.cfg -> Block [COLMAPPING_<variable name>] - Key COLORCODE<number> ”.
Adjust text and color
Detailed information on this can be found under Section 4.9.3, “ Adjust table values -> Adjust text and color / plinkcommon.cfg -> Block [MAPPING_<variable_name>] -> Key for visible text ”.
Adjust color with condition
Detailed information on this can be found under Section 4.9.4, “ Adjust table values -> Adjust color with condition / plinkcommon.cfg -> Block [COLMAPPING_<column name>] -> Key "COLORCOND<number>" ”.
Set bitmap (PDataMgr only)
Detailed information on this can be found under Section 4.9.5, “ Adjust table values > Set bitmap (PDataMgr only) / plinkcommon.cfg -> Block [BMPMAPPING_<column_name>] - Key "BMPCODE<number>" ”.
Set bitmap with condition (PDataMgr only)
Detailed information on this can be found under Section 4.9.6, “ Adjust table values -> Set bitmap with condition (PDataMgr only) / plinkcommon.cfg -> Block [BMPMAPPING_<column_name>] -> Key "BMPCOND<number>" ”.

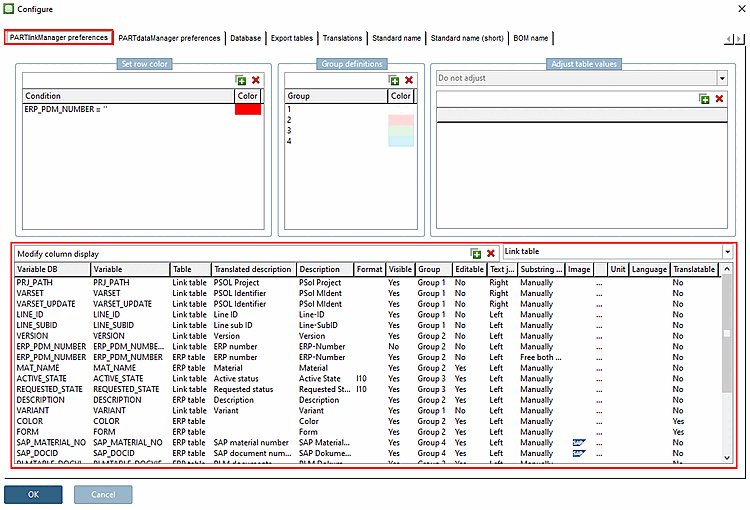

4.24.4.3.2.1.4. Modify column display

In the Configure column display [Modify column display] dialog area, all columns of the link table [Link table] are listed one below the other and can be configured in this view.

See Section 4.10, “ Configure column display - plinkcommon.cfg -> Block [LINKDBFIELDS] - ”.

4.24.4.3.2.1.5. Column position in PARTlinkManager

Click on the corresponding line and move it up or down.
