On the left at the beginning of each line you will see a status icon which indicates the export option or provides further additional information.

By default, the export condition [Export condition] is defined in such a way that an export without an ERP number is not possible.^[15]

The control logic is indicated by corresponding icons:

Example 1:

Simple status icons

Example 2 is somewhat more differentiated. It shows a slightly modified control logic and other status icons.

More differentiated status icons

	Part available at one location + has ERP number	Export possible
	Part available at three locations + has ERP number	Export possible
	Part not available at any location + has ERP number	Export not possible
	Part not available at any location and no ERP number	Export not possible

The exact The meaning of the icons and colors can be found in the ERP legend [ERP Legend].

By the If you try to export a part without export authorization, it will be displayed in the Activities dialog box Notification pops up. You can send notifications at any time via the icon notifications [Notifications] open.

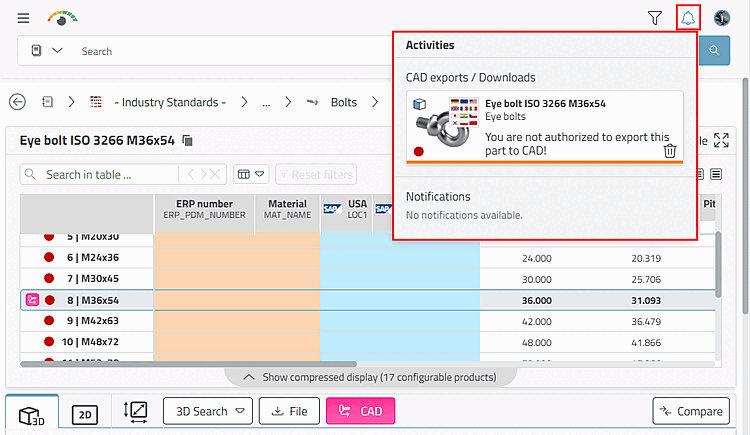

The following illustration shows a case with a missing ERP number; the status icon is therefore red.

You do not have authorization to export the part to CAD! [You are not authorized to export this part to CAD!]

In a standard workflow, you must now either add an ERP number or request an ERP number.
