3.5.2.1. Modeling Single Parts

LOG (Level of Geometry)

Parts should preferably be modeled with rule-based bodies and kept as simple as possible (cylinder = extrusion of a circle instead of rotation of a rectangular). For special cases (e.g., sweeps) it may be necessary to rotate a non-rectangular shaped sketch. This is geometrically allowed for high detail level (LOG) but generates more computational operations for the CAD file creation and results in a higher possible error rate when creating the geometry in CAD. In particular, see Section 3.5.3, “Regular Bodies for VDI Models” and Section 3.5.2.3, “LOG (formerly called "LOD")”.

Alignment

The global alignment of the objects (direction of the X/Y/Z axes) must be set to match the orientation of the target systems.

[Note]Note

It is also highly recommended to avoid many rotations within parts (and assemblies) as these rotations create more operations in the CAD interfaces.

These are:

  • Mechanical engineering (X=right / Y=top / Z=left)

  • BIM[5] / MEP[6] / Architecture (X-right / Y=rear / Z=top)

    When creating the project, select the template for 3D project Architecture with LOG (Z-axis above).

    Vorlage für 3D-Projekt Architektur mit LOG (Z-Achse oben)

    Vorlage für 3D-Projekt Architektur mit LOG (Z-Achse oben)

The alignment for MEP objects is explicitly described in VDI 3805 (more details can be found at Section 3.5.2.6, “Sample objects”.)

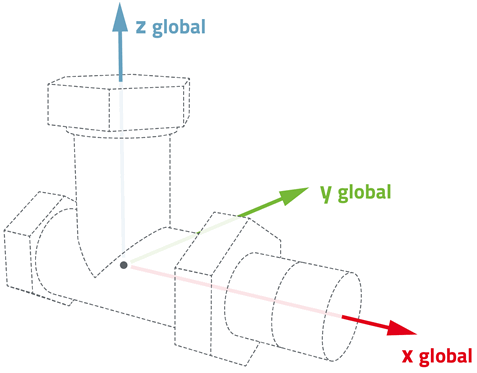

Axis orientation

Axis orientation

For pipe fittings / pipe accessories, the prescribed modeling guidelines of VDI 3805 in the associated sheets are also binding.

Every domain (in VDI 3805 grouped in sheets) of MEP parts has its own orientation. Pumps, valves and others have different positions of the absolute zero point.

[Important]Important

The positioning of the absolute zero point (0/0/0), or the alignment of the X-axis on the pipe axis is prescribed in VDI 3805.

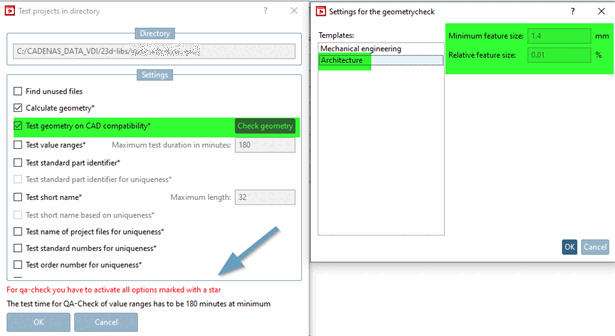

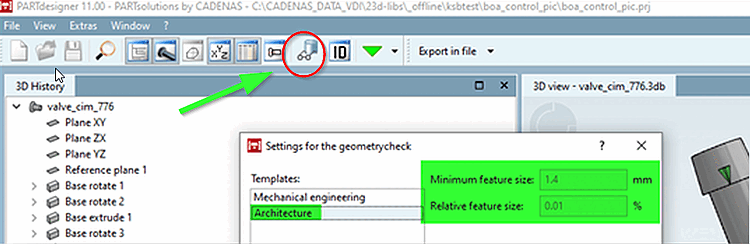

In PARTdesigner the Check part [Test part] function (template: "Architecture") must be carried out successfully and without errors for every geometry and sketch change.

This is the basic requirement for a "TestMeta" (geometry and variant check at project and directory level) in order to achieve QA level >4. See the eCATALOGsolutions manual in the section Section 5.8.2.1.12, “ Test project / Test directory ” directory.

Sketches with a simple structure, referenced and parameterized on levels and the immediate checking of the generated geometry with the PARTdesigner Geometry checker ( Check part [Test part] function) in the correct setting is the elementary basis for an easy-to-read data structure that can be maintained in a short space of time.




[5] BIM: Building Information Modeling

[6] MEP: Mechanical, Electrical, Plumbing
