Add variant to link database
![[Note]](https://webapi.partcommunity.com/service/help/latest/pages/cn/3dfindit/doc/images/note.png) | Note |
|---|---|
Whether a button is displayed, i.e. a function is available, is subject to administrative default settings and can also be controlled depending on the role, e.g. Admin may, but User may not. | |
If you want to create a component in the LinkDB with a table value that is not contained in the characteristic attribute table (variant), use this function.
Select a data set that is closest to the variable to be changed.
Click on the Add variant to link database button.

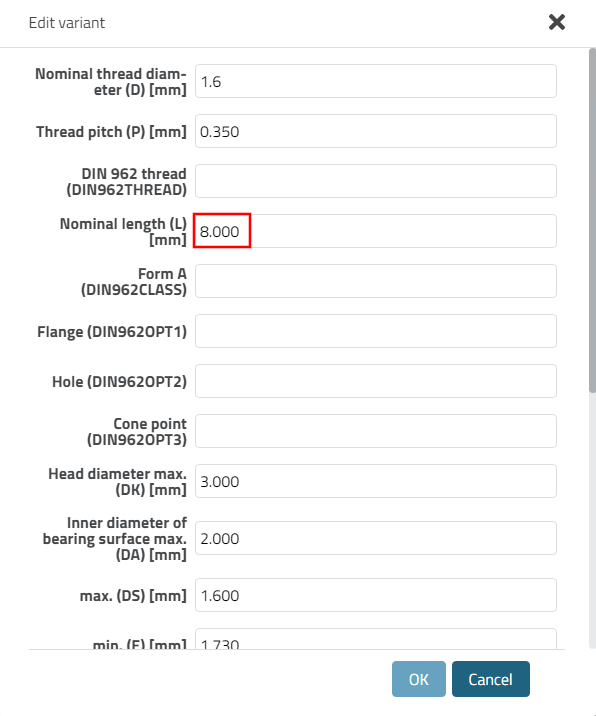

-> The Edit variant dialog box, which lists all variables and values in the characteristic attribute table, opens.

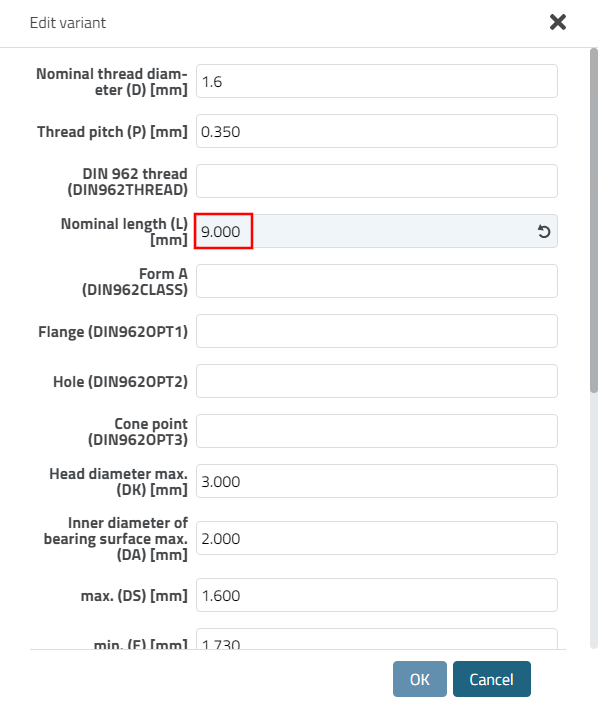

For example, change the value 8 from Nominal length (L) to 9, which does not appear in the characteristic attribute table, and confirm with .
-> The New ident number [new ident-no.] dialog opens.
Enter the ERP number [ERP Number], select the desired material [Material] and confirm with . The ERP number [ERP Number] can also be generated automatically depending on the workflow, in which case the field is not displayed.
The dialog remains open. You can now create another entry with a different material or close the dialog by clicking .

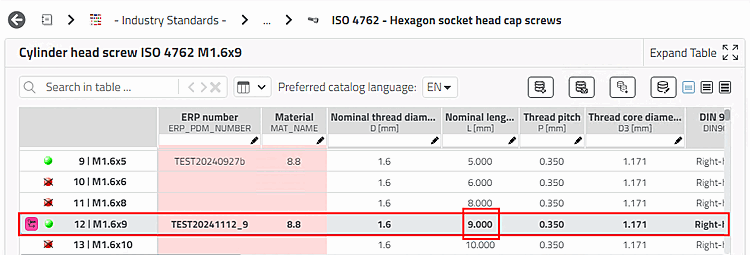

The variant is now displayed in 3Dfindit.
