Provide the required preview images in the directory structure.

Note Preview images have to be provided in the size of 400x400 Pixel in the PNG format with 8 Bit.

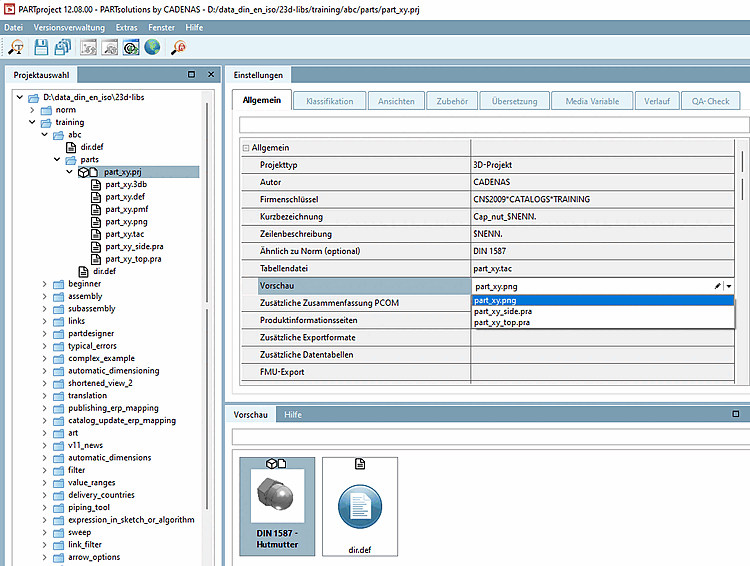

Select the desired project and set the desired preview image in the list field under Settings -> General tab -> Preview.

-> Only now will the preview image be displayed in the directory structure of PARTproject is displayed.

Select „part.png“.

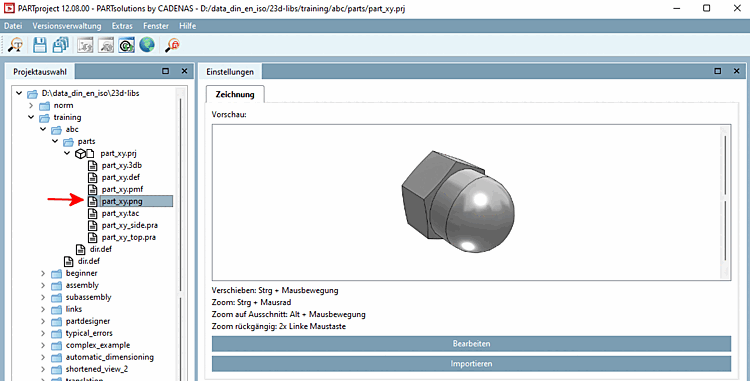

-> In the Edit project dialog area, the preview image of the component is displayed under Preview.

Optional, if you want to replace the preview image with another one:

Click on the Import button and select the new preview image in the Explorer.

-> In PARTproject the preview image of the cap nut is now replaced. The preview shows the corresponding representation.

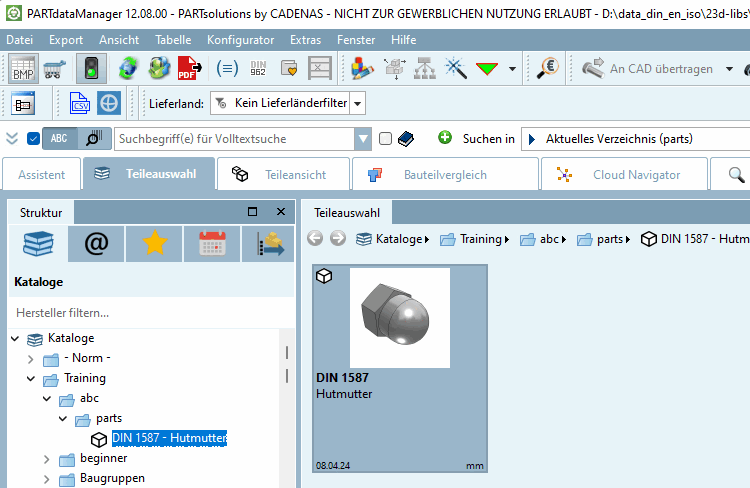

-> Later, when the project is called up, the corresponding preview image appears in the part view of the PARTdataManager:^[14]

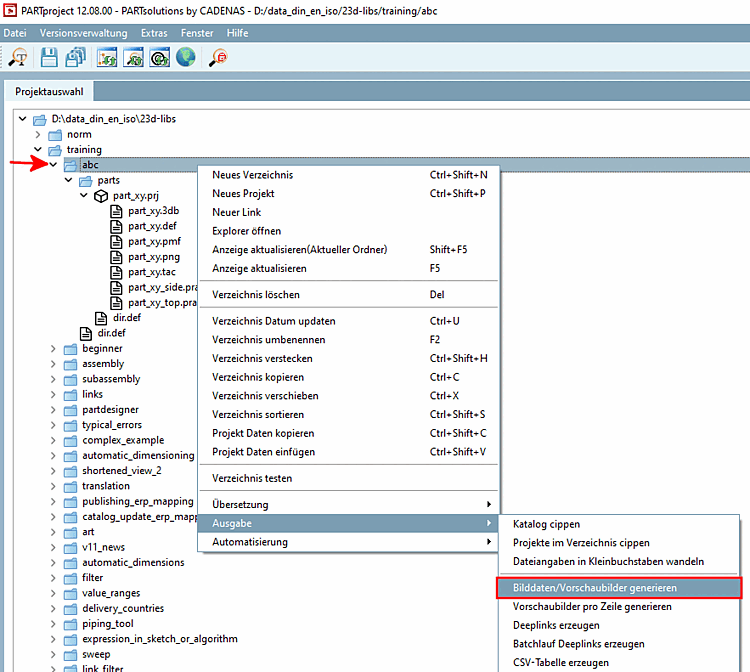

Note The preview images can be created automatically using the context menu command Generate [Generate image data/preview images] image data/preview images. See Section 5.8.2.1.15.4, “ Generate image data/preview images in batch run ”.
