1.10.1.3.1.10.  Edit tables in batch run: Insert sketch

Especially in projects with many 3dbs or with connection points used again and again, certain sketches are multiply used, where copying is very time consuming. Much more simple and time saving is copying of sketches via batch run.

With the function Edit tables in batch run, option Insert sketch, a selected sketch is added in all projects and there in all 3dbs.

The new sketch is added to the 3D history [3D History] with a consecutive number.

  1. Save the sketch to be copied (*.hsk file) at any location.

  2. Open the context menu command Automation -> Edit project in batch run [Edit project in batch mode] via the same project (to copy to all 3dbs there), another project or a directory.

    -> The Edit tables in batch run dialog box opens.

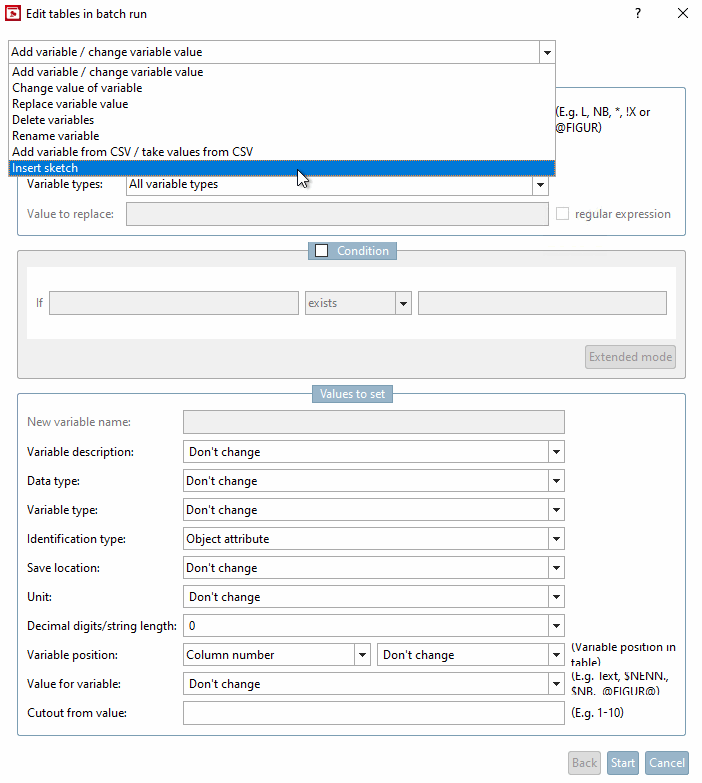

  3. Select the Insert sketch option in the top list field.

    Insert sketch

    Insert sketch

  4. Select sketch: Click on the Open file button and enter the path to the sketch file.

    Layer name [Plane name]: Enter the layer name on which the sketch is to be inserted.

    If layer does not exist [If plane does not exist]: Select either the Do not insert sketch [Do not add sketch] option or a specific layer.

    Edit tables in batch run " dialog box

    Edit tables in batch run " dialog box

  5. Click Start.

    -> The sketch is inserted in all 3dbs in all projects.

    [Important]Important

    Duplicates of connection points are listed in a notification.

    CP Name (IP1.0) is not unique

    CP Name (IP1.0) is not unique

    Duplicates are allowed if only one connection point is active. However, this must be ensured!
