Select the License management [License administration] entry in the category tree [Category].

Select the Licenses tab page.

Select a licensed product at the top right.

-> You can see the exact designations in the product code [Product code] column.

-> Detailed license information can be found under License key and Hostid/Roll [Role].

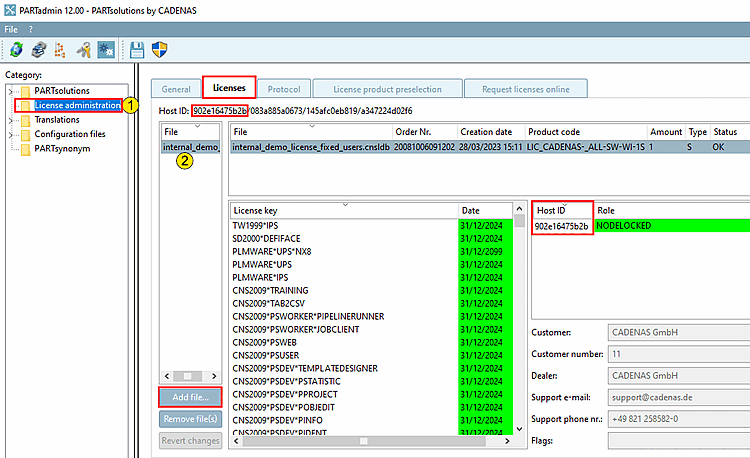

Licenses

Check that all licenses received (one or more) are listed.

If the license file "*.cnsldb" is not listed or you have received a new license file that you would like to add to the list:

--> The file is now entered in the license management.

Note Remove file [Remove file(s)] (s): ... deletes the selected file(s). This not only changes the entry in the license management, but also the corresponding *.cnsldb file in the directory lic / Keys Hers 3Dfindit installation. However, you can use it in case of an emergency. from the backup file *.bak produce. Just rename the license file on *.cnsldb.

Select the license file [License file] in the dialog area at the top right.

Select the line of the desired licensed product

--> The individual license keys [License key] with expiration date [Expiration date] and status [Status] are listed.

Check whether the hostid [Host ID] of the license (bottom right) matches one of the hostids [Host ID] displayed above (see Fig. „Licenses“).

For the license for the respective module (PARTdataManager etc.) to take effect, Status must be set to OK (or Expires ) must be set.

If this is the case, the licensing was successful.

Possible status messages are:

To complete the process, click on the Save changes button! (If not already done when importing the licenses)

--> 3Dfindit is now "ready for operation".

View software and support information

For each selected license file [License file] (*.cnsldb) / product code [Product code], you will see customer information [Customer information] and dealer information [Dealer information] at the bottom right.

Providing the customer number [Customer number] makes it easier for support to provide you with assistance.

Here you will also find the dealer [Dealer] responsible for you with support e-mail [Support e-mail] and support telephone number .

Customer information and dealer information [Dealer information]

Check catalog licenses

Under PARTadmin > PARTsolutions > Catalogs > Update > Online, catalogs without a valid license are displayed in a separate section Catalogs, no valid license.

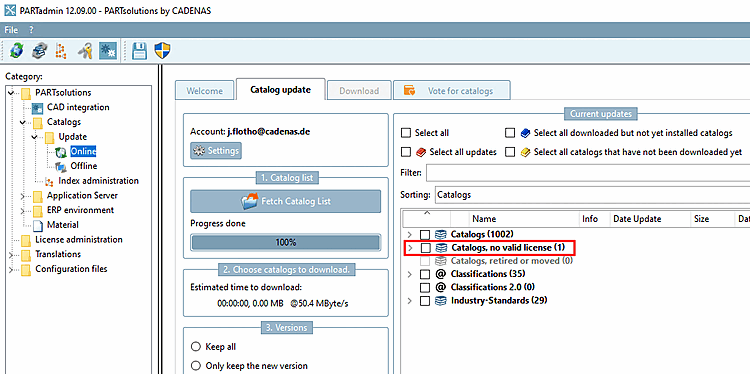

Catalogs, no valid license
