1.10.1.3.2.23.  Sketch history: Icon for rotation axis, pattern and user comments

Some actions are marked directly in the sketch history [Sketch history] with an icon:

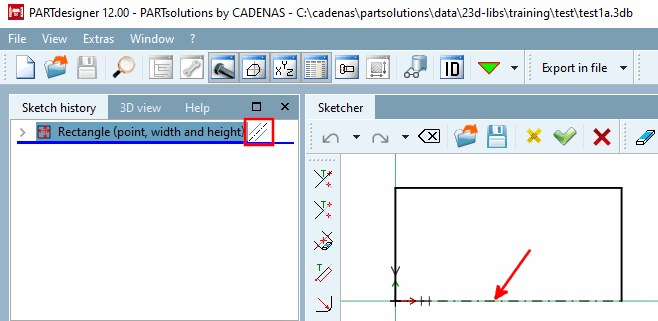

  • Rotation axis

  • Reference point for rotation pattern [Reference point for rotated pattern] (can be removed via context menu command)

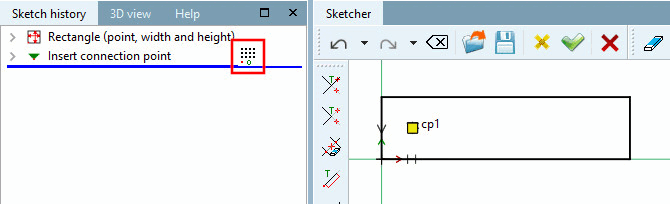

  • Pattern origin (can be removed via context menu command)

  • Custom comment

    For certain features, a user comment can be attached so that important steps can be identified (e.g. if there are a lot of combinations with conditional deletion, etc.).

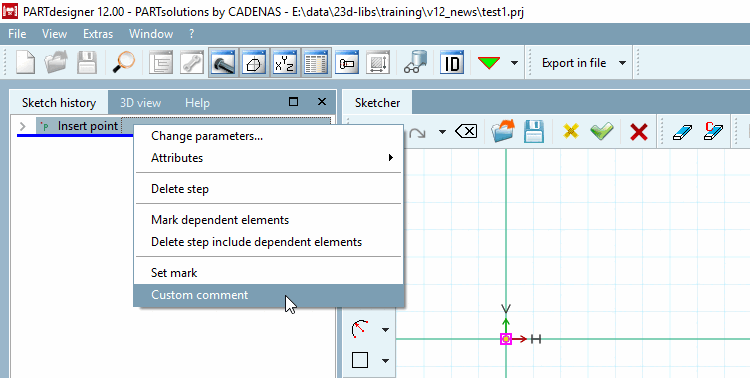

    1. In the context menu of each design step, you will find the User comment [Custom comment] command.

    2. The corresponding dialog box opens when you click on it. Enter your comment and confirm with Ok.

    3. Beside the feature, now an icon is displayed. In order to show the comment as tooltip move the mouse cursor over the icon.

      The icon disappears once the comment's content is removed.
