6.4. QA status and version management icons

6.4.1. QA status symbols

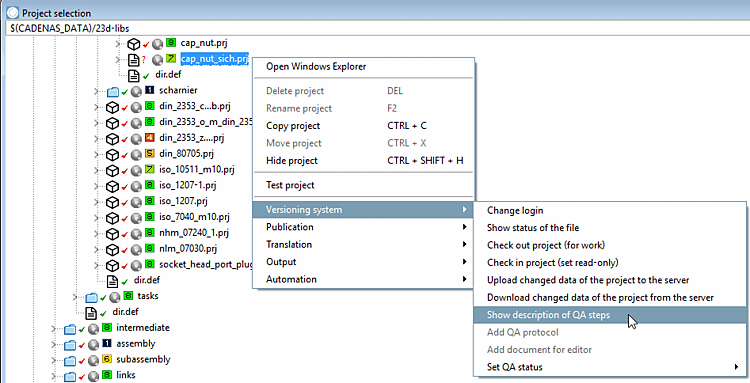

On each directory level, the context menu command Show description of QA steps is available.

Show description of QA steps

-> The Legend dialog box opens.

Dialog window legend [Legend]

You can also access the same dialog box via Version management menu [Versioning system] -> Legend Q [Legend QA levels] A levels.

	Not yet released
	Released for editing (by customer)
	Editing
	Validated by editor
	Automatic test passed
	Validated by external QA
	Validated by internal QA
	Validated by customer

The QA status levels show the progress of the project and indicate whose turn it is!

The following list shows the processes in the assignment of client - CADENAS. The detailed evaluation using the history analyzer can be used to determine exactly which project was in which QA stage and for how long. See Section 6.9, “ History analyzer ”.

CUSTOMER
- Function
  Check-in of data, DXF, TIF, BMP
  Release of data
Editor (Modelling) [CADENAS]
- Function
  Modeling and release of data for control
Automatic quality assurance by PARTqaChecker / TestMeta [CADENAS]
- Function
  Check of data with PARTqachecker and release
  See Section 5.8.2.1.12, “ Test project / Test directory ”.
Quality assurance [CADENAS]
- Function
  Check of data by QA leader (external) and release
  Check of data by QA leader (internal) and release
CUSTOMER
- Function
  Check by customer and release for CD and WEB

The following table shows when it is each person's turn according to their role and what options are available for changing status.

In stages 1 and 7, for example, it is the client's turn alone.

Changes from level 4 to 5 are set by an automatic test.

In levels 2 to 6, the ball is in CADENAS 's court.

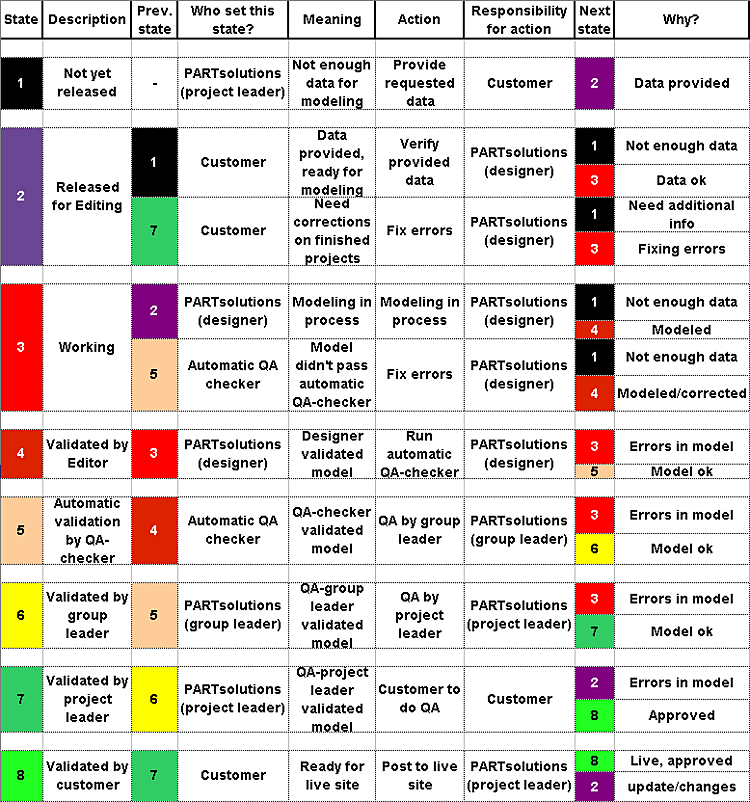

Matrix QA level - Role

As the "Responsible for action " column shows, there is a role dependency:

Editor = PARTsolutions (Designer)

-> Setting of QA status 1-4
QA group leader = PARTsolutions (group leader)

-> Setting of QA level 6
QA project leader = PARTsolutions (Project leader)

-> Setting of QA status 7
Catalog manufacturer

-> Setting of QA status 1,2 and 8

External worker+Partial Publisher (special case, not part of above matrix)

	Note
	Role external editor+partial publisher: The scheme described at Fig. „Matrix QA level - Role “ also applies here in principle, except that further status changes are possible due to the role overlap "External editor" <-> "Client".

	Note
	The External editor+Partial publisher role has the right to partially publish permanently integrated. However, this right can be administratively assigned to any role. For more information on partial publishing, see Section 6.10.5, “ Generate QA status.. \| Publish live stand.. ” -> Special notes.

Modification options:

based on status 1 -> 2,3
based on status 2 -> 1,3
based on status 3 -> 1,2,4
based on status 4 -> 1,2,3

Note
Status 5 can only be reached by data check via PARTqaChecker (TestMeta).
See Section 5.8.2.1.12, “ Test project / Test directory ”.
based on status 5 -> 1,2,3,6,8
based on status 6 -> 1,2,3,7,8
based on status 7 -> 1,2,3,8
based on status 8 -> 1,2,3

Project Coordinator

The role "Project Coordinator" is only available for a narrow circle of people. It enables special settings and error corrections.

Note
The use of the role "Project Coordinator" can be seen in the history.

	Note
	The following applies to all roles for status changes at directory level: The current directory status can also be set under New QA status in addition to the above information, as subordinate directories and projects can have a different status.
