1.10.1.3.1.12.  PARTproject: Different display and check-in modes for files in the directory tree

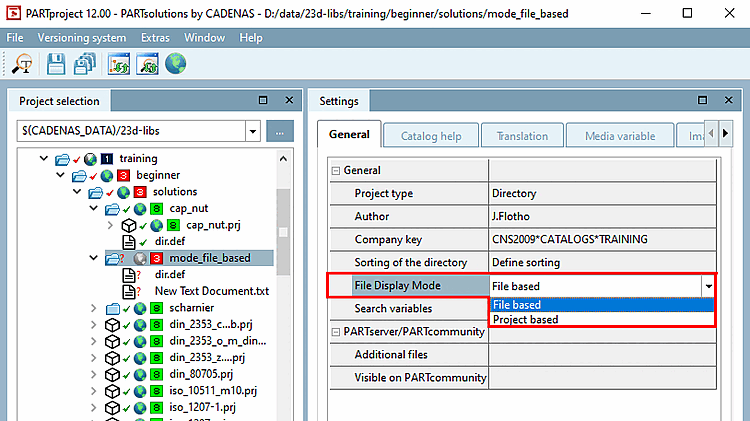

With V12, there is a new option in PARTproject under Settings -> General tab -> General item you will find the new option File display mode [File Display Mode], which can be used to determine the behavior regarding display in the directory tree under Project selection and the behavior regarding SVN checkin.

  • File display mode [File Display Mode]: Project-based [Project based] (default)

    • In the correspondingly declared directory, all files belonging to the project are displayed on the left under Project selection. A file belongs to the project if it is referenced by it (which can be done in different ways).

    • Additional files are only displayed if they are declared under PARTserver/PARTcommunity -> Additional files.

    • No capital letters, spaces or special characters may be used. Otherwise, error messages will appear when executing Upload changed files in directories/projects to the server [Upload changed files in directories / projects to the server]:

      Files with not allowed characters are stated in the error message.

      Files with not allowed characters are stated in the error message.

      Files with not allowed characters have to be renamed.

      Files with not allowed characters have to be renamed.

  • File display mode [File Display Mode]: File-based [File based]

    • Directories with this mode applied should not contain project files! They are used, for example, if the catalog has a configurator or assistant.

    • All files in the directory declared in this way (and its subdirectories) are displayed on the left under Project selection. In the figure above, the file New Text Document.

    • Using upper case characters, empty spaces and special characters is allowed.

    • When executing Upload changed files in directories/projects to the server [Upload changed files in directories / projects to the server], all files in the directory (and its subdirectories) are checked into SVN.
