6.10.2.4. The most important use cases

6.10.2.4.9. Splitting of project with value range variable in two projects with fixed variable

The old project din_80705.prj with the value range variable DIN962THREAD was split into 2 target projects din_80705_r.prj and din_80705_l.prj with a fixed variable DIN962THREADVIS.

In this case, different target projects must be opened on the right-hand side depending on the selection in the value range on the left-hand side (old project). To do this, create the appropriate conditions [Conditions] for all required target projects.

In this case an automatic assignment was possible only partly: The first target project has been recognized automatically, the second not. And no conditions have been created.

Proceed as follows:

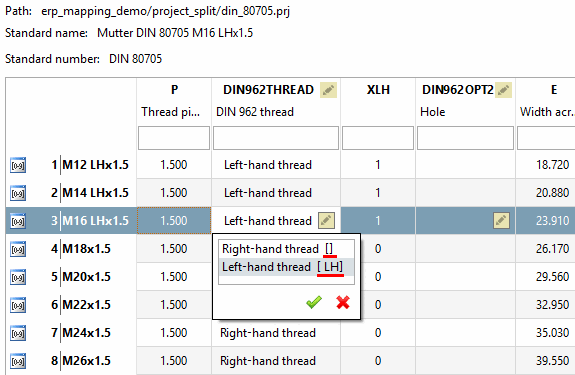

Test both value range values. If left-hand thread is selected, the wrong target project is displayed on the right.

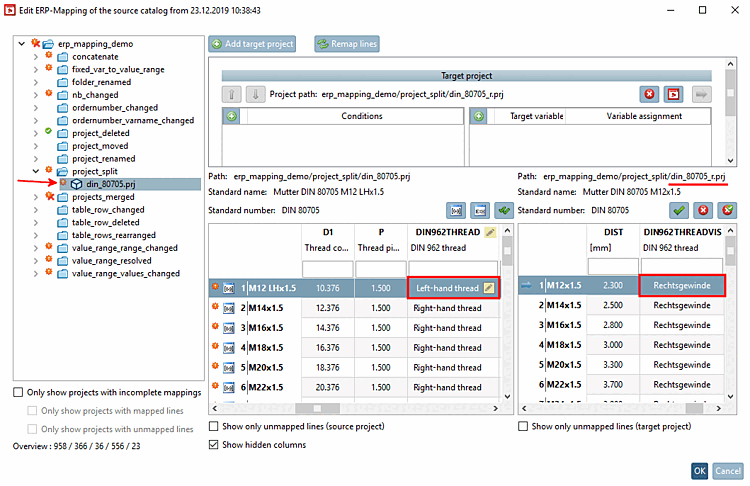

Wrong target project

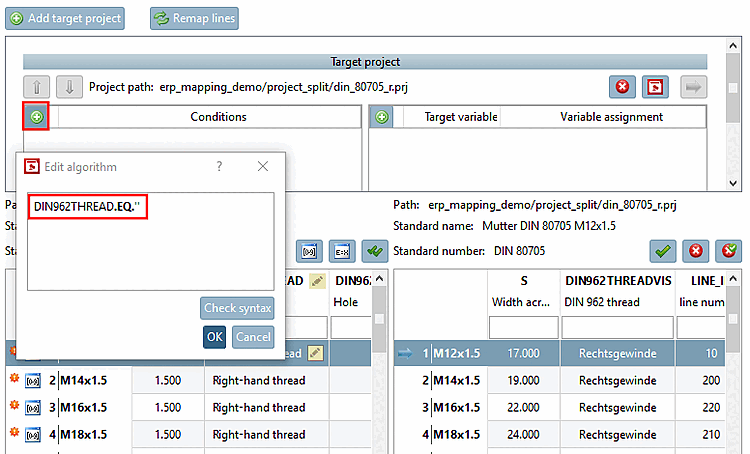

Click on Add condition and enter the first formula for the project din_80705_r.prj in the Edit formula [Edit algorithm] dialog that opens.
```
DIN962THREAD.EQ.''
```
Add condition
Click on Add target project to create the second target project.

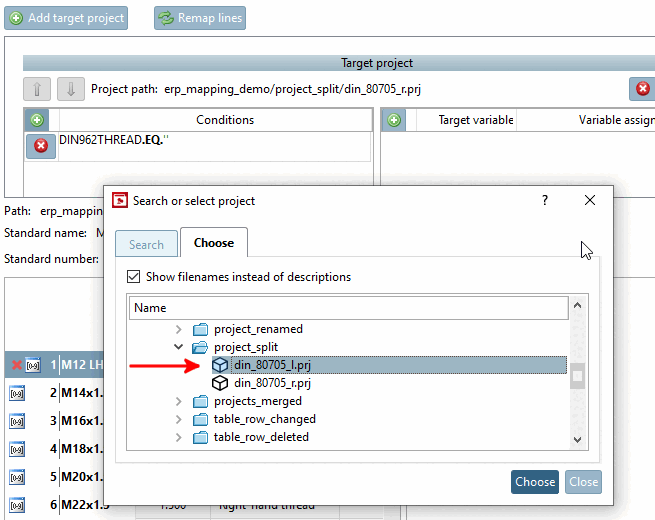

-> The Search or select project dialog box opens. Select the desired target project on the Select [Choose] tab page.^[72]

Select target project
Scroll down in order to see the second project.

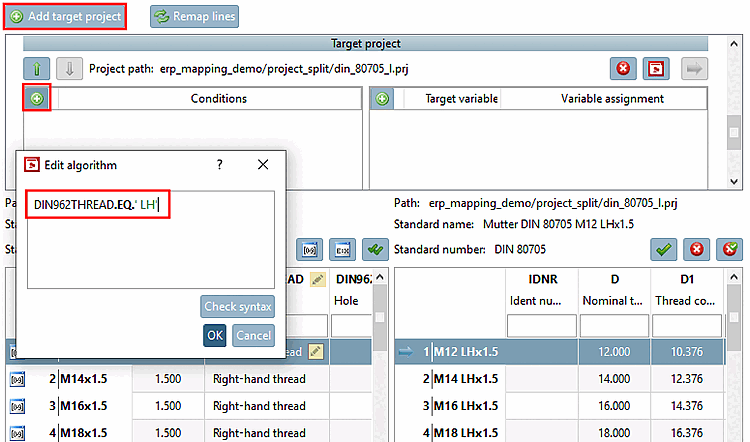

Click on Add condition and enter the second condition in the Edit formula [Edit algorithm] dialog box that opens.
```
DIN962THREAD.EQ.' LH'
```
Algorithm entered

Note
When you open the value range field, you will see the internal value (which is the relevant one) in square brackets after the display value.

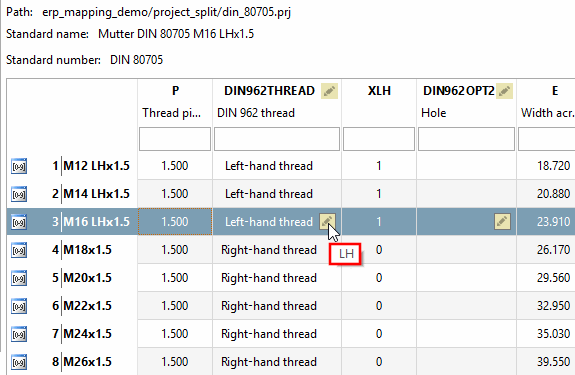

At mouseover a tooltip is displayed.

Pay attention to the exact syntax. In this example, for example, there is a space before "LH". If you are not sure, you can find the exact syntax in the variable manager [Variable Manager], in the characteristic algorithm [Attribute algorithm] of the variable DIN962THREAD. Copy & paste is also available here.
```
IF(DIN962THREADVIS.EQ.'Linksgewinde')THEN
 DIN962THREAD=' LH'
ELSEIF(DIN962THREADVIS.EQ.'Rechtsgewinde')THEN
 DIN962THREAD=''
ENDIF
```
To test, select a few different lines with both value range options. If the correct target project with correct value range values is always displayed on the right-hand side, everything is OK and you can click on Confirm all assignments [Verify all mappings] button.

	Note
When you open the value range field, you will see the internal value (which is the relevant one) in square brackets after the display value. At mouseover a tooltip is displayed.

^[72]The full-text search index must be generated for the search.
