5.5.4. Step 4: Edit project

5.5.4.1. Create geometry *.3db
5.5.4.2. Create the characteristic attribute table *.tac
5.5.4.3. Create preview image *.png

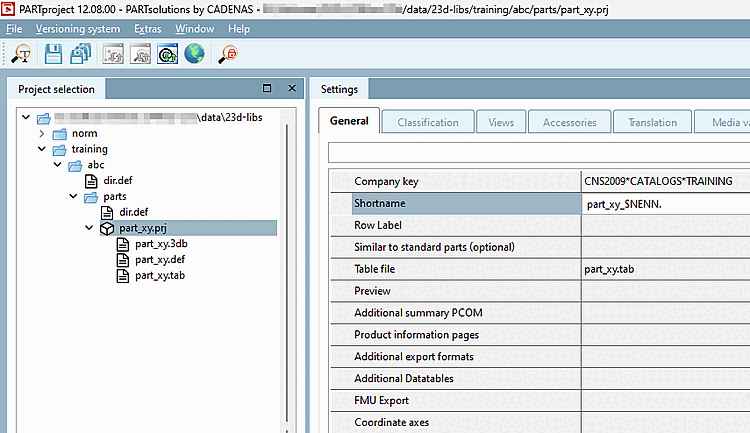

Some fields of the dialog area Edit project are already filled out due to the default. Of course, you can adjust them according to your needs.

[Note]Note

  • The field Short name (max. 16 characters) has to be filled out mandatorily.[15]

  • Please regard, when creating an assembly, that the corresponding single parts are in the same directory as the assembly itself. In general: your catalog under 23d-libs is the "stage".



[15] At the latest for the test run when cipping the catalog.
