Chapter 5. Strategic Parts Management
5.10. Table display in 3Dfindit/PARTdataManager and (PARTlinkManager)
|  |
| Prev | Next |
- 5.10.1. Customize table values -> Customize text / plinkcommon.cfg -> Block [MAPPING_<COLUMN_NAME>] - Key for visible text
- 5.10.2. Adjust table values -> Adjust color / plinkcommon.cfg -> Block [COLMAPPING_<variable name>] - Key COLORCODE<number>
- 5.10.3. Adjust table values -> Adjust text and color / plinkcommon.cfg -> Block [MAPPING_<variable_name>] -> Key for visible text
- 5.10.4. Adjust table values -> Adjust color with condition / plinkcommon.cfg -> Block [COLMAPPING_<column name>] -> Key "COLORCOND<number>"
- 5.10.5. Adjust table values > Set bitmap (PDataMgr only) / plinkcommon.cfg -> Block [BMPMAPPING_<column_name>] - Key "BMPCODE<number>"
- 5.10.6. Adjust table values -> Set bitmap with condition (PDataMgr only) / plinkcommon.cfg -> Block [BMPMAPPING_<column_name>] -> Key "BMPCOND<number>"
- 5.10.7. Background color for ERP/PDM columns / plinkcommon.cfg -> Block [GROUP_COLORS] -> Key GROUP<number>
- 5.10.8. Determine column color by indicator in ERP column (very special) / plinkgroups.cfg -> Block [<Role_name>] -> Key "COLORNUMBERTREE"
In this section you will find explanations on the table display in 3Dfindit / PARTdataManager and PARTlinkManager.[76]
![[Note]](https://webapi.partcommunity.com/service/help/latest/pages/cn/partwarehouse/doc/images/note.png)
The following listing gives an overview.

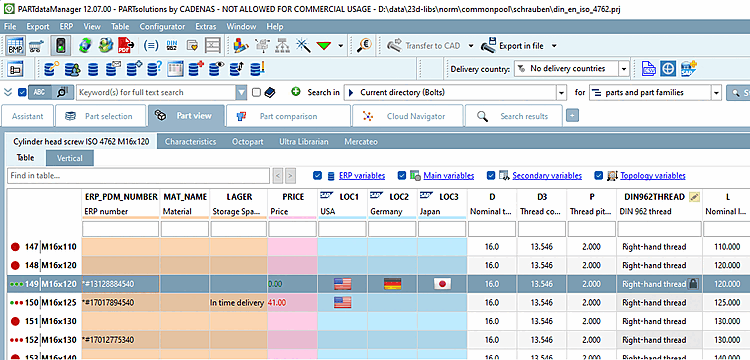

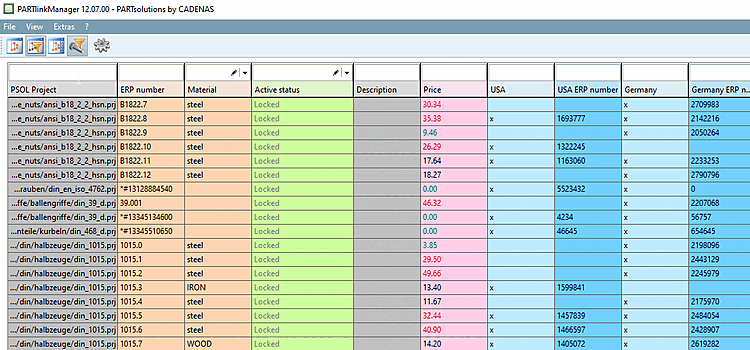

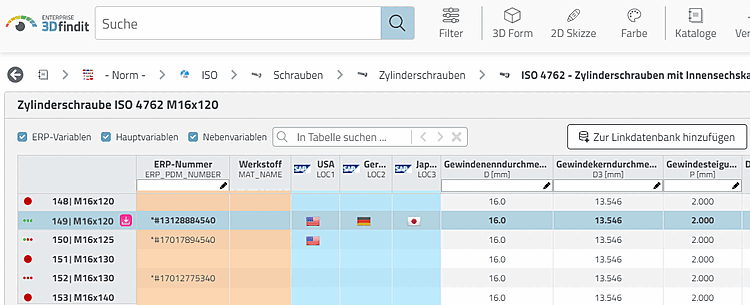

To simplify the selection of individual characteristics in the table (3Dfindit/PARTdataManager or PARTlinkManager ), it makes sense to use colors, images and conditions.

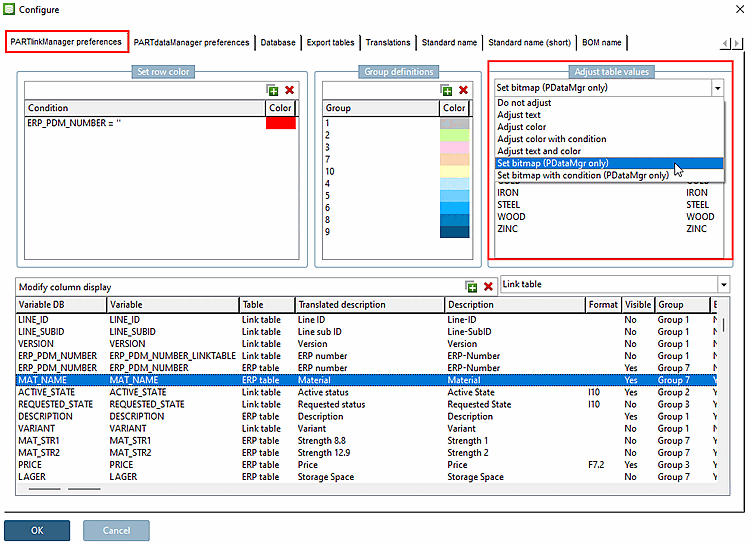

Settings for this are set under PARTlinkManager -> Extras menu -> Configure ERP environment -> PARTlinkManager settings [PARTlinkManager preferences] tab -> Customize table values [Adjust table values] area.
The corresponding keys are not part of a default configuration. If the setting option under Customize table values [Adjust table values] is used, this action creates extra blocks and keys in the configuration file.
In the PLDBDEMO database an example on this is found in the block "MAPPING_ACTIVE_STATE".
In the PLDBDEMO database an example on this is found in the block "MAPPING_ACTIVE_STATE".
In the PLDBDEMO database an example on this is found in the block "MAPPING_ACTIVE_STATE".
In the PLDBDEMO database an example on this is found in the block "COLMAPPING_PRICE".
In the PLDBDEMO database examples are found in the block "BMPMAPPING_LOC1" or "BMPMAPPING_MAT_NAME".
Set bitmap with condition (PDataMgr only)
In the PLDBDEMO database an example on this is found in the block "BMPMAPPING_PRICE1".
Background colors of columns (PARTdataManager and PARTlinkManager)
In order to group different kinds of ERP/PDM columns it makes sense to choose different background colors. See above.
[76] A detailed description of the 3Dfindit module from the user's point of view can be found at ENTERPRISE 3Dfindit - User in ENTERPRISE 3Dfindit - User.
A detailed description of the PARTdataManager module from the user's point of view can be found under Section 2.1, “ PARTdataManager ” in PARTsolutions - User.
